1500mm x 0.3mm Aluminum 4-HI Reversing Cold Rolling Mill (2007)

Brand
Not Specified

Model
Not Specified

Stock #
604958

Condition
Used

Year

Width 59 inches

Equipped With

Year: 2007

Material Data:

Input thickness 10mm (Max)
Output thickness: 0.3mm (Min)
Coil width 1500mm (Max)
Coil weight:9300kg (Max)
Coil OD: Max 1850mm
Coil ID:610mm

Complete With the Following Components:

Mandrel Uncoiler
Uncoiler tension:60KN
Motor: 250KW

Main Rolling Mill

Working roll size: 370x1750mm
Backup roll size: 980x1650mm
Rolling speed: 330m/min (Max)
Rolling force:12000KN

Recoiler
Motor: 500KW

X-ray Thickness gauge

Filtering System

Carbon dioxide fire extinguishing system

Main Transformer

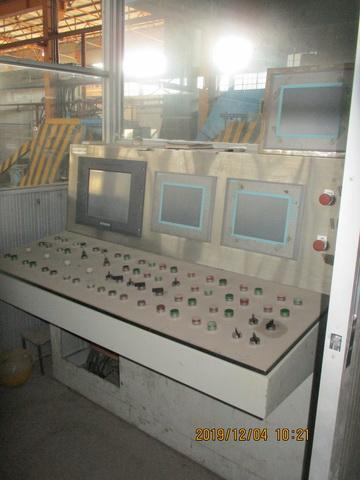

Electronic Control System

Main machine power: 1000KW (not include, already sold)

Spare Parts List:

Work Roll: 2 pcs
Back Up Roll: 1 pc
Universal Shaft: 2 pcs

Dismantled.
