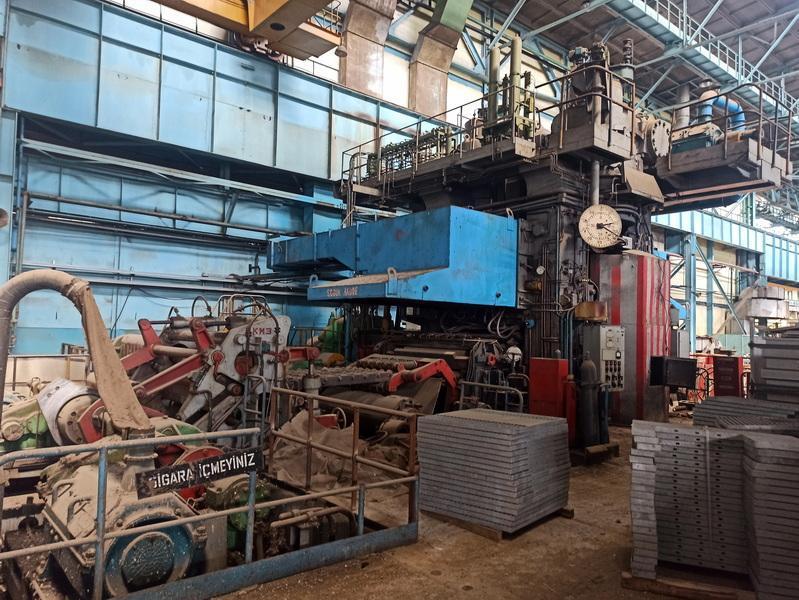

1500mm Aluminum 4HI Cold Rolling Reversing Mill

Brand
Not Specified

Model
Not Specified

Stock #
605210B

Condition
Used

Year

Equipped With

General Specifications:
Size of Incoming Coil
Strip Thickness: 6mm-12mm
Strip Width: 800mm-1560mm
OD Range: 1000mm-1400mm
ID: 750mm
Max Weight of Coil: 3500kg

Size of Finished Product
Strip Thickness: .4mm-5mm
Strip Width: 800mm-1560mm

Max Rolling Speed: 420m/min
Max Tension of Uncoiler: 5 Tons
Max Tension of Coiler: 25 Tons
Max Roll Separating Force: 2500 Tons
Max Rolling Torque: 45 Ton Meter

With the Following Components:
Entry Coil Magazine for Three Coils
Uncoiler
Pinch Rolls
Coiler
Coil Car
Pinch Rolls with Crop Shear
Thickness Gauge Installation
4HI Rolling Mill
Roll Changing Mechanism
Coiler
Oil Collector
