SPECIFICATIONS:
Finished Width: 38" to 39" (Depending On Width Of Blank Used: 40.5" to 41.375")
Total Coverage For Use Of Each Panel: 36"
Runs: 80 to 95 FPM
Electrics: 440/60/3
CONSISTING OF:
20,000 Lb. Model BKU-M1-01 Uncoiler:
Coil I.D.: 18-1/2" to 21-1/2"
Width: 42"
Hydraulic Expansion
Hydraulic Sliding Base
Air Brake
Hydraulic Rotation
Motor Data: 7.5 HP, 480 Volt

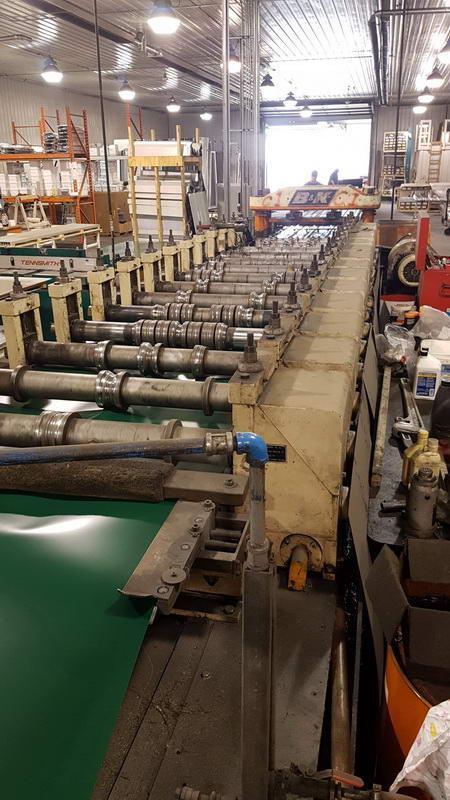

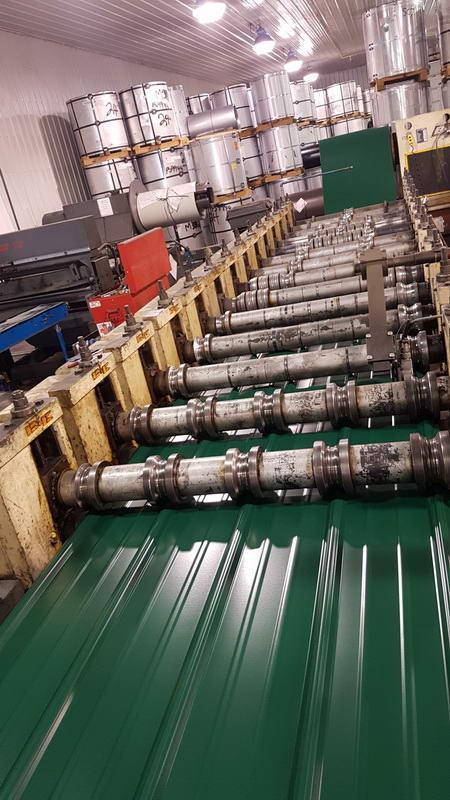

14-Stand B & K Model 2B-11 Roll Former:
Note: This is a 16 Stand Base
All Uppers are Idled (no gears or links)
Spindle Diameter: 3-1/2"
Roll Space: 42"
Vertical: 4-1/2" to 9-1/2"
Horizontal: 16"
Center Bottom Shaft To Bed: 7 1/2"
Width of Bed, Face of Gear Boxes to Outer Edge: 52"
EQUIPPED WITH:
Three Jog/Stop Electrical Boxes Along the Front of Base
WER Industrial D.C. Variable Speed Drive
Rotary Encoder for Measuring and Cutting to Length
Motor Data: 30 HP, 230/480/60/3
O.A.D.: 102" x 291" x 58" high

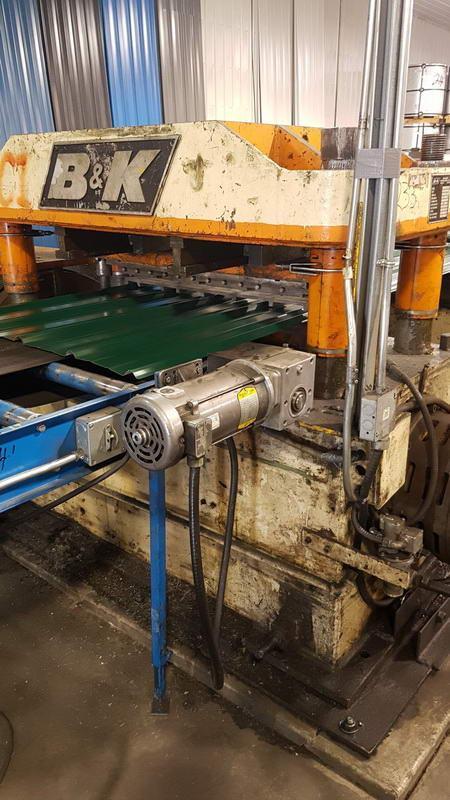

60 Ton B & K Model 4P-16-01 Flying Cut-Off Press:
4-Post Under Driven, SN 101
Capacity: 60 tons at 1/4" Off Bottom
Stroke: 3"
Shut Height: 11-1/2" to 14-1/2"
Cuts Per Minute: 30
Between Posts: 18" x 52"
33" Floor to Top of the Bed
Air Clutch & Brake
Induction Motor Data: 15 HP, 230/460/60/3, 1175 RPM
EQUIPPED WITH:
Flying type Cut-Off Die
AC Vari-Speed Drive With DC Clutch
Control Panel & Batch Input
Simultaneus 4-post Shut Height Adjustment
OVERALL DIMENSIONS:
Uncoiler - 10' x 5' x 6'6" High
Hydraulic Unit - 3' x 4' x 3' High
Roll Mill - 24' x 8' x 5' High
Cut-Off - 9' x 5' x 5'6" High
Control Panel - 5' x 2' x 5' High
36' Long (Uncoiler to Shear Cut-Off Press)
WEIGHT:
Uncoiler - 9,000 Lbs.
Hydraulic Unit - 2,000 Lbs.
Roll Mill - 30,000 Lbs.
Cut-Off - 8,000 Lbs.
Control Panel - 1,500 Lbs.
