1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
  • 1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
  • 1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
  • 1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
  • 1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line
  • 1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line

1100mm (45") x 3mm (.118") x 15 ton (30,000#) Inmasa Loop Dual Turret Slitting Line

Brand
Not Specified

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
605238

Condition
Used

Year

Request a Quote
Have one to sell?
Width 43 inches
Thickness .118 inches
Coil Weight 30000 pounds
Arbor Size 6.3 inches

Equipped With

Manufacturer: Inmasa

General Technical Specifications:

Thickness Range: 0.4mm to 3mm
Coil Weight Entry and Exit : 15 Ton
Max Coil Width: 1,100mm
Min Coil Width:150mm
Line Speed: 150 mpm

Material Specifications:

Shear Strength: 600 N/mm2
Yield Strength: 500 N/mm2

Line Direction:  Left to Right

Complete Line with the following Components:

Entry Pit Coil Car

Mandrel Uncoiler
Hydraulic Expansion
508mm /610mm Coil ID
1650mm Coil OD
Sliding Base
Hold Down Roll
Feed Up Drive

Powered Entry Edge Guides

Entry Pinch Rolls

Crop Shear

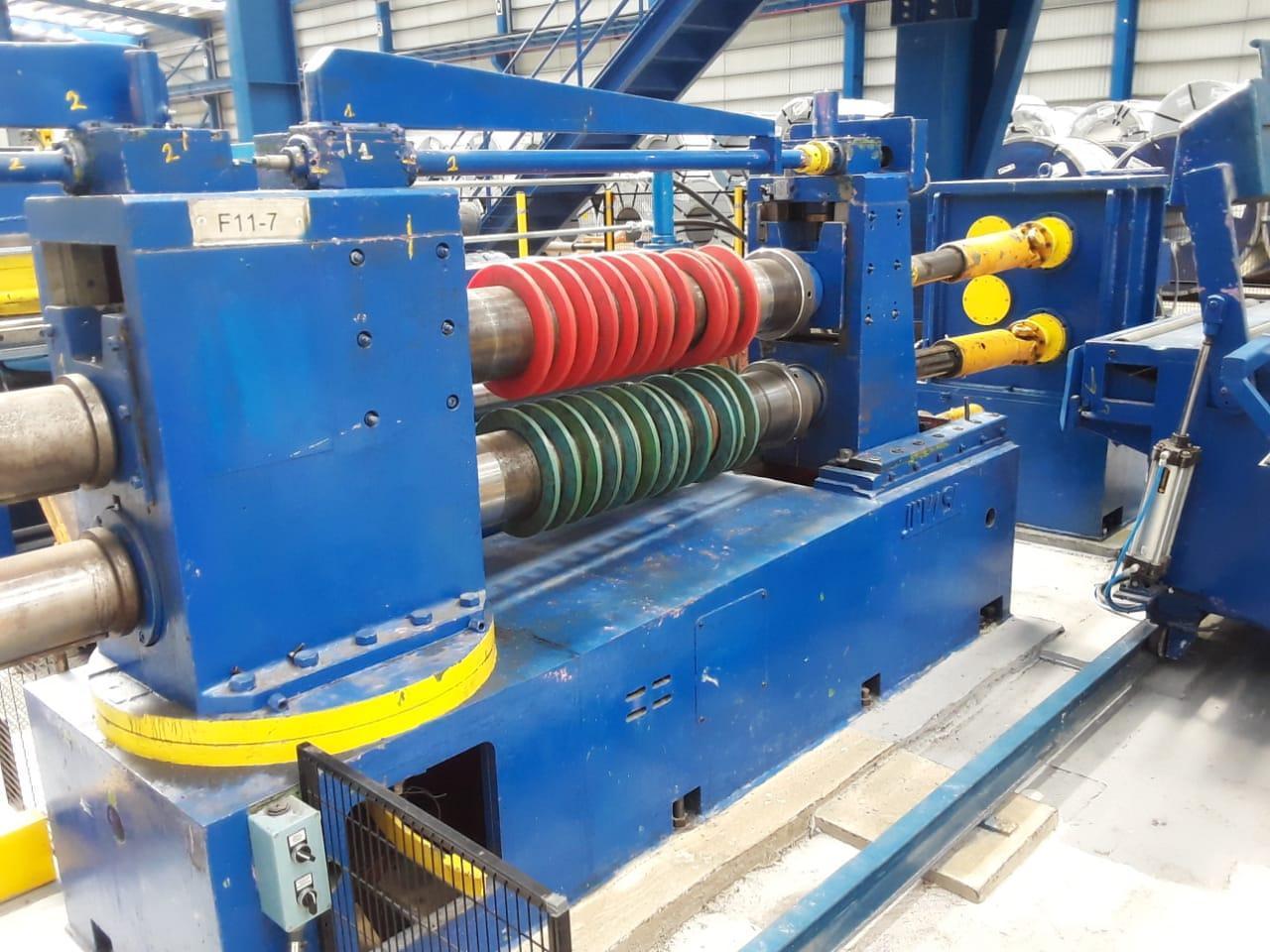

Dual Turret Style Slitting Head
Arbor Diameter: 160mm
Knives OD: 300mm

Pit Cross Over Table

Pad Type Tension Stand with Overarm Separator

Recoiler
508mm Coil ID
1550mm Coil OD
Full Hydraulic Drum
Push Off Plate

Pit Type Coil Car

2 Arm Exit Turnstile

Complete with Hydraulics, Controls, Electrics

Installed
