54 x .104" x 10,000# Dahlstrom Cut to Length Line

Brand
DAHLSTROM

Model
10A-48-1822

Stock #
605112

Condition
Used

Year

Coil Weight 10000 pounds
Width 54 inches
Thickness .104 inches
ID 22 inches
Max OD 60 inches

Equipped With

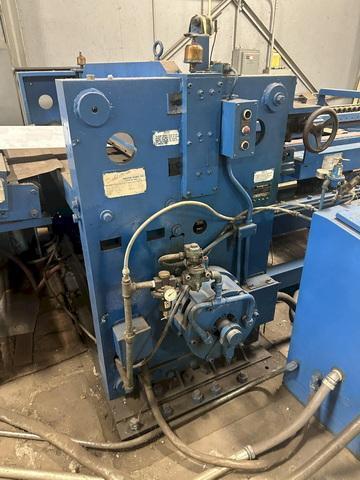

UNCOILER
MODEL: 10A-48-1822
SERIAL: R-400
CAPACITY: 10,000 LBS
WIDTH CAPACITY: 48"
COIL I.D. RANGE: 18" - 22"
COIL O.D.: 60"
HYDRAULIC EXPANSION: YES
MANDREL TO FLOOR HEIGHT: 63"
COIL CAR TO CENTER OF MANDREL: 30"

COIL CAR
CAPACITY: 10,000 LBS
LENGTH OF COIL CAR: 48"
FLOOR TO TOP OF COIL CAR: 33"
IN/OUT: YES
UP/DOWN: YES

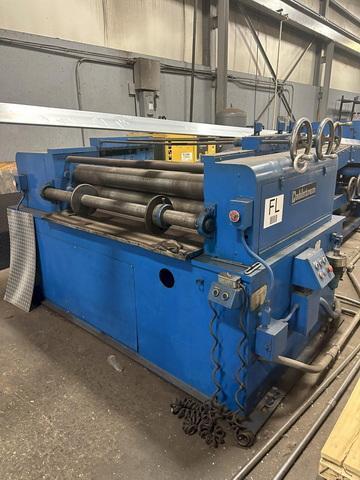

FLATTENER/LEVELER
MODEL: S48-12-10
SERIAL: S-400
CAPACITY: .022" - .104"
WIDTH: 48"
SPEED RANGE: 30 - 150 FPM
ENTRY PINCH ROLLS: YES
PINCH ROLL DIAMETER: 6"
# OF WORK ROLLS: 9, 4 OVER 5
WORK ROLL DIAMETER: 4"
MOTOR: 20 HP
VOLTAGE: 220/3/60

CROP SHEAR
MODEL: SH-48-12
SERIAL: SH-168
CAPACITY: .022" - .104"
WIDTH: 48"
FLYWHEEL SPEED: 375 RPM
STROKE: 1"
MOTOR: 15 HP

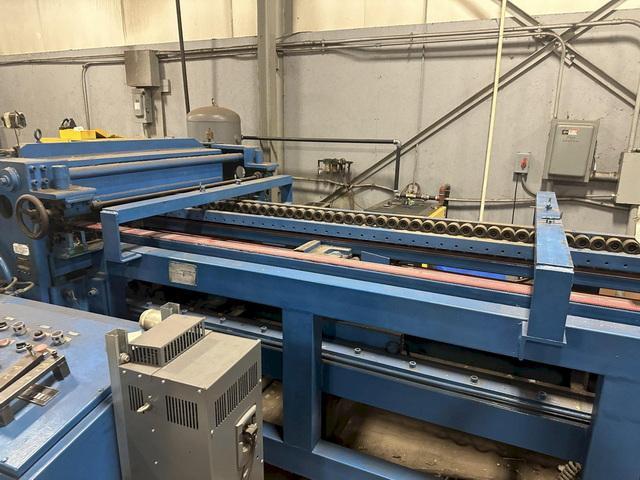

STACKER
MODEL: M-1248-6192-12
SERIAL: M-374
LENGTH CAPACITY: 6" - 192"
WIDTH CAPACITY: 12" - 54"
CAPACITY: .022" - .104"
SPEED RANGE: 50-250 FPM
MOTORS: 2 HP & 3 HP
