Manufacturer: Waterbury Farrel Co
Reduction Capacity: .005" Each Pass
Non-Reversing Design
Complete with the Following:

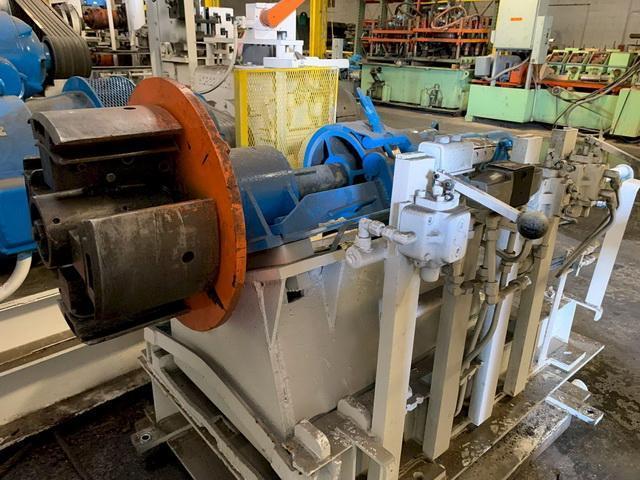

Mandrel Uncoiler
Hydraulic Expansion
16" (406mm) to 20" (508mm) ID
60" (1500mm) OD
Sliding Base

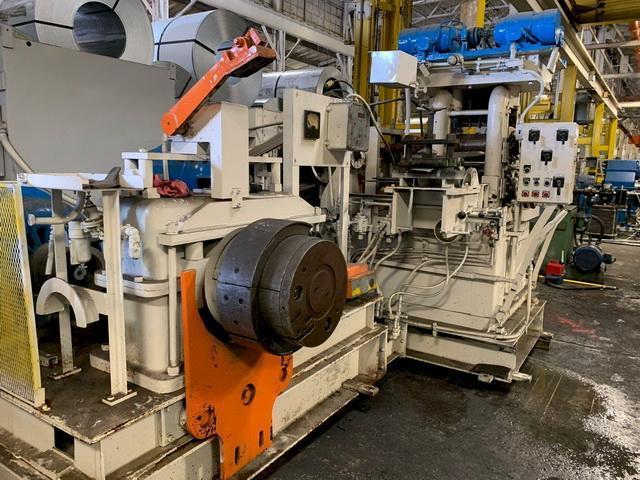

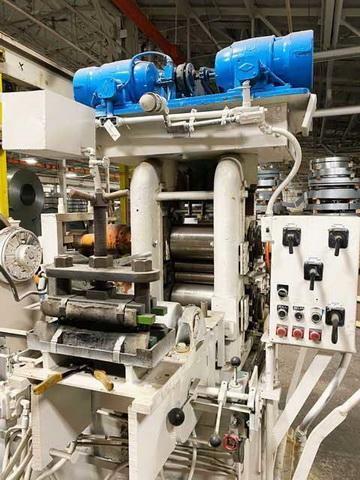

Mill Stand

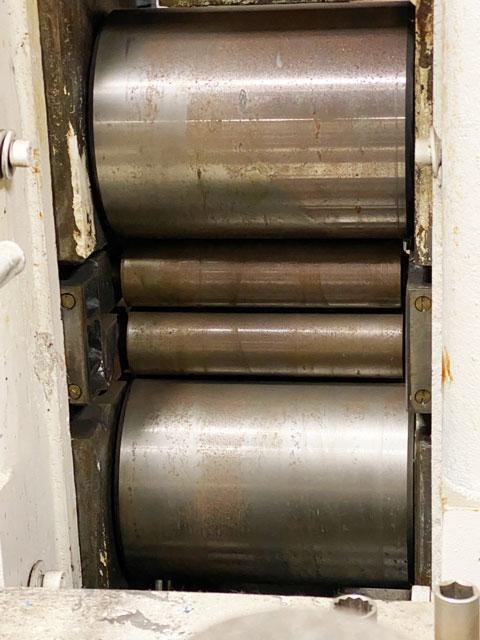

4-HI Configuration
Mill Traction by Driven Back Up Rolls
2 1/2" (63.5mm) Diameter Work Roll
10" (254mm) Roll Face
8" (203mm) Diameter Back Up Roll
10" (254mm) Back Up Roll Face
40 HP AC Motor Drive
Motorized Screw Downs
Recoiler
16" (406mm) to 20" (508mm) ID
11" (280mm) Drum Face
60" (1500mm) OD
Hydraulic Drum
40HP AC Motor Drive

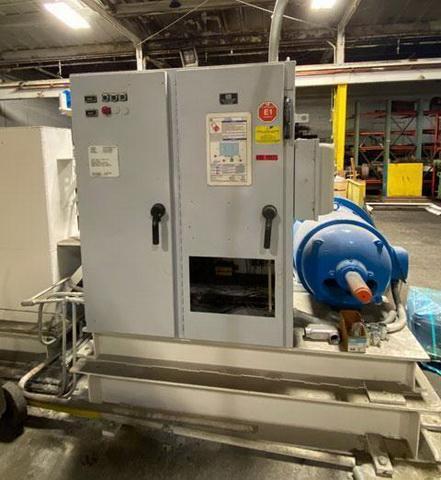

Complete with Controls
