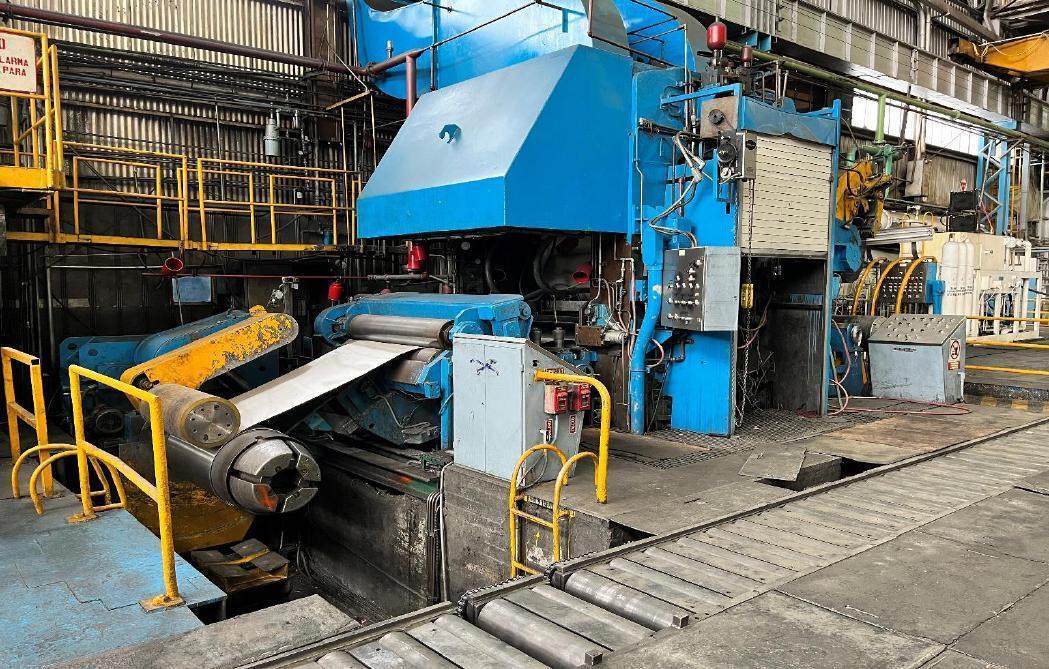

1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
  • 1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
  • 1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
  • 1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill
  • 1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill

1100mm (43") x 0.25mm Exit Spidem 4-HI Aluminum Reversing Cold Rolling Mill

Brand
SPIDEM

Model
Not Specified

Type
Rolling Mills, 4-HI

Stock #
605247

Condition
Used

Year

Request a Quote
Have one to sell?
Width 43.33 inches

Equipped With

• 14” (355mm) x 30” (762mm) x 43.3” (1100mm)
• Manufacturer: SPIDEM
• Thickness measurement NDC
• AGC and AFC Automation by Fata Hunter in 2016

Technical Specifications:
• Width min-max: 500mm – 1100mm
• Entry Thickness: 8mm
• Exit Max/Min Thickness: 4mm - 0.25mm
• Line Speed: 300 mpm max
• Max Coil weight: 6000 Kg

Mill Data:
• Work Roll Face: 1100mm
• Work Rolls Diameter: 355mm
• Back Up Rolls diameter: 762mm
• 750 kW Motor Drive

Uncoiler Data:
• Coil ID 610mm
• Coil OD 1650mm
• 2 x 37 kW Motor Drive

Recoiler Data
• Coil ID: 610mm
• Coil OD: 1650mm
 2 x 185 kW Motor Drive

• Control System H by Fata Hunter
• NDC X Ray Thickness Measurement
• Shapemeter
• Complete Controls, Electric & Hydraulics
• Exit to Entry Coil Conveyor System
• Edge Trimmer & Chopper
• Belt Wrapper

Available Rolls & Spare Parts
• Steel cores
• Chemetron CO2 fire fighting system
• Schneider Filtration System

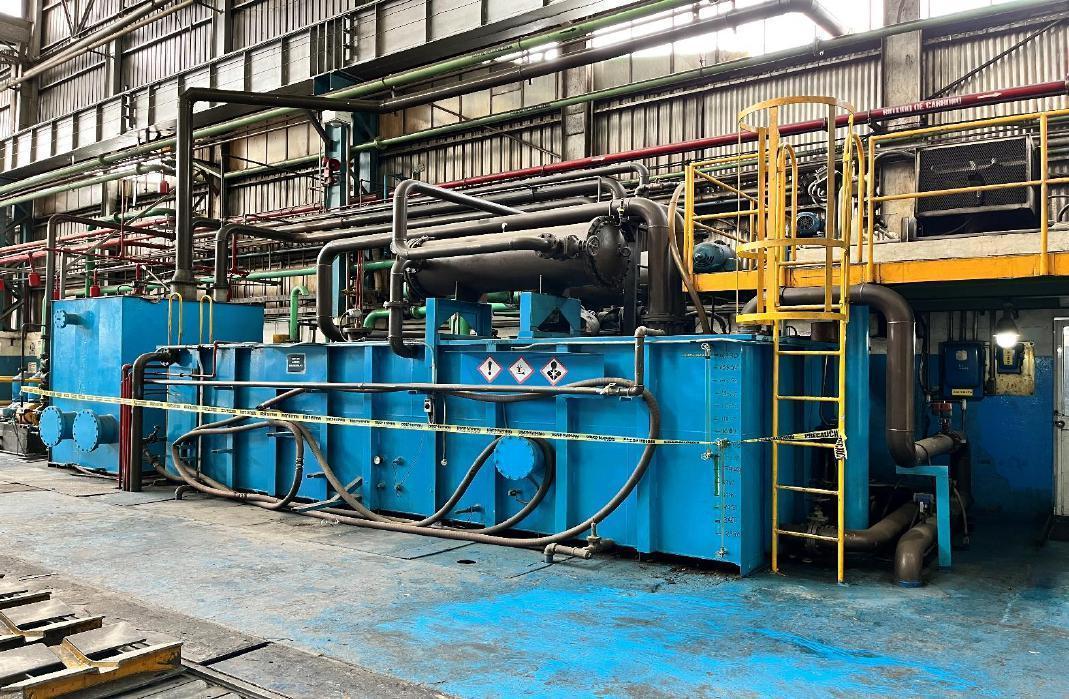

• Coolant System

Installed and Running
