Equipped With
Maker: ZAPPA/SIEMAG
Year: 1984/2006
General Specifications:
Strip Width Range: 400mm –1550 mm
Strip Thickness Range: 0.4mm-3mm
No. of slits/strip thickness: 30 cuts of 0.6 mm, 10 cuts of 2.5 mm
Slit Strip Width Min.: 30mm
Max Tensile Strength: 420 N/mm²
Max Coil OD: 1800mm
Max Coil Weight: 25T
Max Speed: 150 m/min
Line Direction: Left to Right
The line consists of:
coil car underfloor
decoiler with hold-down arm, shifting base plate and mandrel support mandrel
expansion hydraulic
hold-down arm hydraulic
hold-down roller driven
transversal movement hydraulic
mandrel support hydraulic
trip centering control EMG
coil opener/pinch roll unit/crop shear
telescopic table hydraulic
No. of pinch rolls 2
quick lifting pinch rolls hydraulic
crop shear hydraulic
carry-over table

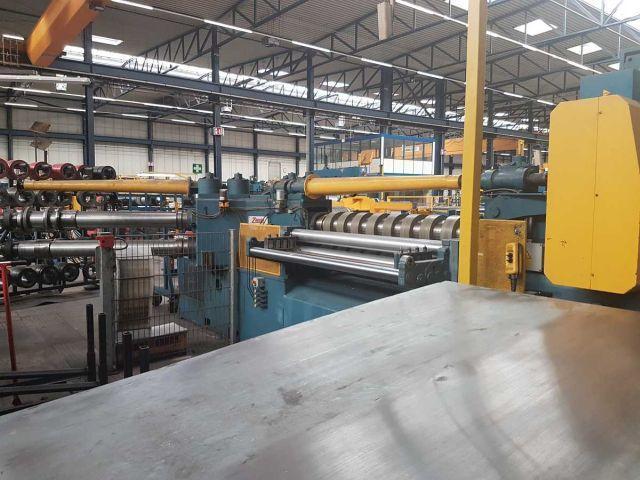

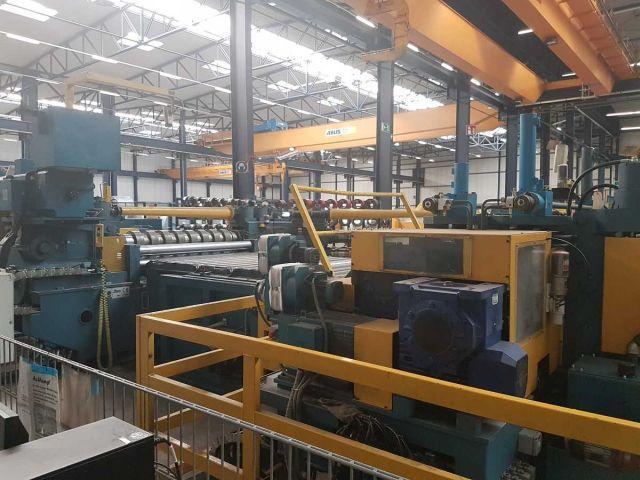

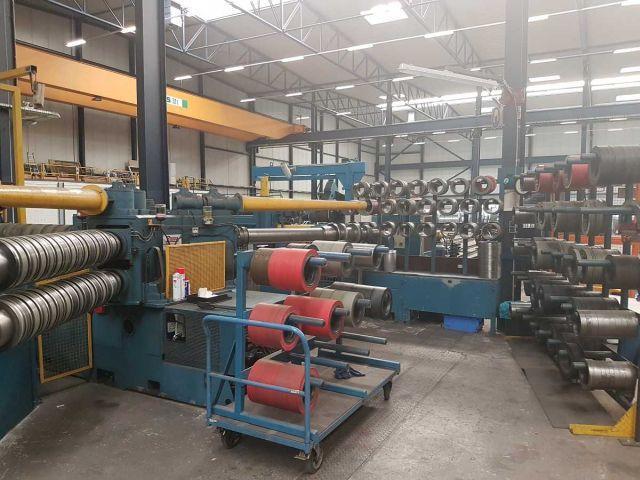

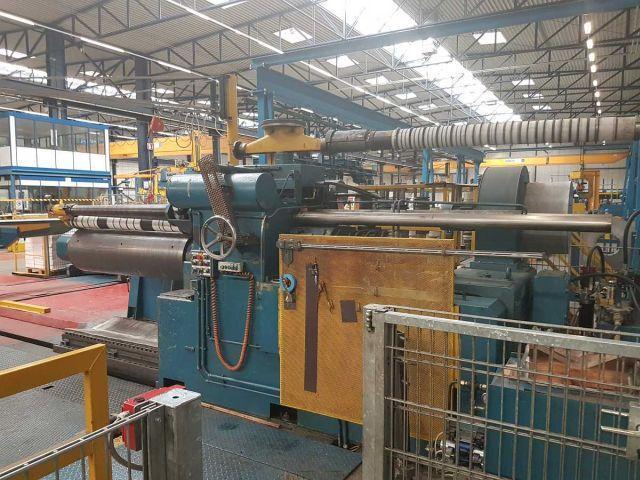

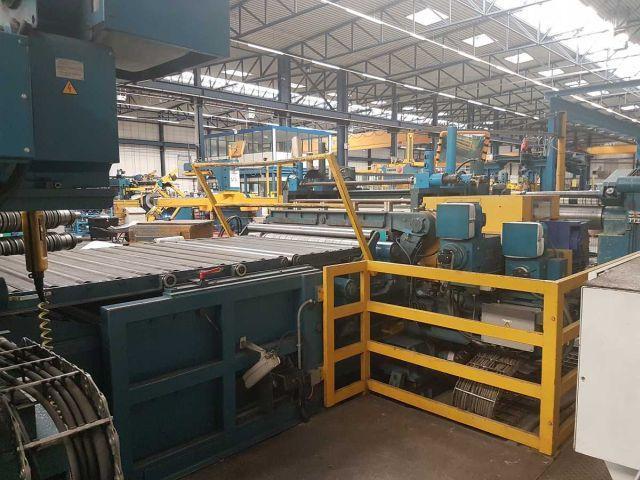

slitting stand with turnstile for changing set of blades
blade shaft 180 mm
blade 275 mm
blade clamping hydraulic nuts
blade shaft adjustment electromechanical
main drive 75 kW
No. of changing places 3
movement hydraulic/manual
scrap baller
scrap width 5 - 40 mm
looping pit equipment with carry-over car
felt brake pneumatic
roller brake
pinch rolls 2
crop shear hydraulic
oil unit 0,5 - 3 g/cm²

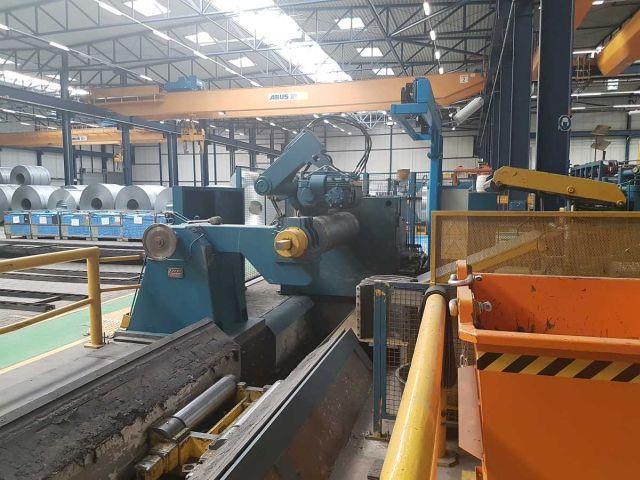

recoiler with separating shaft and stripper plate
mandrel 508/610 mm
expansion/clamping hydraulic
separating arm hydraulic
stripper plate hydraulic
main drive 95 kW
coil car underfloor

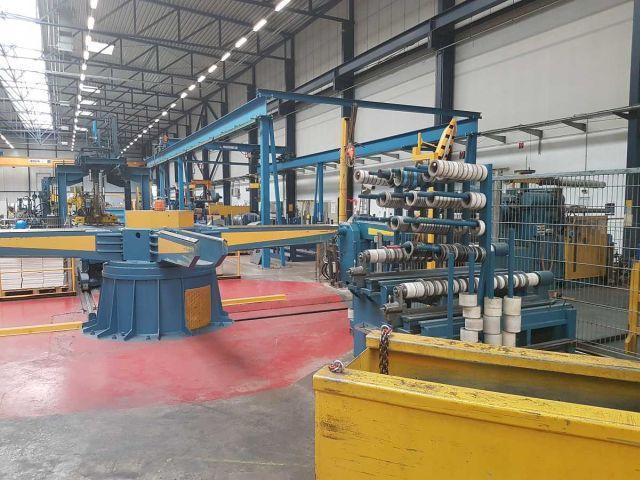

turnstile 4 arms
downender hydraulic
centering roller table

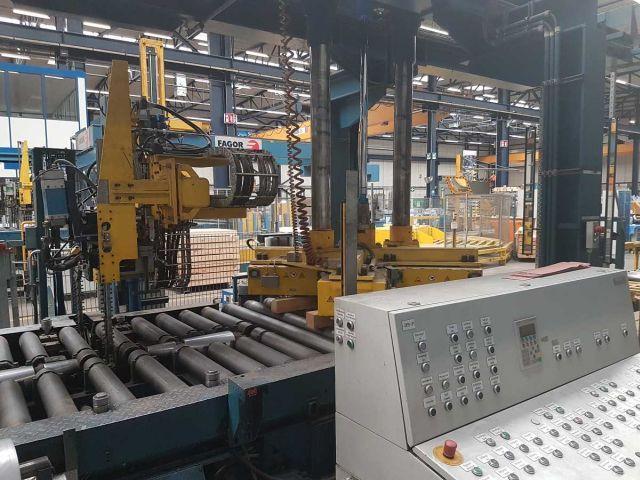

banding station semi-automatic
strip clasp 2 welding spots
No. of straps 1 - 4
magnetic lifter

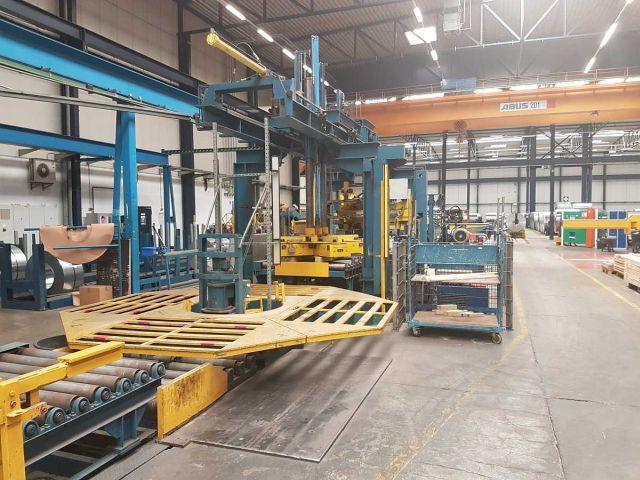

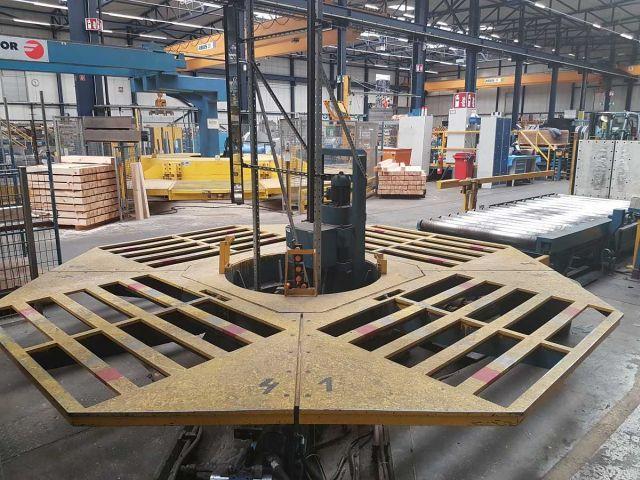

carrousel 4 places

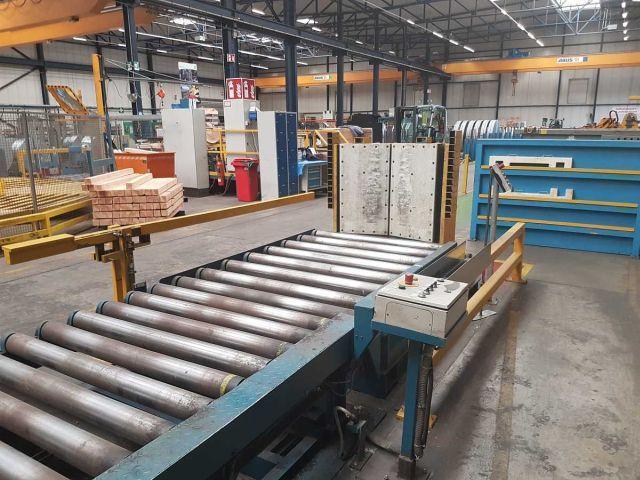

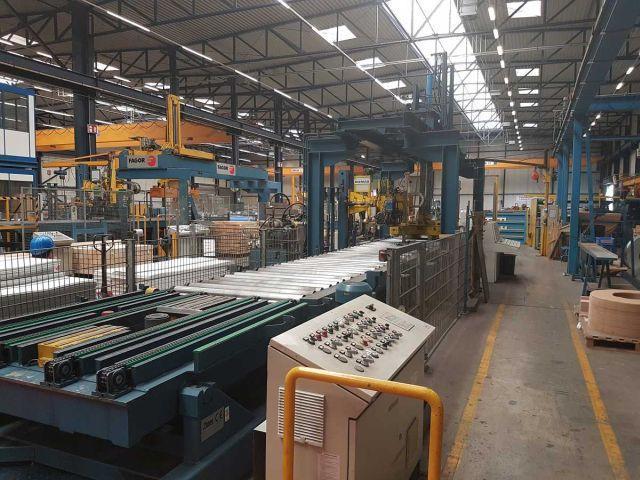

exit roller table and weighing roller table
tilting table
electrics Siemens S7
