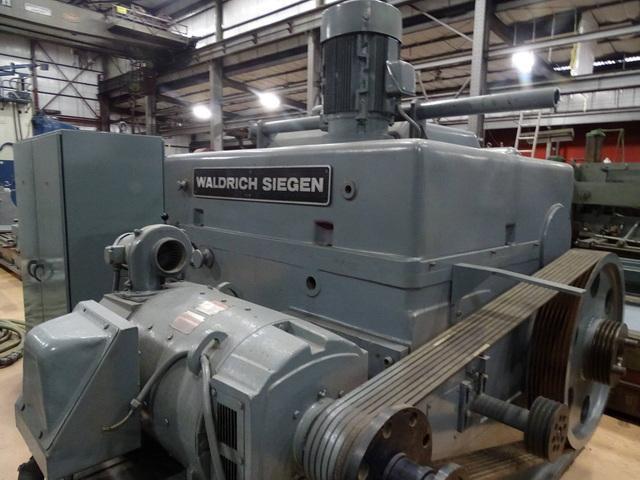

Manufacturer Waldrich Seigen
Model WST IV H80 x 12000
Serial Number 12547
Year 1981 / Installed 1982
Maximum Grinding Diameter 78.00 in 1981.20 mm
Distance Between Centers 472.40 in 12000.00 mm
Maximum Workpiece Weight 176000.00 lbs 80000.00 kg
Wheel Width Maximum 4.00 in 100.00 mm
Wheel OD Diameter 32.00 in 812.80 mm
Wheel ID 12.00 in 305.00 mm
Wheelhead Angle 90 Degrees To Workpiece Axis
Wheel Spindle Power 27 - 59/59 HP 20 - 44/44 kW
Wheel Spindle Speed 450 - 1800 RPM Infinitely Variable
Wheel Dresser Bed Mounted Roll
Wheelhead Cross Travel 25.60 in 650.00 mm
Wheelhead Longitudinal Travel 488.40 inch, 12405 mm
Wheelhead Speed 157.5 inches/min, 4000 mm/min
Workhead Power 1.9 - 59/59 HP 1.4 - 44/44 kW
Workhead Speed .5 - 300 RPM
Sludge Conveyor None
Coolant Yes
Filtration System Combination 2 Cartridge And Fabric Filter
Ways Cast Iron Full Hydrostatic
Way Covers Metal Telescopic
Power Existing
Additional Waldrich Siegen 4 in (100 mm) width roll belt grinding attachment, roll cambering / crowning, range of table setting for camber / convex: .0005 - .292 mm, range of table setting for camber / convex / and concave .0004 - .1024 mm, range of table setting for camber based on radius: .0039 - .1496, 2 - 2 jaw steady rests: diameter range 7.88 - 20 in (200 - 510 mm), cross adjustment of steady rests: 23.6 in (600 mm)
