Equipped With
Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness: .500 " maximum, .060" minimum
Strip Width: 72" max., 24" min.
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors

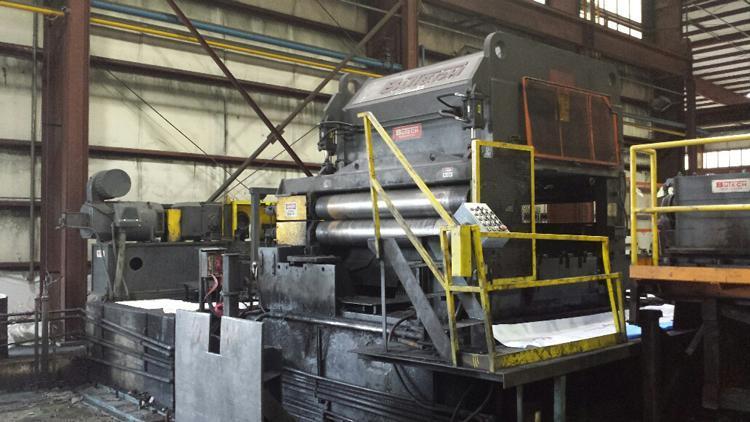

Butech Precision Roller Leveler with Quick Change

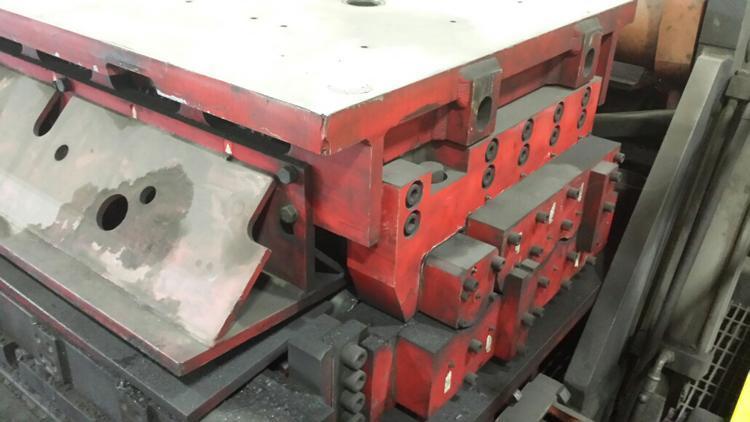

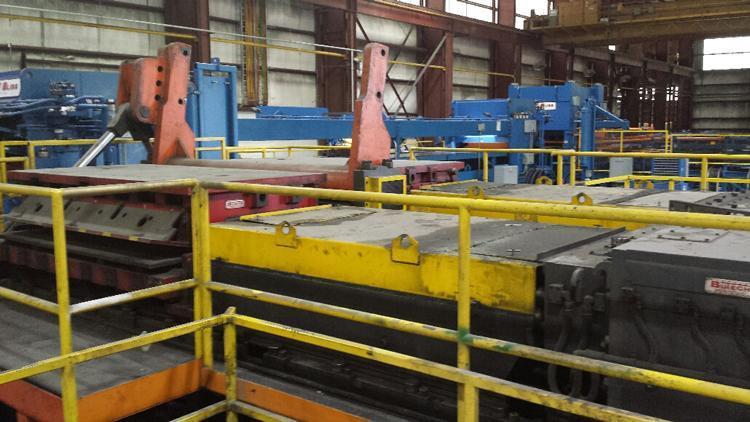

Roll Nest Cassettes and Floor Mounted Injector System
(11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .500" maximum, .125" minimum
(17) Roll Light Gauge Cassette Specifications:
Work Roll Quantity: 17, 8 up, 9 down
Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: 0.200" max., .060" min.
OVER ONE MILLION DOLLARS IN SPARE PARTS
including work rolls and back up rolls for each cassette
