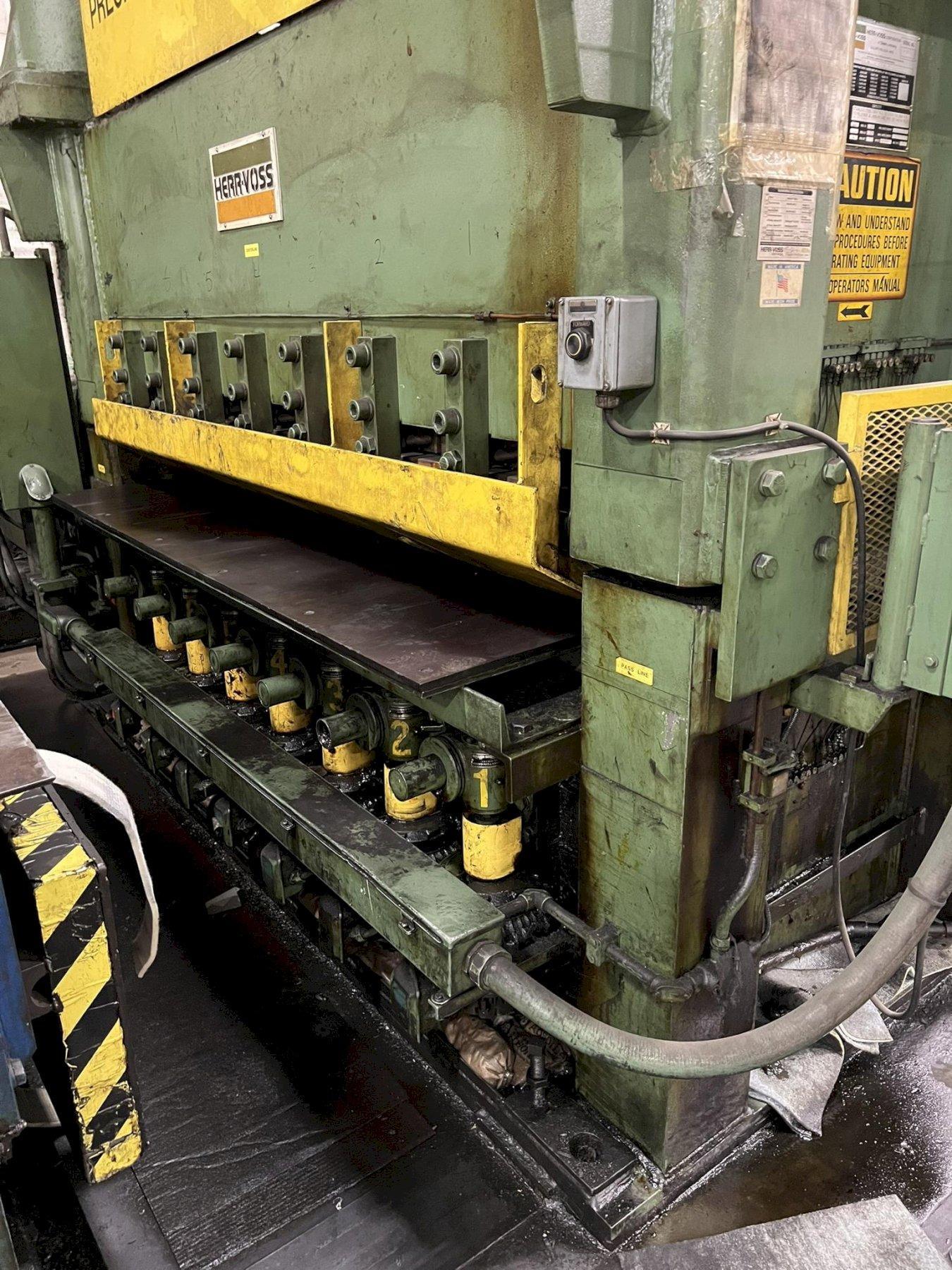

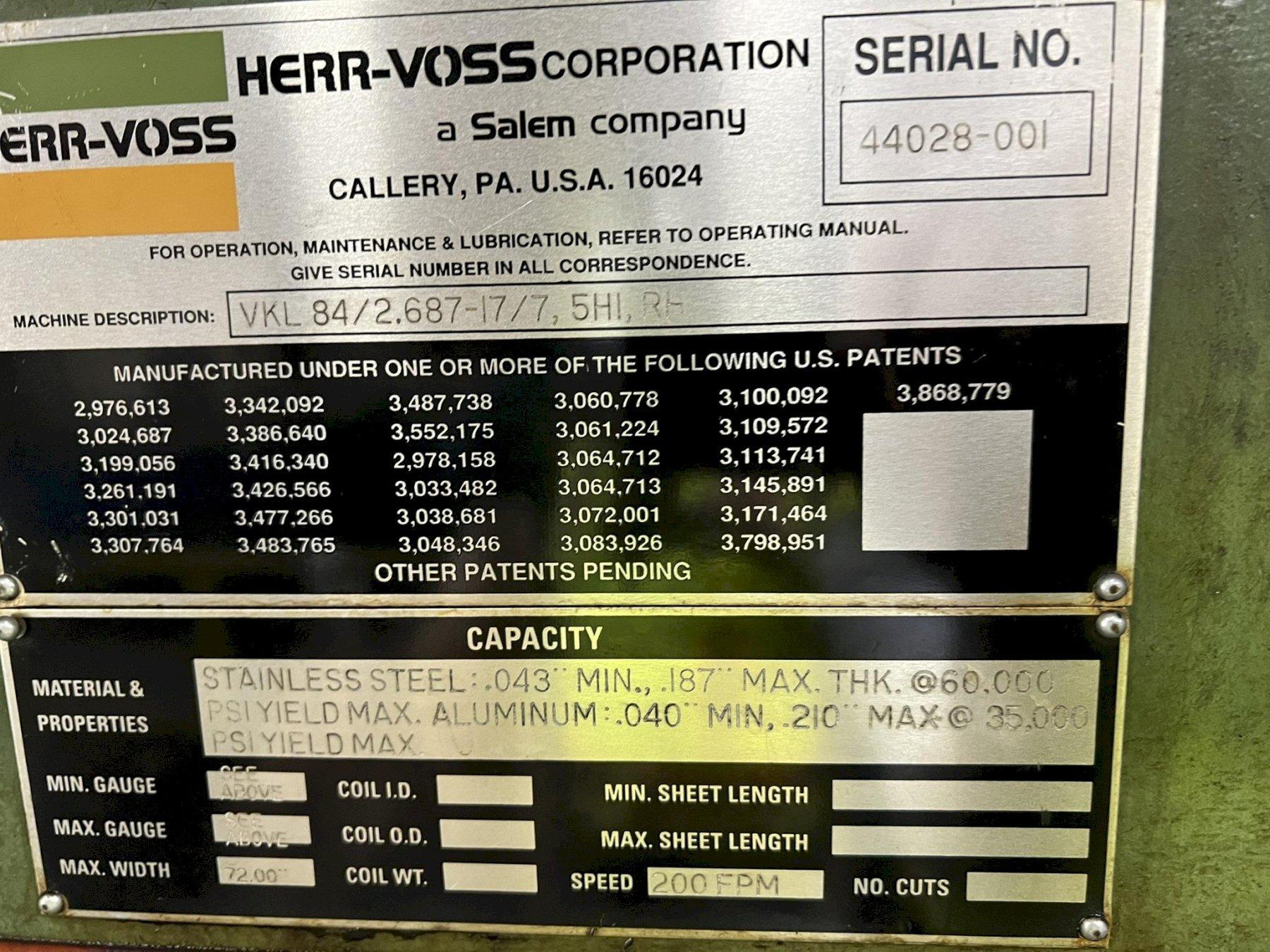

Model VKL 84/2.687-17/7 5HI RH
Year 1996
Thickness Range: .043" - .187" Stainless & Carbon Steel @ 60,000 PSI Yield
.040" - .210" Aluminum @ 35,000 PSI Yield
Width: 18" - 72"
Work Roll Diameter: 2.687"
Roll Face: 84"
Work Rolls: 17 (8 over 9)
7 Flights of Top & Bottom Back-Up Rolls
7 Bottom Flights Motorized Individual Motorized Adjustments

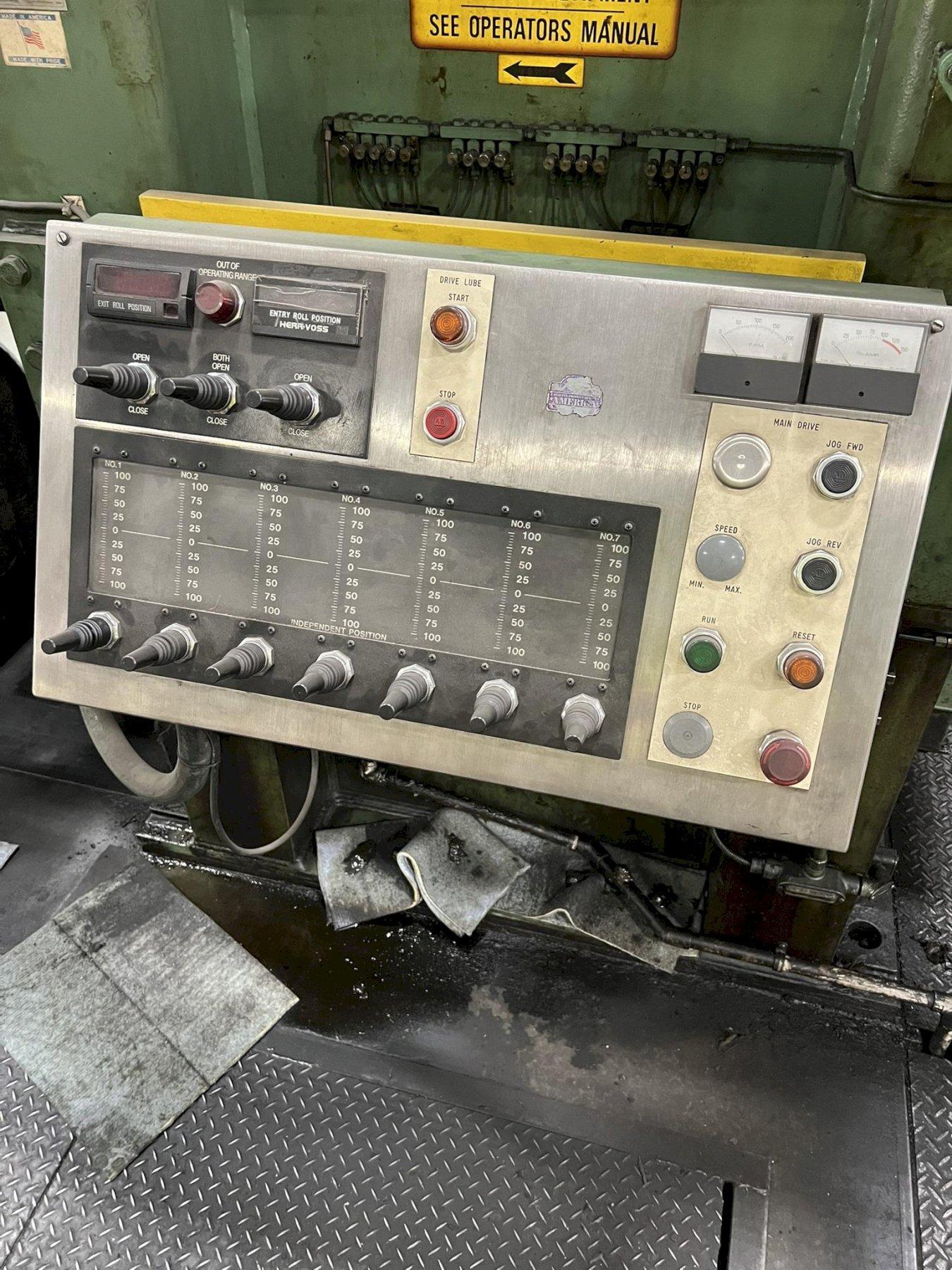

Digital Back-Up Roll Positioning
Motorized Open & Close
Motorized Tilt
150 HP DC Drive

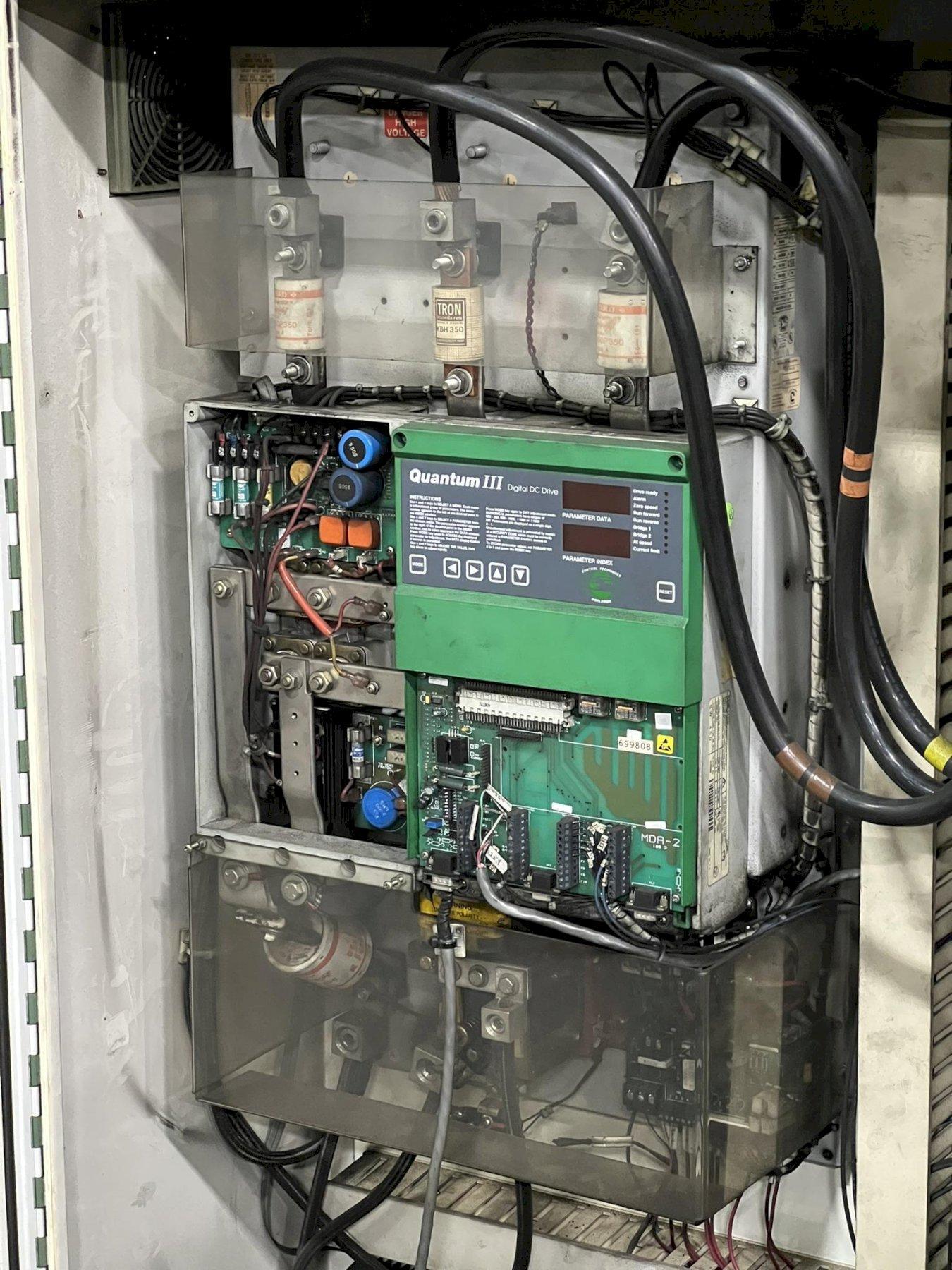

Mentor lll Control Techniques Digital Drive
Line Direction Right to Left
