72" Pro Eco / SMS Tension Leveler New 2007
Never Installed Brand New

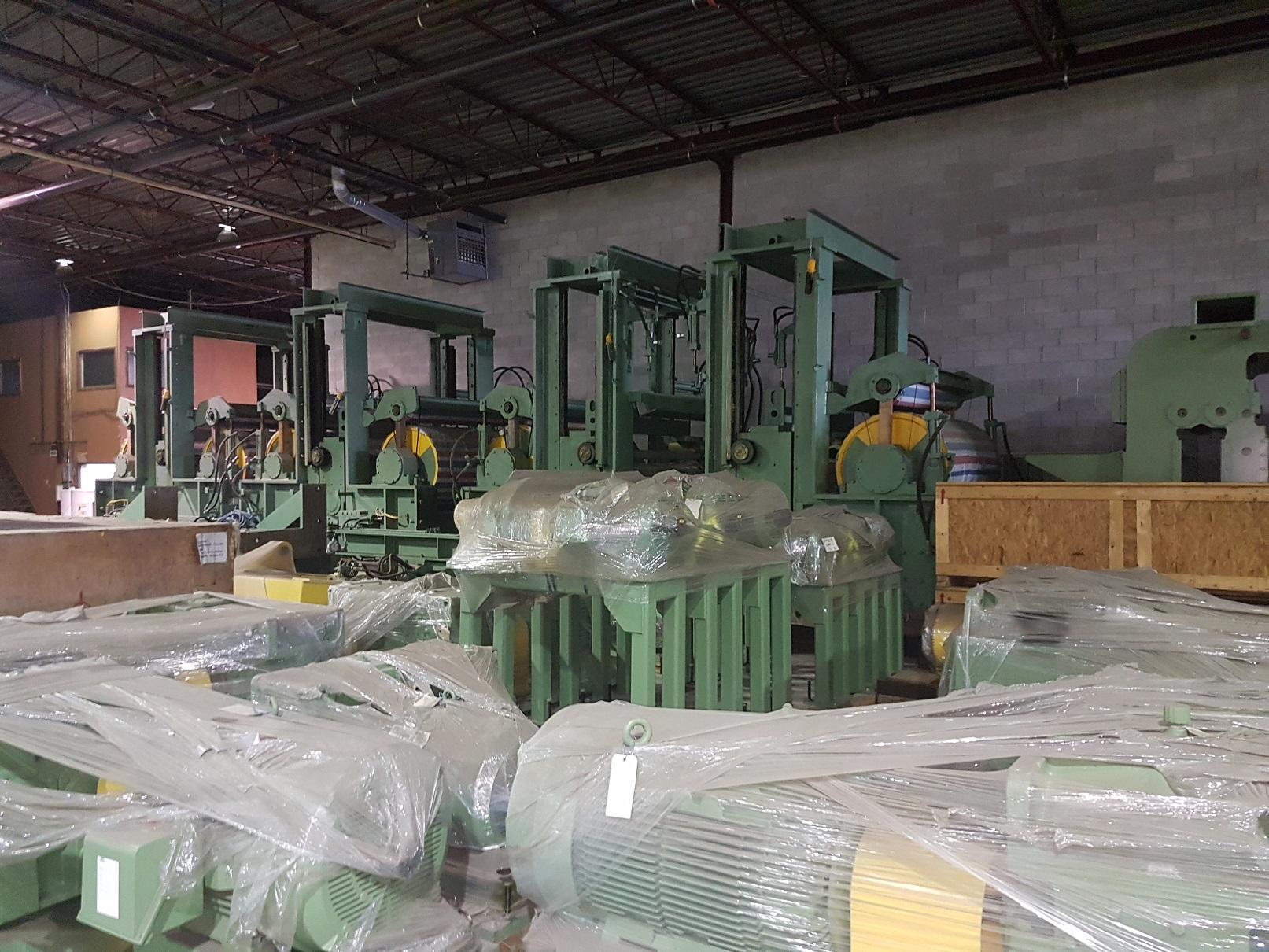

Tension Leveler Only with Entry & Exit Bridles, Leveler and Drives with Motors
72" Max Coil Width
Carbon Steel Capacities:
Strip Size, in |
Yield Strength, psi |
Elongation Rate, % |
48 x 0.110 |
86,000 |
0.5 |
60 x 0.060 |
80,000 |
1.75 |
66 x 0.080 |
50,000 |
3.0 |
72 x 0.070 |
60,000 |
1.5 |
72 x 0.170 |
40,000 |
1.5 |
72 x 0.250 |
40,000 |
0.8 |
72 x 0.140 |
50,000 |
1.25 |
72 x 0.0060 |
70,000 |
1.75 |

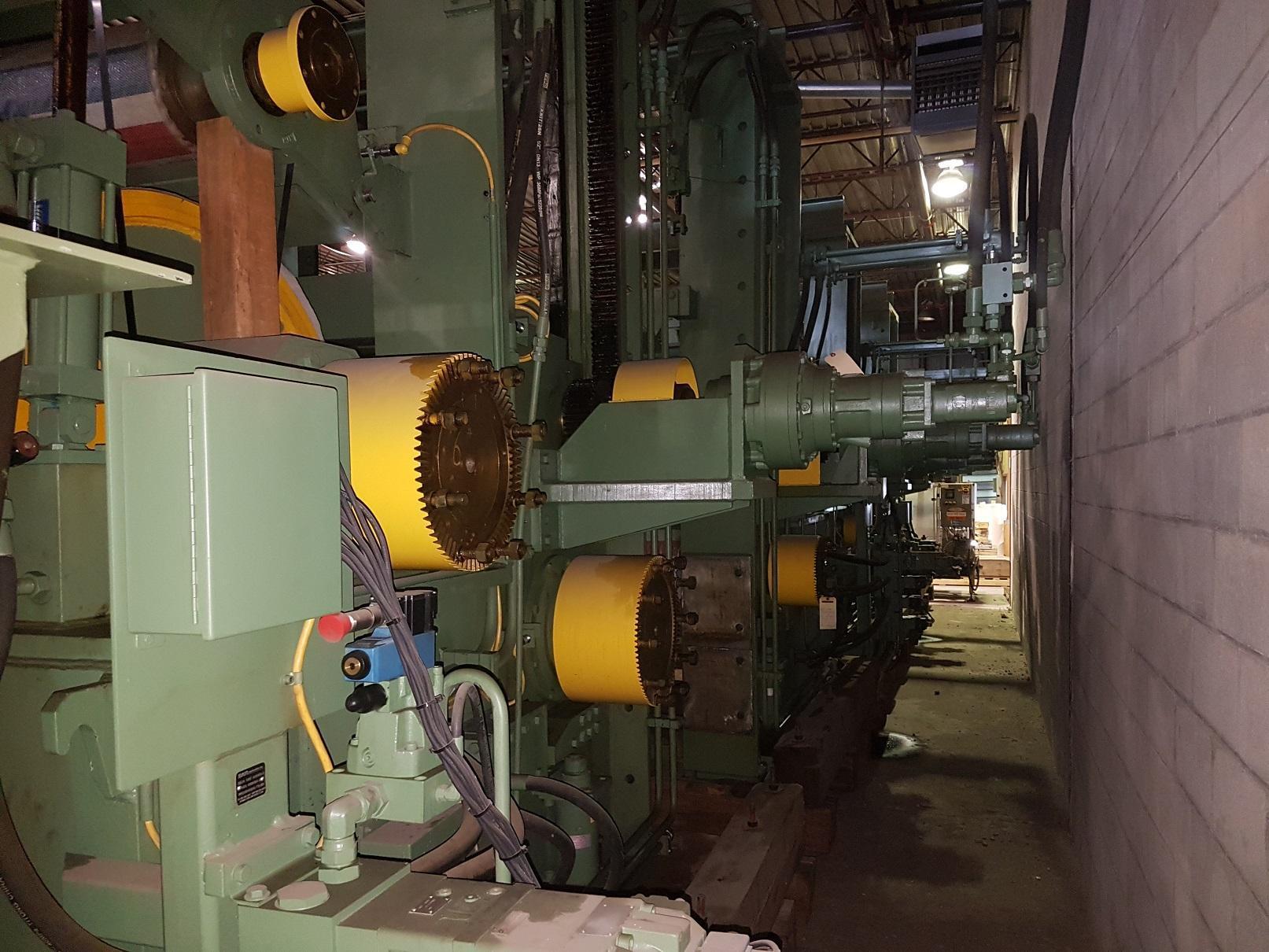

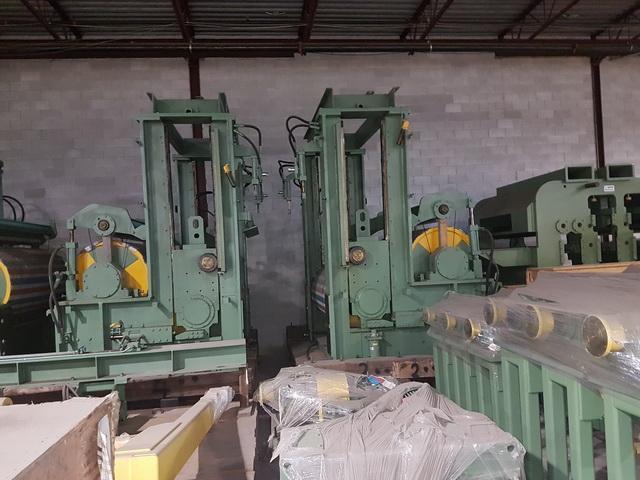

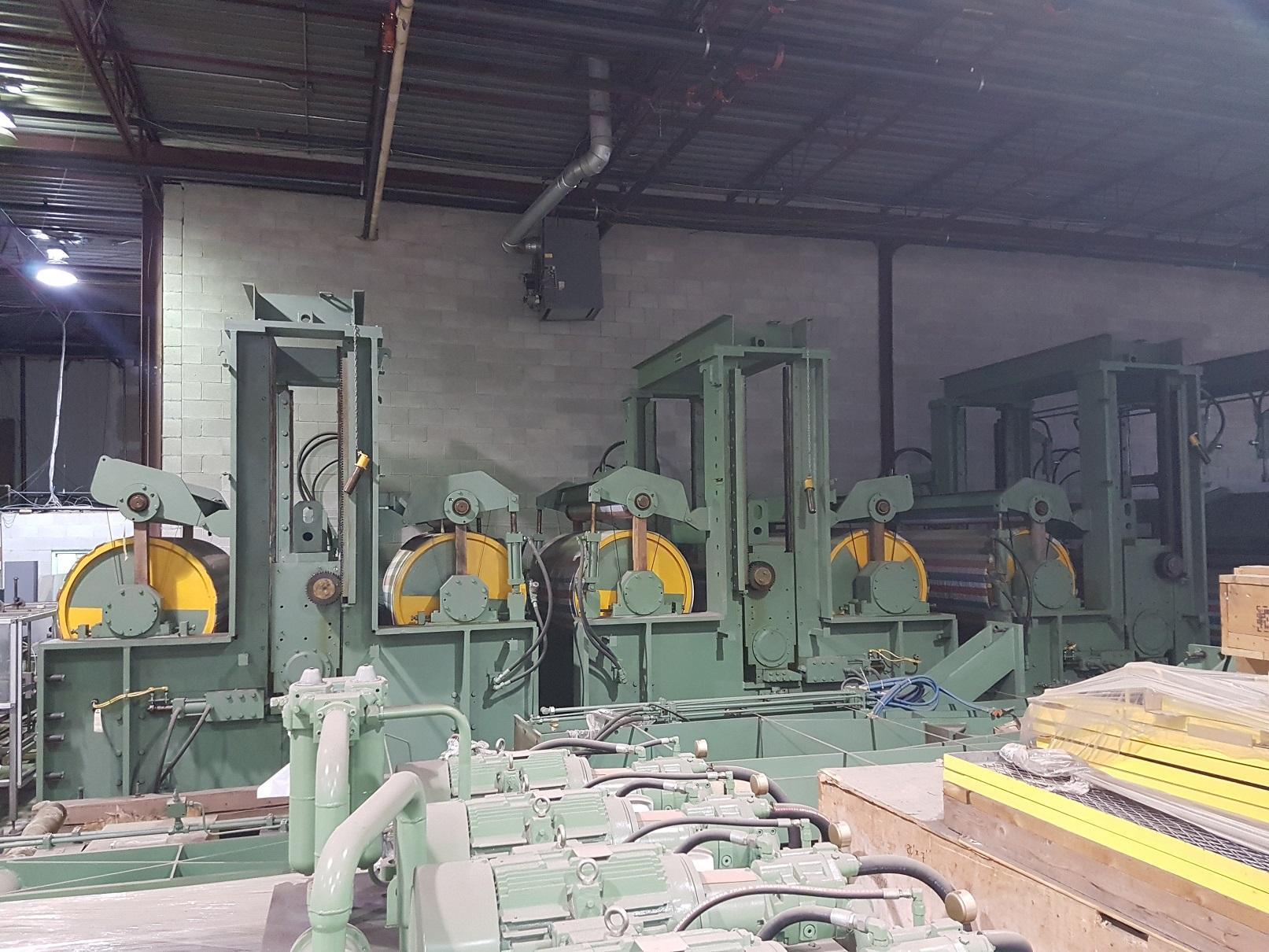

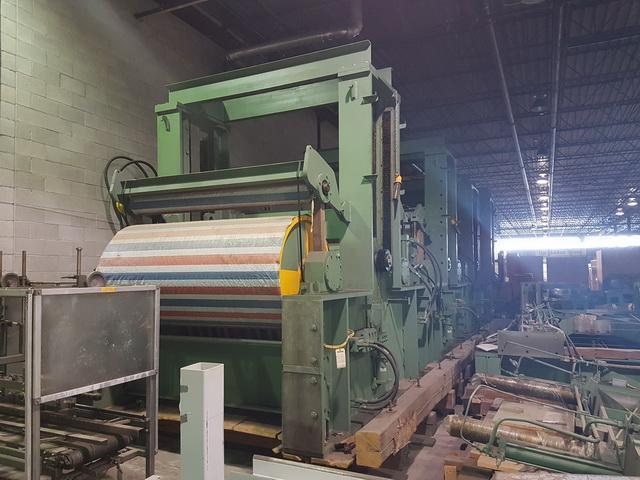

Entry 5 Roll Tension Bridle Unit
42" Dia Bridle Rolls
AC Vector Drives

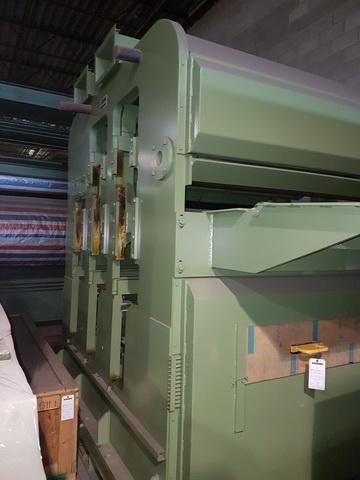

Tension Leveler
2 x Preflex Rolls 1.75" Diameter
Anti Cross Bow Roll 3" Diameter
Back-Up Roll 2.91" Diameter
Exit 5 Roll Tension Bridle Unit
Total HP - 1525 AC Vector Drives
Digital Drives with PLC Controls
