Equipped With
General Specifications:
Thickness Range: .016"-.196" (.4mm-5mm)
Width Range: 20"-72"
Max Coil Weight: 55,000# (25,000kg)
Coil ID: 20" (508mm) with rubber sleeve 24" (608mm)
Coil OD Range: 32"-78" (800mm-2000mm)
Line Speed: 32-650ft/min (10-200m/min)
Line Direction: Left to Right
Complete with the Following Components:
Coil Staging Area
Entry Pit Type Coil Car

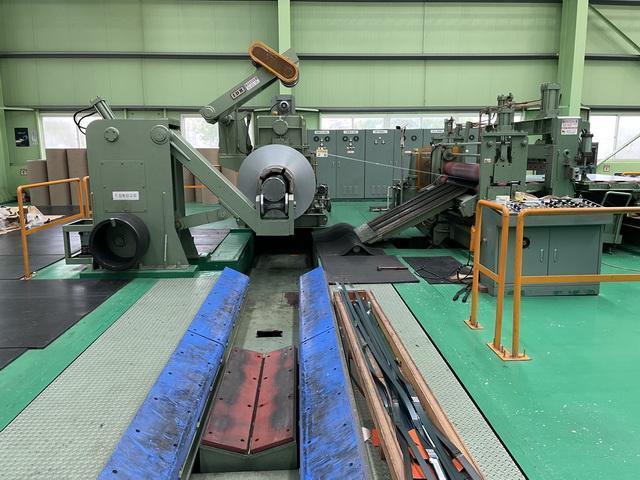

Uncoiler with Hold Down Roll and Outboard Support Arm
Peeler Table
Entry Flattener
Entry Crop Shear
First Looping Pit with Pit Crossover Table
Edge Guides
Pinch Roll
Slitter Head
Scrap Baller
Second Looping Pit with Crossover Table
Tension Stand

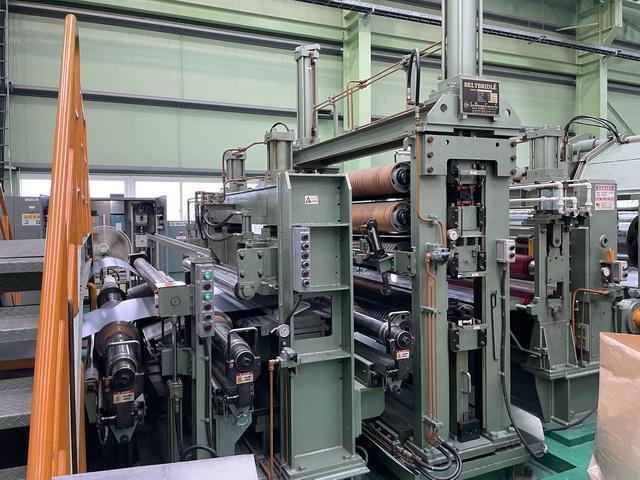

Belt Bridle
Pinch Roll
Exit Crop Shear
Bridle Roll with Guide Table

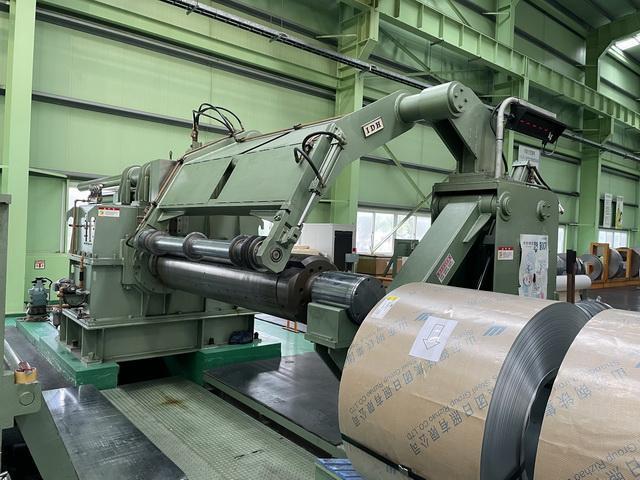

Recoiler with Overarm Separator and Outboard Support Arm
Exit Pit Type Coil Car
Two Arm Turnstile
