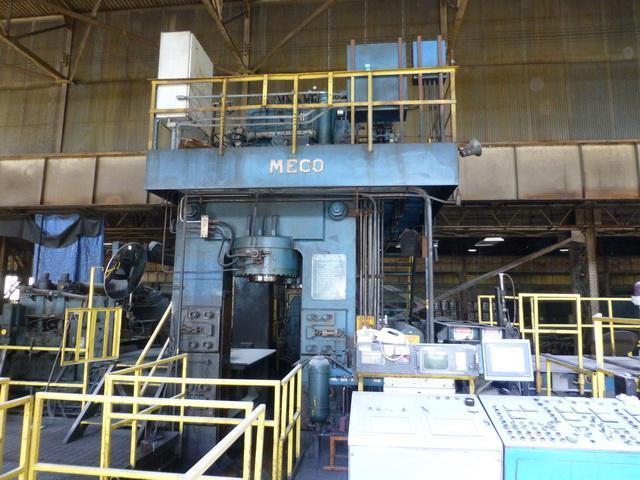

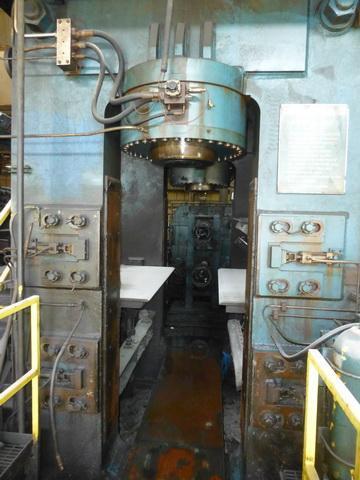

Manufacturer: MECO
Roll Bending Roller Bearing Roll Changing Sled Hydraulic Screw DownsGeneral Specifications:
Number of Stands: 1
Configuration: 2HI Non-reversing
Housing Post Size: 28" x 18"
Housing Cross Section: 504in^2
Coil Width Range: 24"-72"
Thickness Range at 72": .060"-.375"
Thickness Range at 48": .060"-.500"
Line Speed: 150-300 FPM
Line Direction: Right to Left
Work Roll Face: 80"
Work Roll Diameter: 38"
Motor Stand: 400HP, Original Design, 300/1050 RPM (motors are not included in the sale)
Combination Pinion: H&S Size 220 D.P.S.; 19.60:1 Ratio, 820 RPM 1.58 SF
Pinion Centers: 42"
Number of Spindles: 2
Bearing Type: Roller
Roll Bending: Outboard Bearing

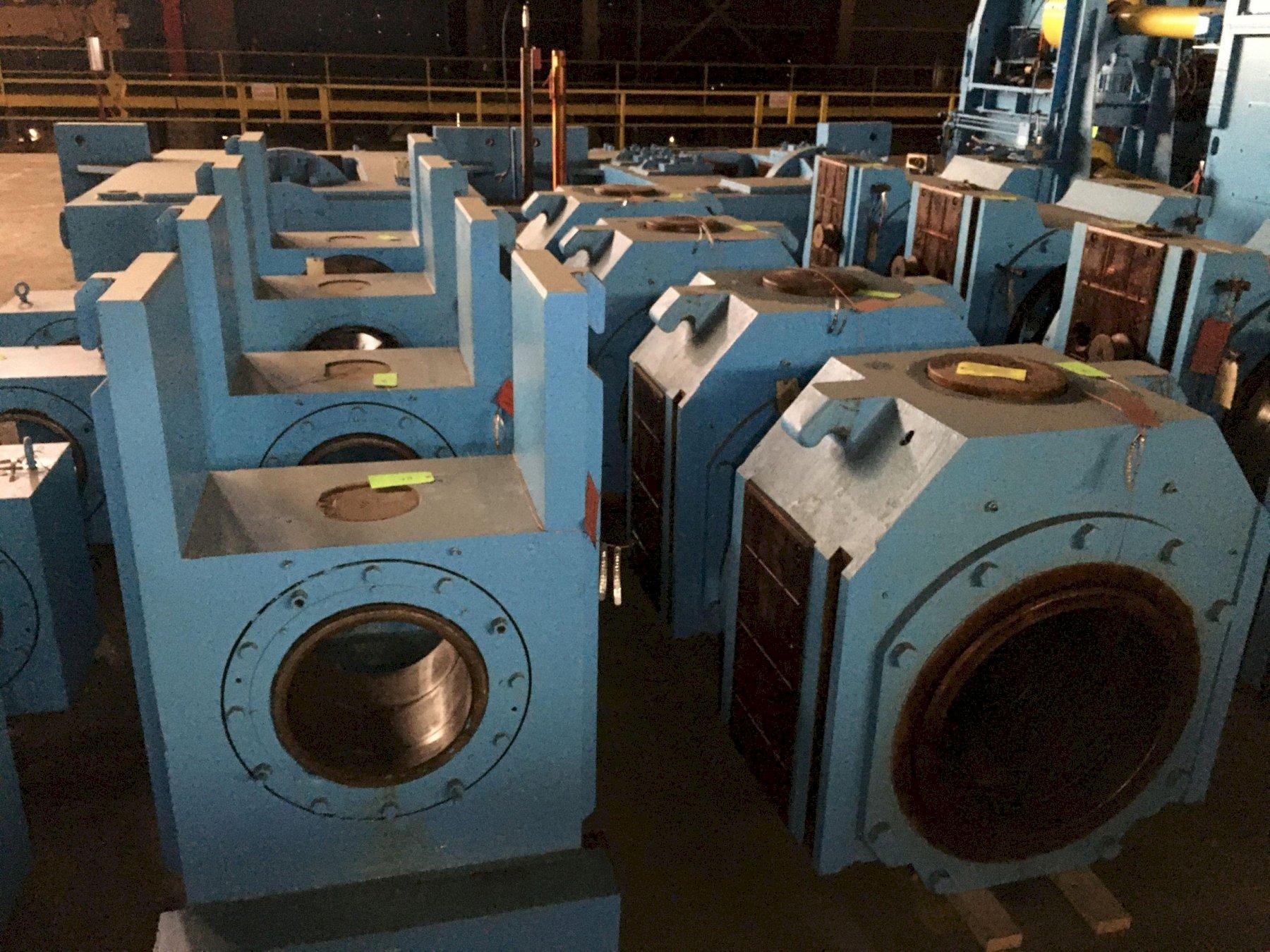

4 Top Outside Chocks
4 Bottom Outside Chocks
4 Top Inside Chocks
4 Bottom Inside Chocks
8 Work Rolls

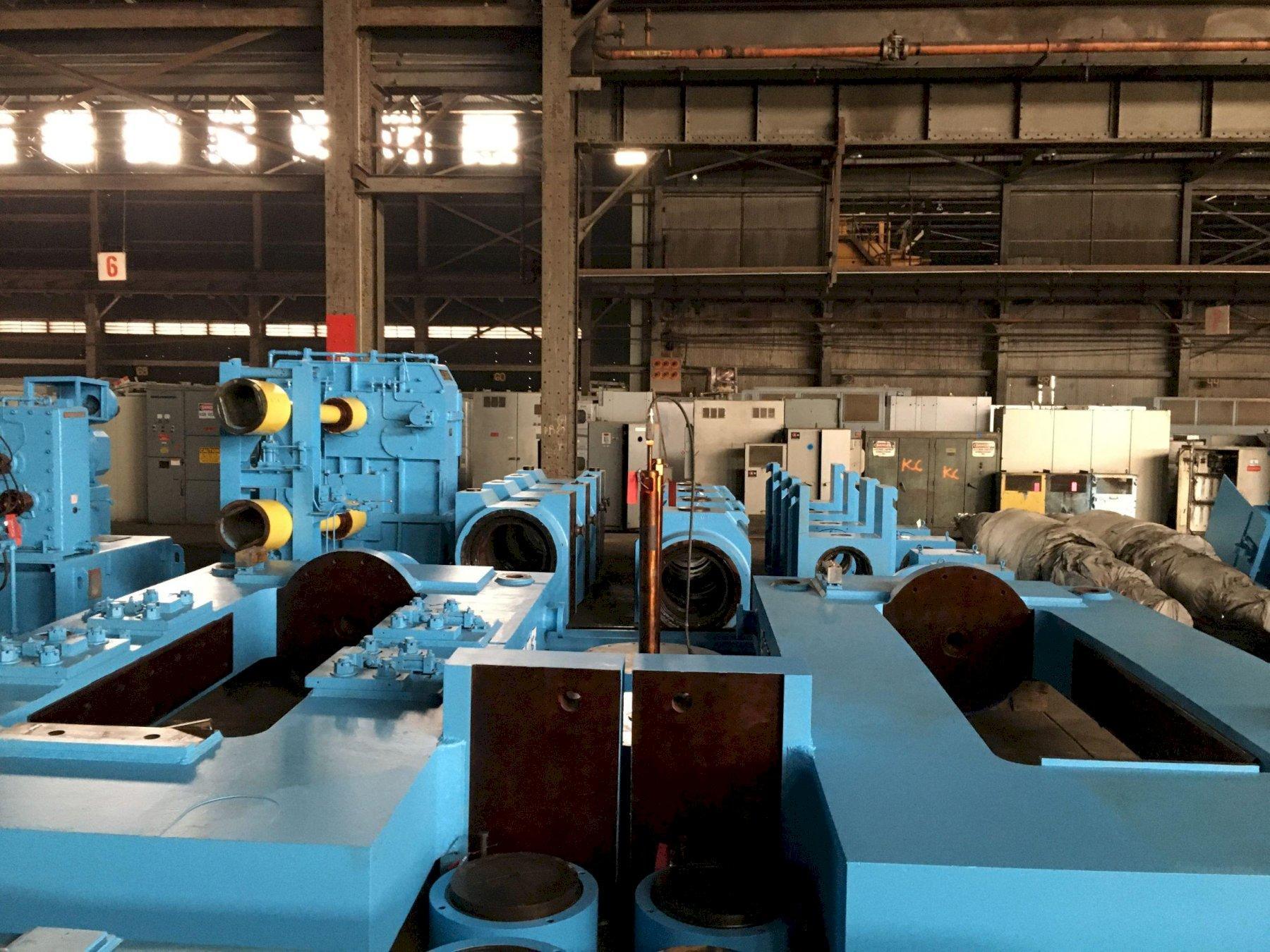

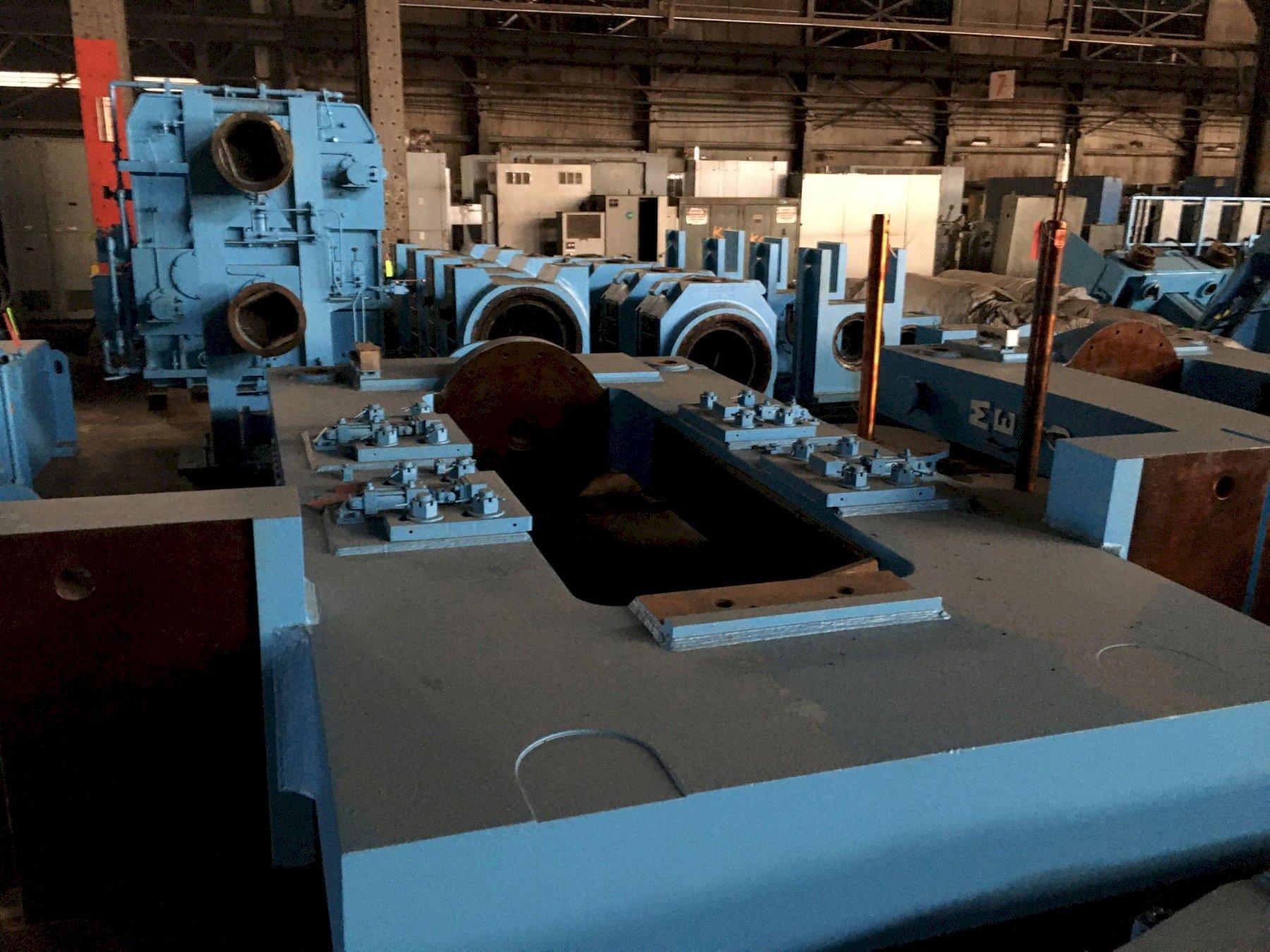

The package includes the Meco Mill housings, mill base, work rolls and chocks, outboard bearing chocks, spindles, pinion stand, roll force cylinders,
No Motors Included
Additional Proposal for Motors can be Send
