Year 2000
Capacity: 550,000 Ton/Year

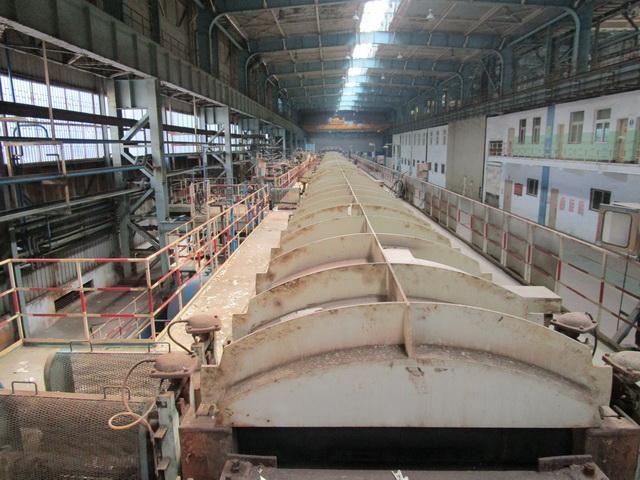

Push Pull Pickle Line with Acid Regeneration Plant
Hydrochloric Acid
Shallow Groove Turbulent Pickling
Multi Stage Compact Ladder Rinse Process
Coil Width" 600mm - 1575mm
Coil Tickness: 1.2mm - 6.0mm
Coil Weight Capacity: 30 Ton
Coil ID: 610mm - 762mm
Max Coil OD: 1995mm
Line Speed: 150 Met/Min
Featuring:
5 Tanks: 3 Acid 2 Rinse
Rubber Lined with Granite
5 Stage Rinse

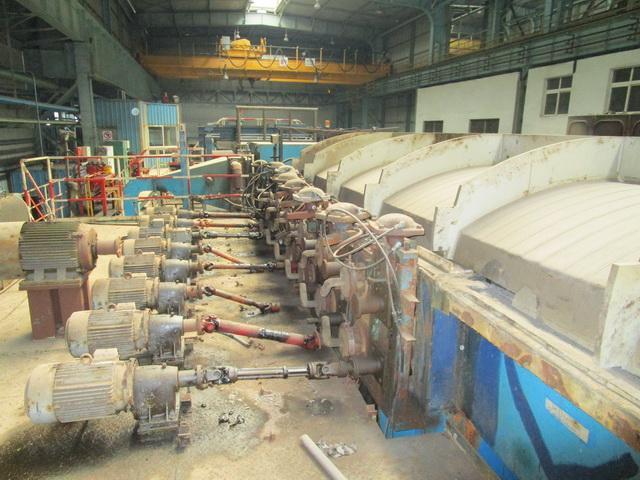

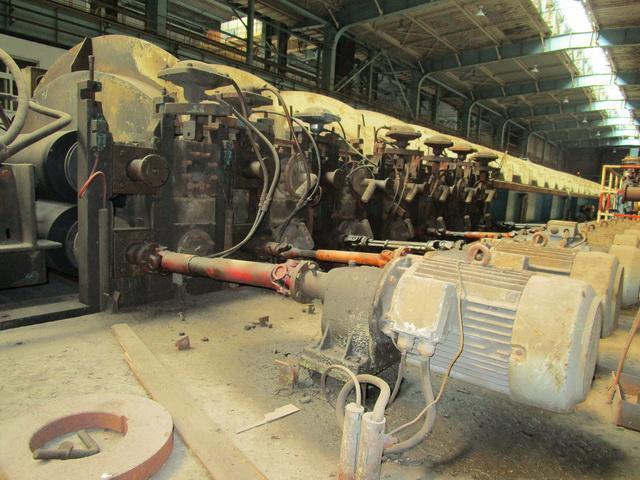

14 Squeeze Roll Sets Drives
Blow Off and Dryer
Thicknss Scanner
Edge Trimmer
Oiler
5 Roll Bridal Section

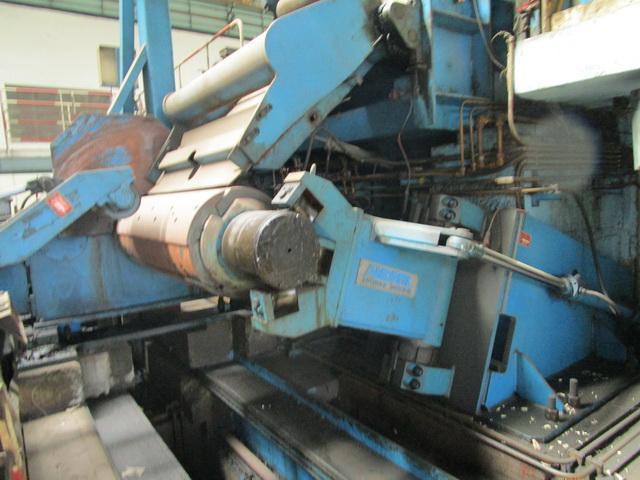

Recoiler with Edge Control and Outboard Bearing Support
550,000 Ton/Year Acid Regeneration Plant
