Equipped With
MANUFACTURER - PRO-ECO
YEAR - 1985, REINSTALLED 2002
WIDTH RANGE - 8" to 60"
GAUGE RANGE - .024" to .187"
WEIGHT CAPACITY - 50,000# (25 TON)
COIL OD - 36" to 72"
COIL ID - 19" to 24"
SHEET LENGTH - 24" to 168"
SHEET WIDTH - 8" to 62"
PACK HEIGHT - 30" (INCLUDING DUNNAGE)
PACK WEIGHT - 20,000#
LINE DIRECTION - RIGHT to LEFT
LINE SPEED - 50 to 300 FPM (VARIABLE)
LEVELER TYPE - MECHANICAL WEDGE STYLE w/ TWO CASSETTES
Complete Line Featuring
FOUR ARM ENTRY STORAGE TURNSTILE
FLOOR LEVEL COIL LOADING CAR

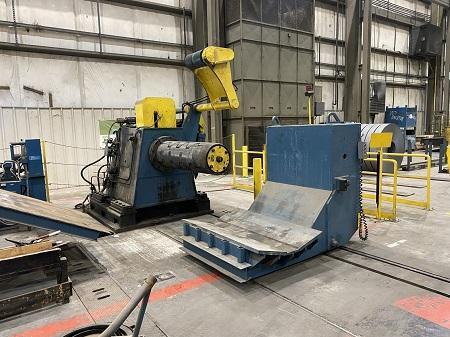

CANTILEVERED MANDREL UNCOILER
PEELER BLADE
ENTRY CROP SHEAR
SIDE TRIMMER

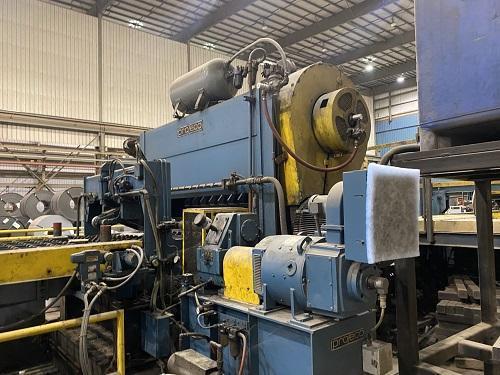

MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR
CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS
CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS
STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS

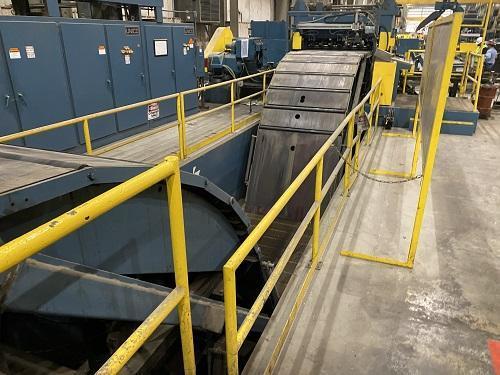

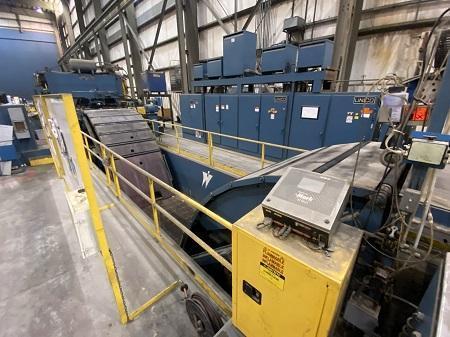

LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS
PRECISION ROLL FEEDER W/ 55 HP MOTOR
HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR
BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT
REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART

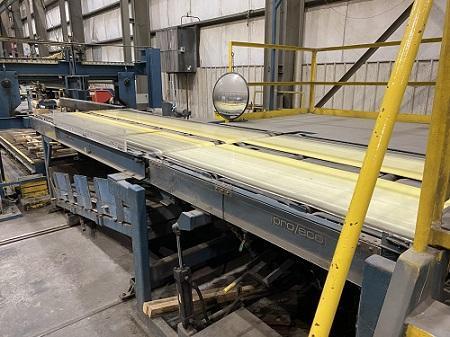

14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP
14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS
14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

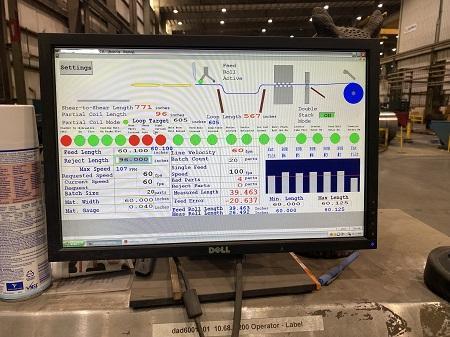

OPERATOR CONTROL STATIONS
UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006)
UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006)
