5" (127mm) x .2" (5mm) Oto Mill

Brand
OTO MILLS

Model
Not Specified

Stock #
604295

Condition
Used

Year

Tube Dia 5 inches
Max. Wall Thickness .2 inches

Equipped With

Manufacturer Oto Mills (Italy)

Diameter Range 1.5"-5" (38-127mm)
Thickness Range .04-.2" (1-5mm)
Speed 50m/min

Complete Mill with the Following Components:

Mandrel Uncoiler
Weight Capacity 7 Tons
Sliding Base
Hydraulic Expansion

Two Double Sided Edge Guides

Automatic Shear and End Welder
Esab Welding Unit

Five Roll Flattener
100mm Diameter Roll

Pass Line Roll

Pit Style Accumulator

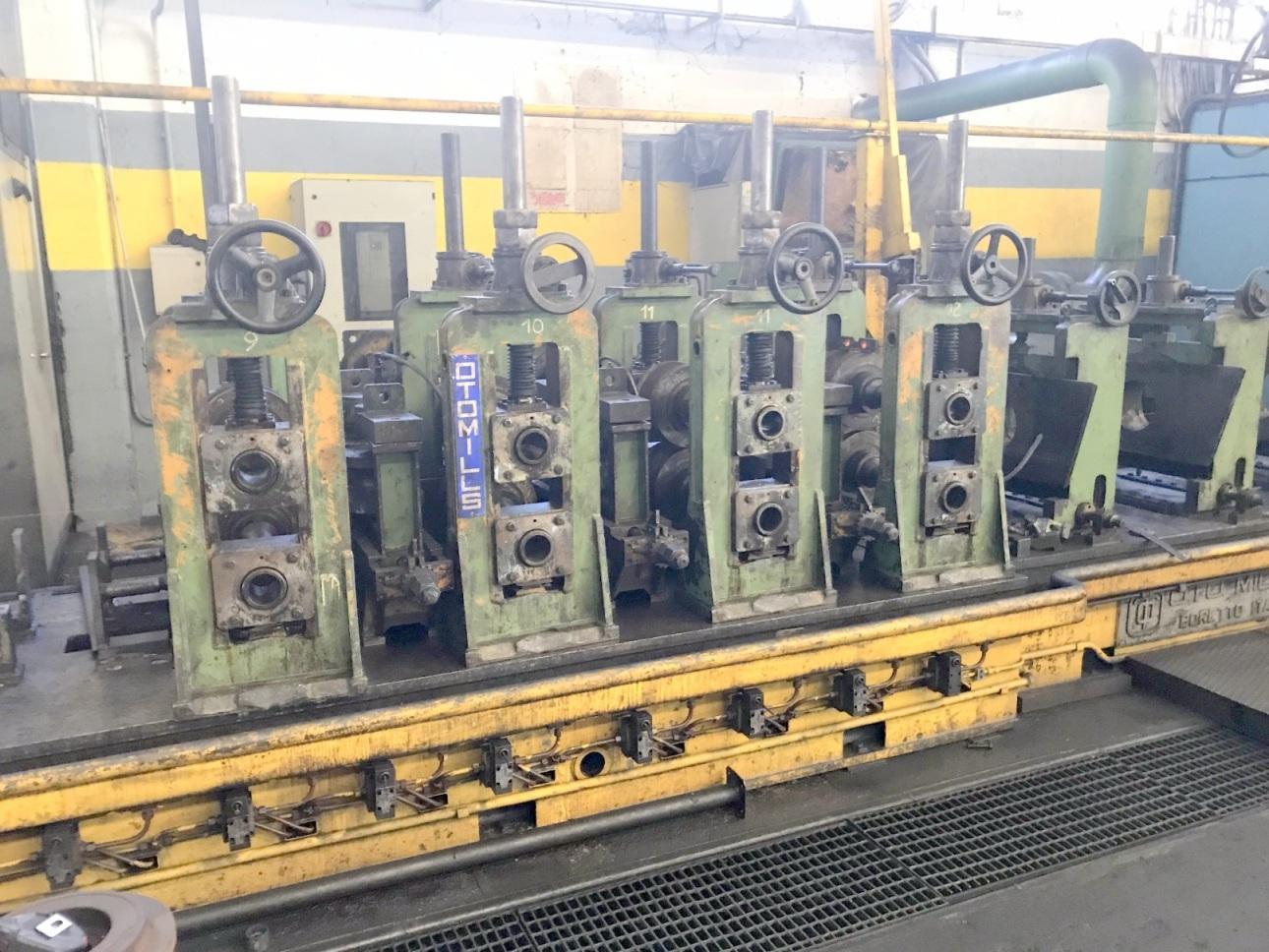

Forming Section
Four Forming Stands
110mm Diameter Shafts
Single Point Adjustment
Four Finishing Stands
Single Point Adjustment
Three Side Idle Rolls
150HP DC Motor Drive

Welding Section
Two Roll Weld Box
Adjustable and Motorized
220mm Diameter
300kw Emmedi HF Welder
Cooling Trough

Four Sizing Stands
110mm Diameter Shafts
Single Point Adjustment
150HP Motor Drive

Four Single Sided Turks Heads

Flying Cutoff
Hydraulic Drive
100 HP/2800 RPM Motor

Scotch Brite Section
Three Rollers
Two Faspar Sanitizing Heads

Run Out Exit Conveyor
Max Length 7m
