| Tube Diameter | 3 inches |
| Max. Wall Thickness | .100 inches |
General Specifications:
Max Tube Diameter: 3.00”
Wall Thickness Range: .032”-.100”
Speed: 180 ft/min at 180" Lengths
Coil ID: 20”
Max Coil OD: 80”
Complete with the Following Components:

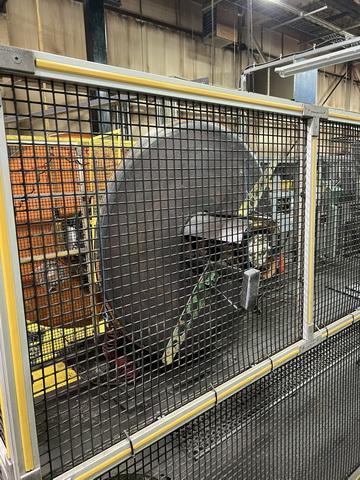

Samco Double End Uncoiler
Shear and End Welder

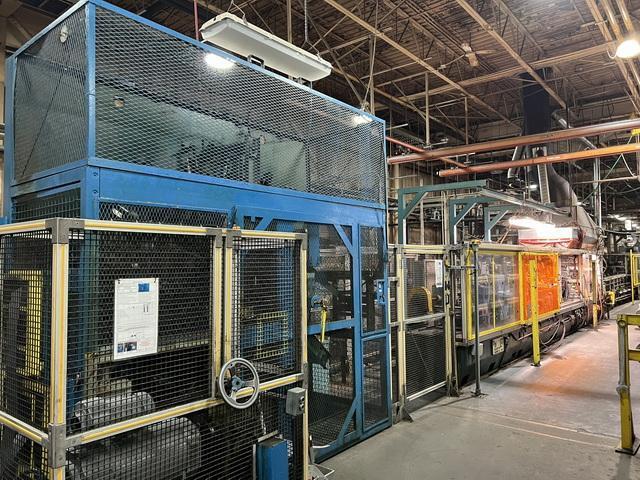

Kent Vertical Floop
Addison Edge Prep Station with Three Stands

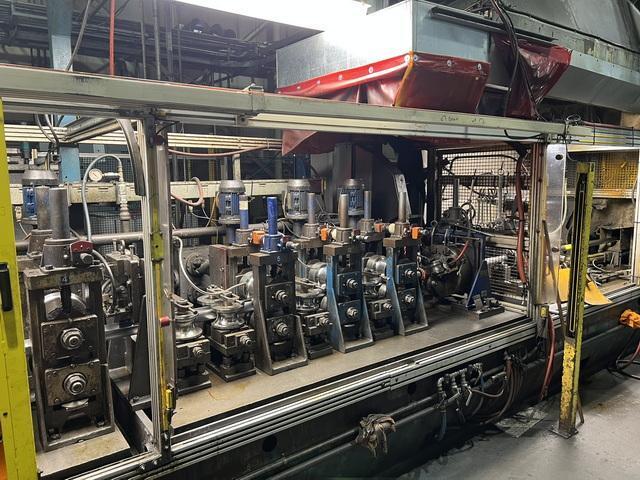

Four T&H Forming Stands
Three T&H Fin Pass Stands

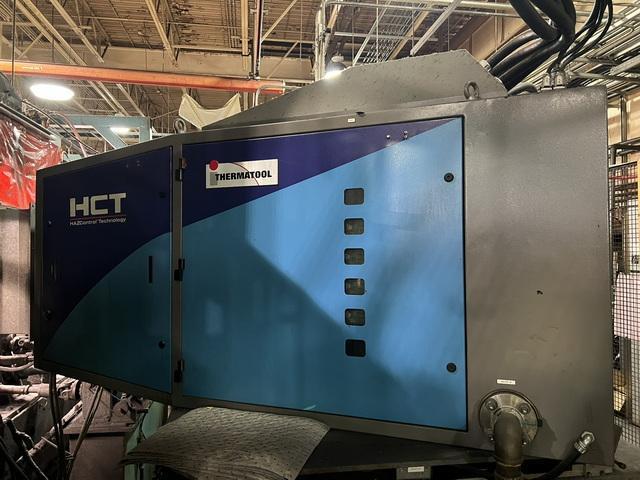

Thermatool HCT 200kw Welder
Addison Three Roll Weld Box
OD/ID Scarfing
Cooling Trough
Four T&H Sizing Stands
Turks Head
Video Jet Ink Jet Printer

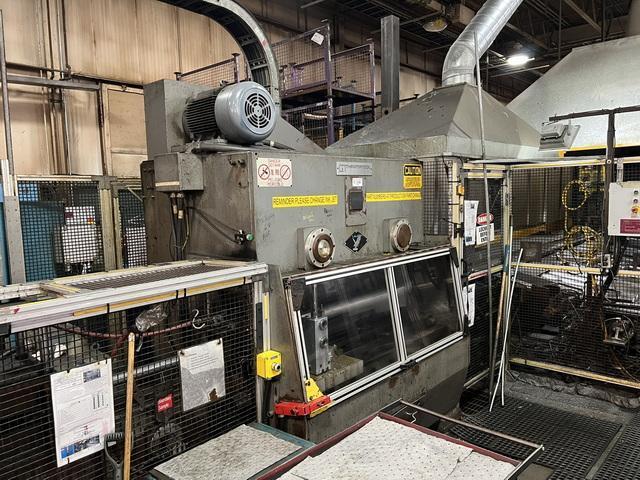

Alpha Cut Off with Double Cut Die
Exit Table and Conveyors
Spare Parts
Allen Bradley PLC
Siemens Drives
Coolant Filtration Unit

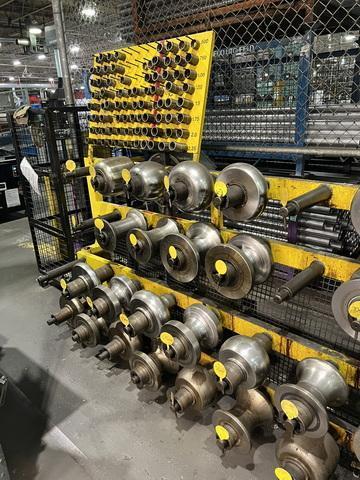

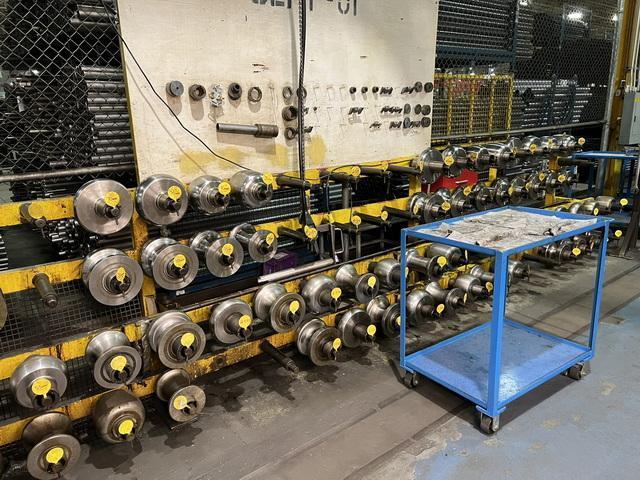

Tooling for the Following Sizes: 50mm, 55mm, 60mm, 65, 70mm, 1.913”, 2”, 2.125”, 2.250”, 2.375”, 2.5”, 2.75”, 3”
