48" x .135" x 30,000# Stamco/Herr Voss Slitting Line with Two Slitter Heads and Banding Line

Brand
STAMCO

Model
Not Specified

Stock #
102112D

Condition
Not specified

Year

Width 48 inches
Thickness .135 inches
Coil Weight 30000 pounds
Arbor Size 7.5 inches

Equipped With

General Specifications:

Line Direction: Right to Left

Max Coil Weight: 30,000#

Max Speed: 800 FPM

Thickness Range: .015”-.135”

Min Slit Mult Width: 1"

Entry Coil ID: 16” with Leaves for 20”-24”
Exit Coil ID: 16" & 20" Diameter Drums

Max Coil OD: 72”



Material Characteristics:

Material: Cold Rolled, Hot Rolled Pickled and Oiled Steel , Coated Steel, Aluminum Brass and Copper

80,000 Max PSI

30,000 Min PSI



Complete Line with the Following Components:

2 Coil Storage Platform

2 Coil Storage Platform with Floor Type V Deck Coil Car

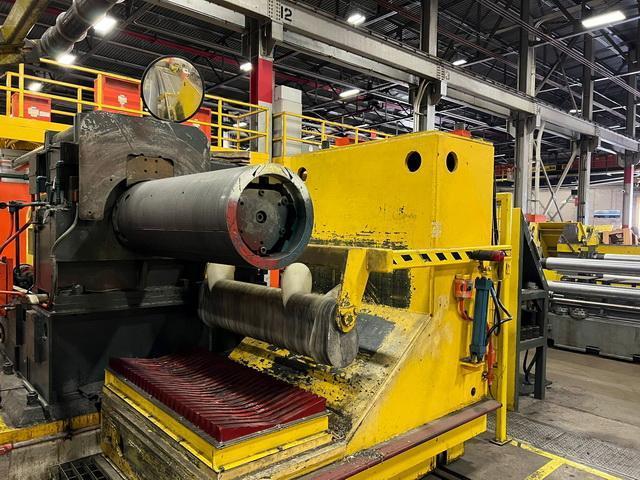

Stamco Mandrel Uncoiler

Free Standing Powered Hold Down Roll

Peeler Table

Polyurethane Covered Pass Line Rolls

Entry Non Powered Pinch Rolls

3 Roll Coil Set Deflector Rolls

Powered Pinch Rolls

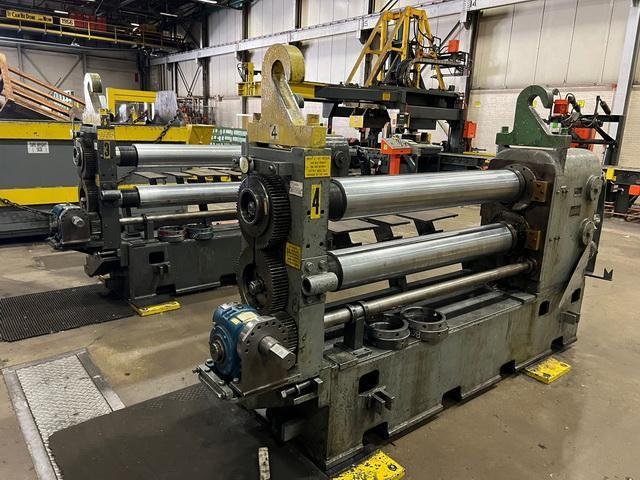

(2) Stamco Slitting Heads

Dual Scrap Choppers

Scrap Conveyor

Powered Pinch Rolls

Cascade Rolls

Pit Cross Over Table

Material Separator Shaft

Synchrowind Combination (Roll Type-Pad Type) Tension Stand

Exit Pass Line Rolls

Herr Voss Exit Crop Shear

Herr Voss Free Standing Over Arm Separator with Pass Line Roll

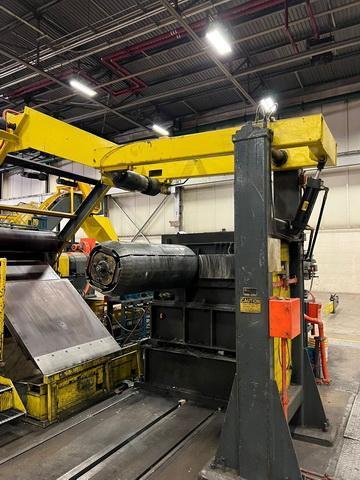

Stamco Recoiler

Herr Voss L-Type Exit Coil Car

Herr Voss Free standing Coil Keeper/Hold Down Roll



72” x 10,000lbs Coil Banding Line

Herr Voss 4 Arm Turnstile

Traverse Down Layer

6’ Length x 76” Roll Face Powered Conveyor Section

8’ Length x 76” Banding Table Section with 2 Conical Rolls

Signode Semi-Automatic Banding Head

6’ x 76” Roll Face Powered Conveyor Section
OD Stacker

6 Position Carousel Station with Push Off

(2) Exit Skid Coil Positioners

Allen Bradley 1395 Drives

Allen Bradley PLC

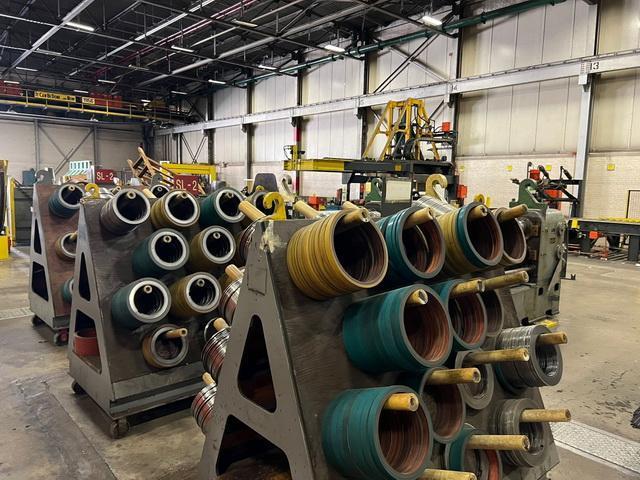

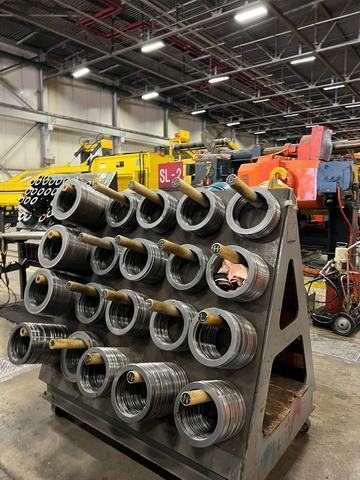

Complete Line with Shimless Tooling, Knives, Metal Spacers, Hydraulics, Electrics, Controls, Manuals and Drawings
