4" (101.6mm) x 3.2mm Tube Mill Line Year 2016

Brand
Not Specified

Model
Not Specified

Type
Tube Mills

Stock #
605398B

Condition
Used

Year
2016

Request a Quote
Have one to sell?
Tube Diameter 4 inches
Max. Wall Thickness 3.2 millimeters

Equipped With

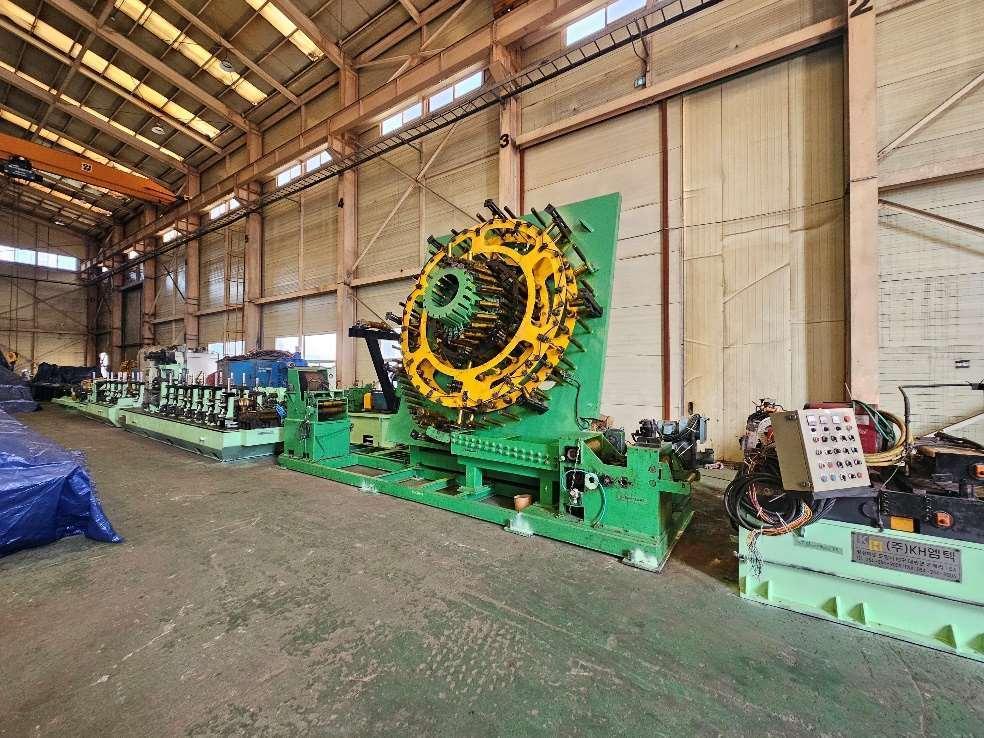

4 Inch Tube Mill Line Composition

1. Composition

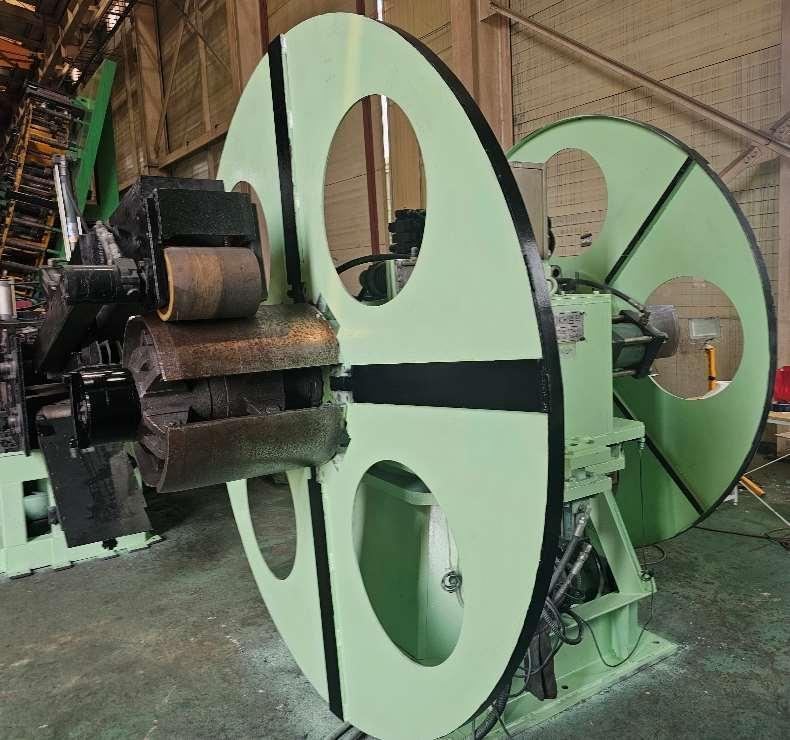

Uncoiler
Pinch Leveler
Shear Welder

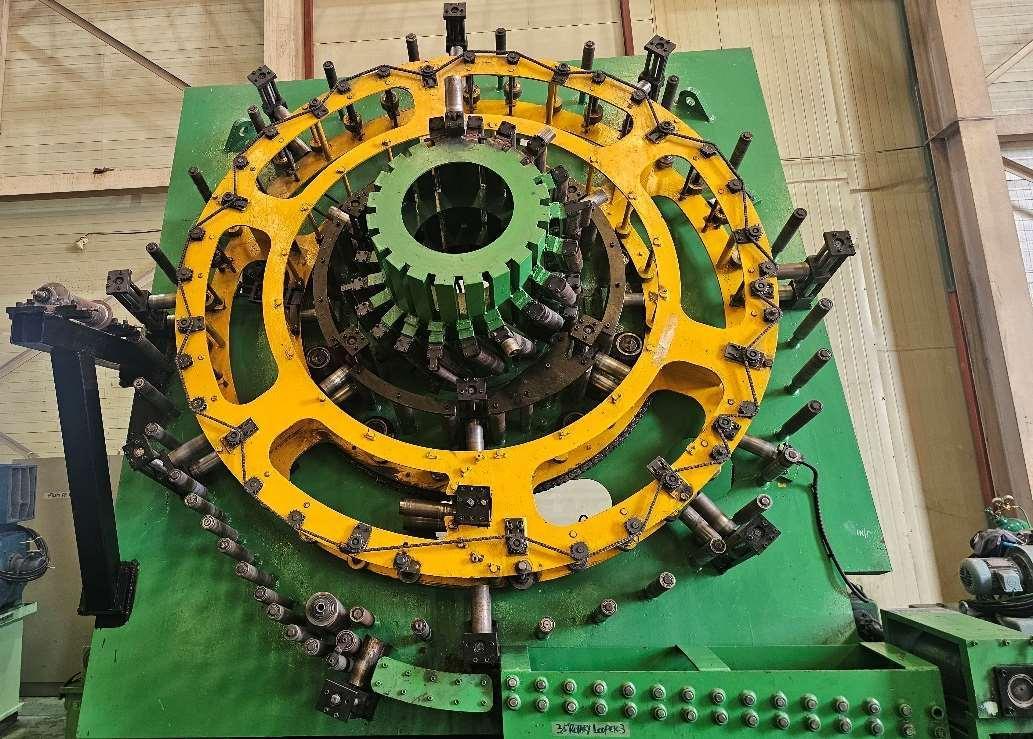

Rotary Looper (Accumulator)
Looper

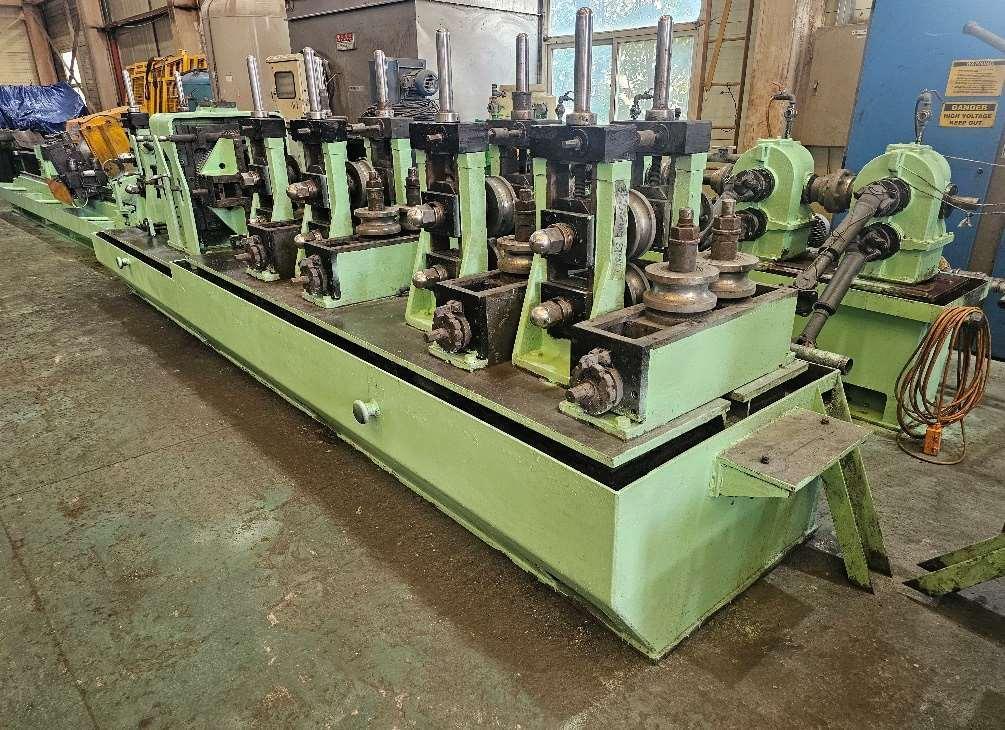

Forming Part
Forming Part Drive
Cooling Part
Sizing Part

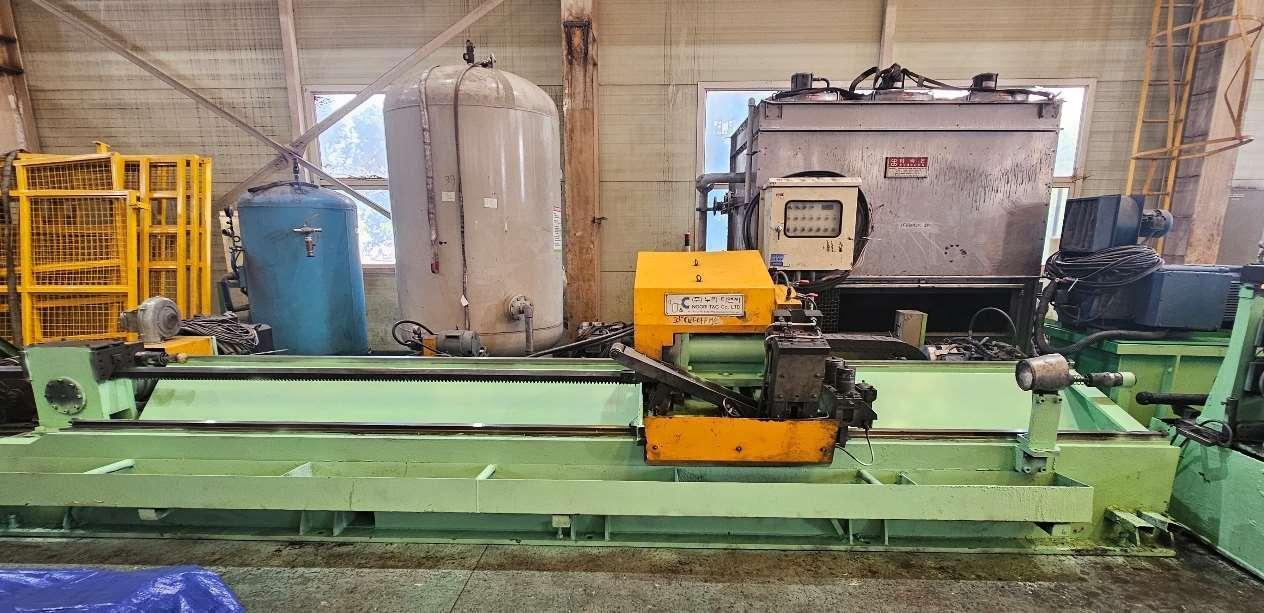

Cut-off M/c
Run Out Conveyor

2. Specification
Raw material                           Hot & Cold Rolled Steel Coil
Coil Outer Diameter               Max. Ø1800 mm
Coil Inner Diameter                Ø508 mm
Coil Width                               40mm - 100mm
Tube Outer Dimeter               Round 34.0 - 101.6mm / Square Max 100*50
Line Speed                              Max. 120 m/min
Thickness                                1.2mm to 3.2mm
Hoop Width                             Max 300mm
Coil Weight                              5 tons
Electrical Power Source        AC 380V, 60Hz, 3P (Control)
Line Direction                          L   →   R
Hydraulic Pressure
Year of Mfg/ Maker                2017 / ㈜KH 엠텍
Welding Capacity                    350Kw (400KVA)

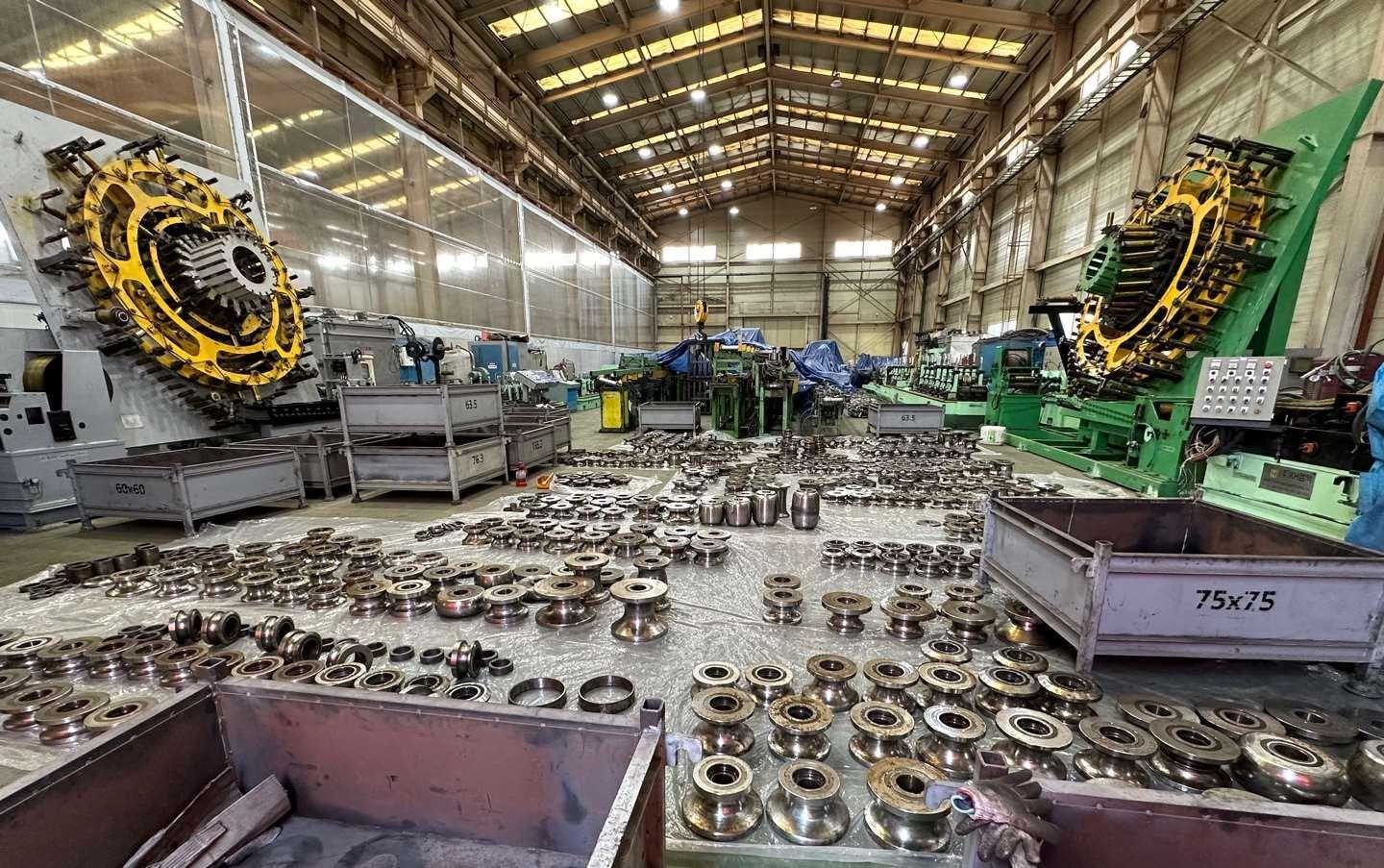

Tooling for Rounds, Squares and Rectangles (14 sets)
