FEEDSTOCK STEEL STRIP
Sheet Thickness Max: 4mm (0.1576")
Sheet Thickness Min: 0.8mm (0.0315")
PRODUCT (PROFILE, TUBE)
External Diameter Min: 24.9mm (0.9811")
External Diameter Max: 60mm (2.364")
Wall Thickness Min: 0.8mm (0.0315")
Wall Thickness Max: 4mm (0.1576")
LINE CHARACTERISTICS
Forming Process: Rollforming
Welding Process: HF inductive
Sawing Process: Travelling
System Consisting of:
- large coil reel
- Belt Welding Device
- Optional: Horizontal Band Loop
- Side Planer

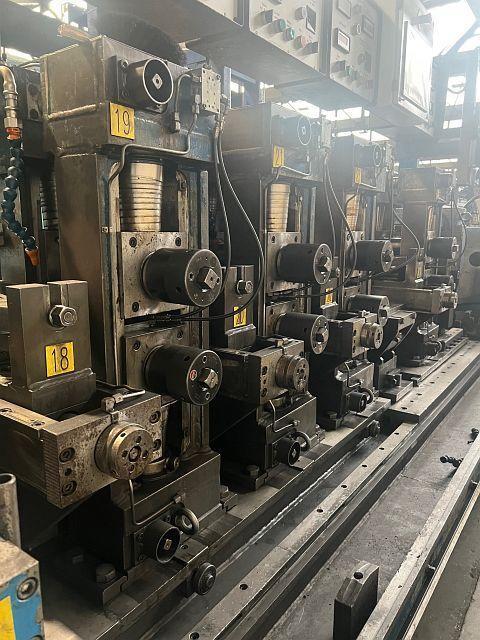

- Forming Unit
- HF Welding Unit
- Units for Outside Scarfing, Inside Scarfing - Each Without Impeders, Tooling
- Cooling Section

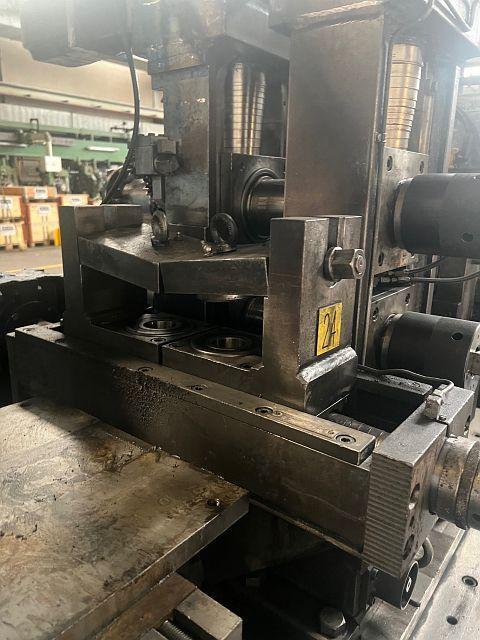

- Calibration Unit with Alternative Calibration Station for Ovals, Polygons
- Flying Saw
- Chip Blow Unit

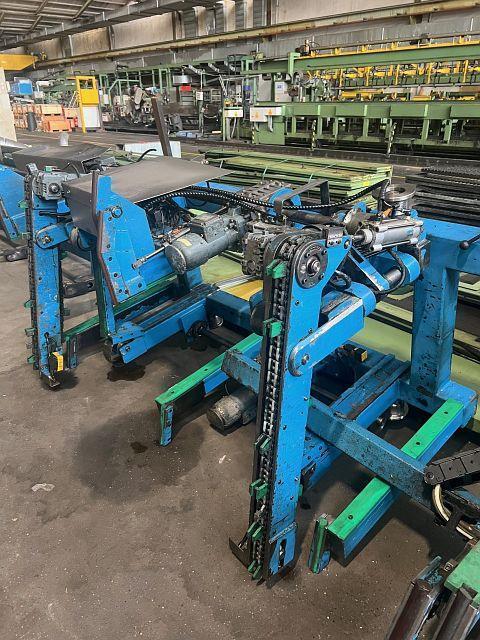

- Hexagon Bundling and Binding Unit
Optional Roll-Sets Available For:
Forming Section:
26mm, 30mm, 32mm, 36mm, 38mm, 40mm, 44mm, 46mm, 52mm, 60mm
Calibration Section:
25mm, 26mm, 29.5mm, 29.89mm, 30mm, 32mm, 33mm, 33.4mm, 33.5mm, 33.7mm, 34mm, 35mm, 36mm, 37mm, 38mm, 39mm, 40mm, 42.4mm, 43mm, 44mm, 45mm, 46mm, 50mm, 51mm, 51.5mm, 57mm, 58mm, 60mm
No Drawings
