Steel coil specification:
Material Q235
Steel coil thickness 8.0 – 22.0mm
Steel coil plate width 450～1800mm
Steel coil I.D. Φ508-900mm
Steel coil O.D. Φ1200-2100mm
Coil weight ≤25T
Steel pipe specification:
Steel pipe O.D. Φ529～Φ3620 mm
Steel pipe thickness 8.0 – 22.0 mm
Steel pipe weight Max 23400 kg
Steel pipe length 6-12 m
Spiral angle 40° - 81°
Pitch Max. 1822 mm
Mill specification:
Mill arrangement: Frontal swing, from left to right. Center positioning
Production type: Non-Continuous production. Stop during changing coil
Forming method: 3 rolls bending forming. Out control roll sizing
Forming angle: 40° - 81°
Pipe run out type: Plasma cutting, Pipe dropper
Welding speed: 0.5 – 1.8m/min
Install capacity: ～500KW
Machine output: 236ton/8hours (1800mm plate width×22mm)
Dynamic power:
Power source: 380V 3phase or as user’s requirement
Air compressor: 0.4 - 0.6Mpa
Complete Mill with the Following Components:
Double Cone Uncoiler
Peeler and Straight
Pinch Rolls and Leveling Machine
Hydraulic Vertical Roller
Shear and End Welding
Edge Milling Machine
Manual Vertical Roller
Delivery Machine
Guide Beam
Frontal Bridge
Forming Machine
Production size Φ529 – Φ3620 mm
Forming angle 40°– 81°
Inner and Outer Welding Devices
Flying Cutting System
Rear Bridge
Used to support the supporters, output rollers, fly cutting trolleys, etc.
Pipe Dropper
Out-Sourcing Equipment
Joint Welding Cart
Flux Magnetic Separating and Drying Systems
Flux Recovery System

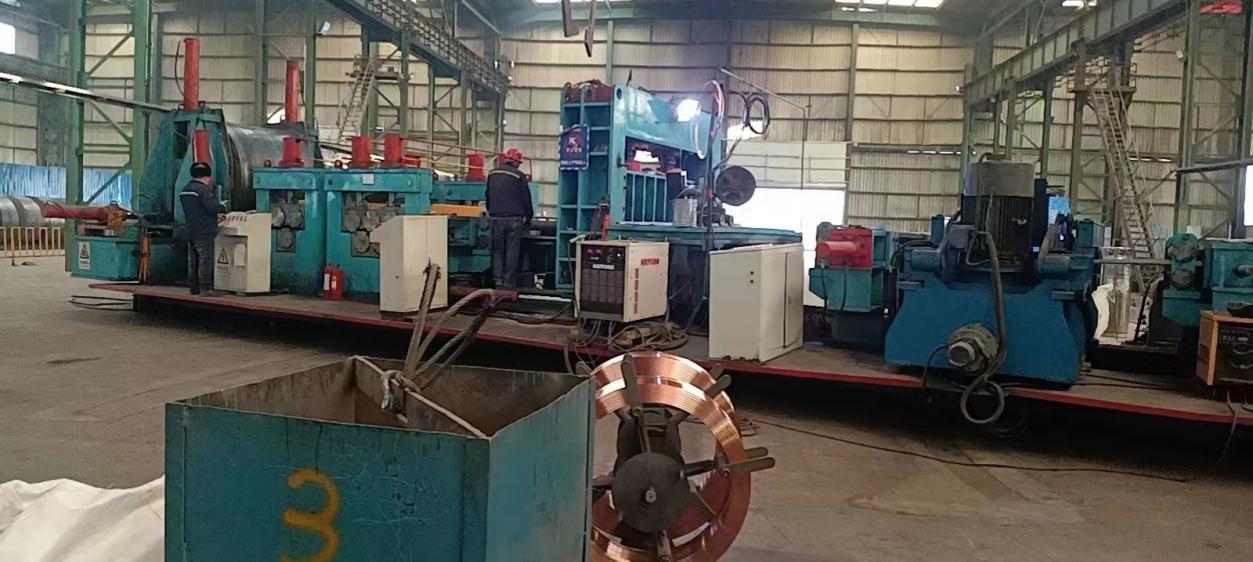

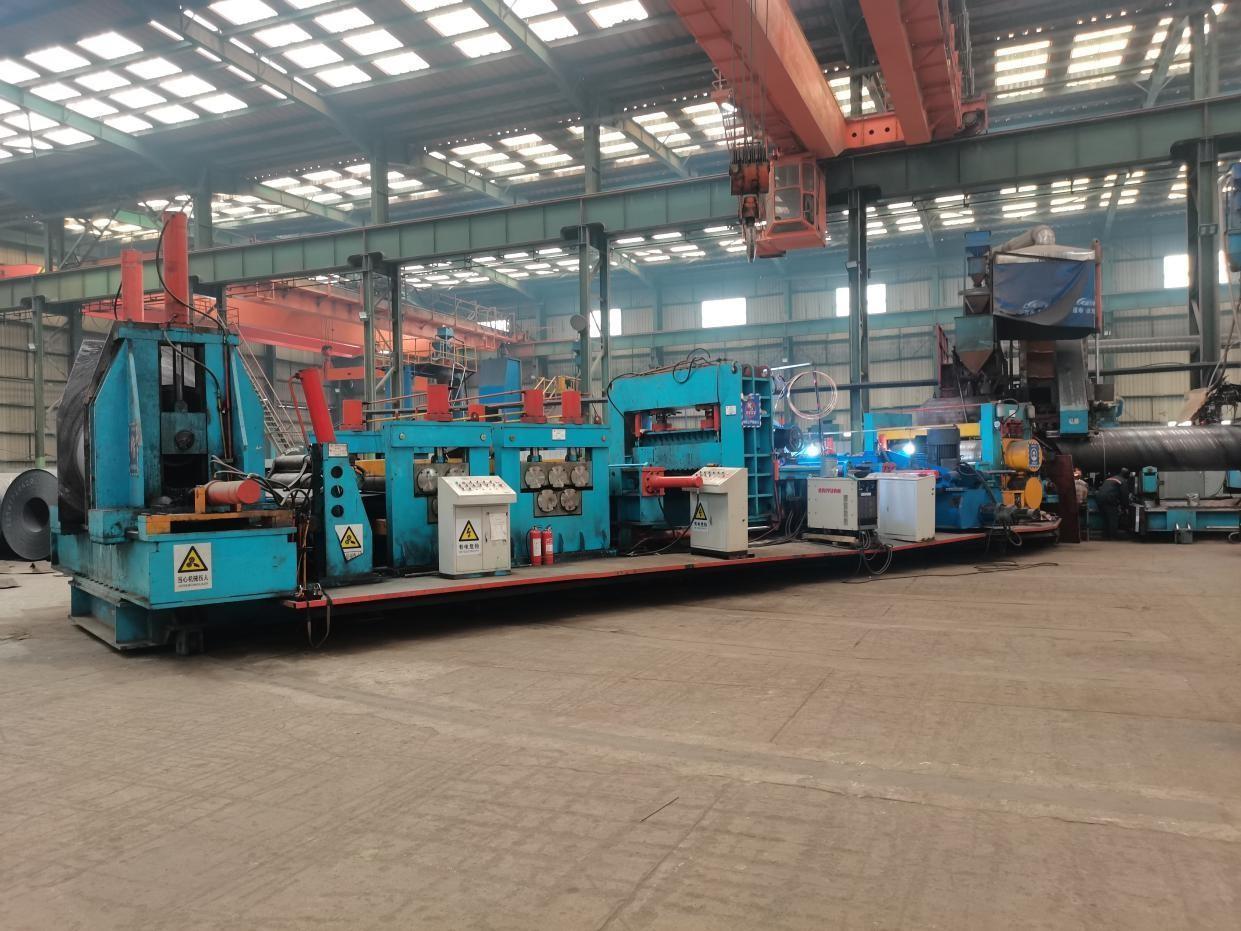

Installed
