Thickness Range: .010" - .105"
Minimum Cut Width: .324"
Arbor Diameter: 4 1/8"
Coil Entry ID: 16"
Coil Exit ID: 16"
Complete Line With
Coil Tipper
Traversing Coil Car / Coil Lift
Mandrel Uncoiler
28" Mandrel Face
4 Leaf Mandrel
Sliding Base
Feed Up Drive
Hydraulic Expansion

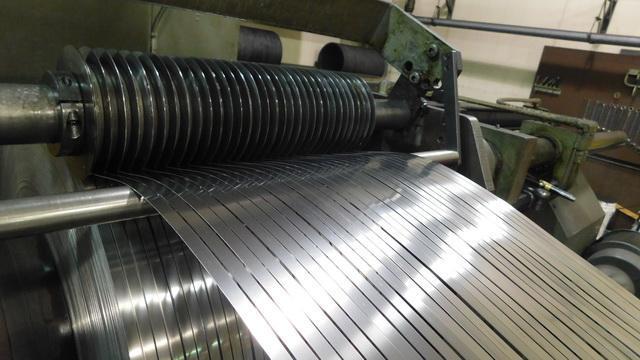

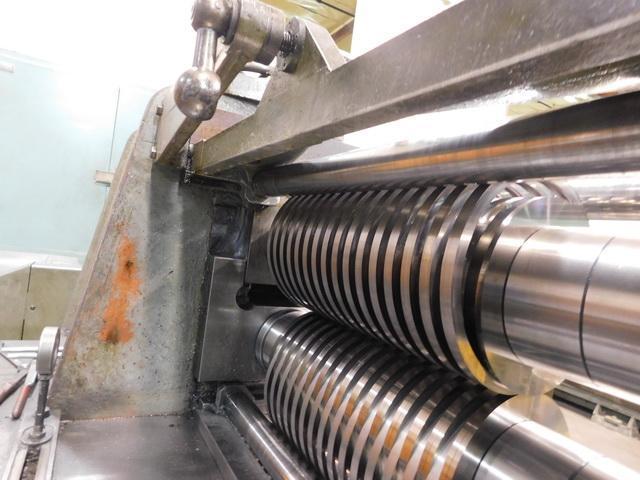

Ruesch Slitter Head
Ring Slitter Design
Top & Bottom Back Ups
4 1/8" Diameter Arbors
25 HP DC Drive
Entry Pass Line Roll
Entry Edge Guides
2 Scrap Winders with Oscillating Wind
Feed Table

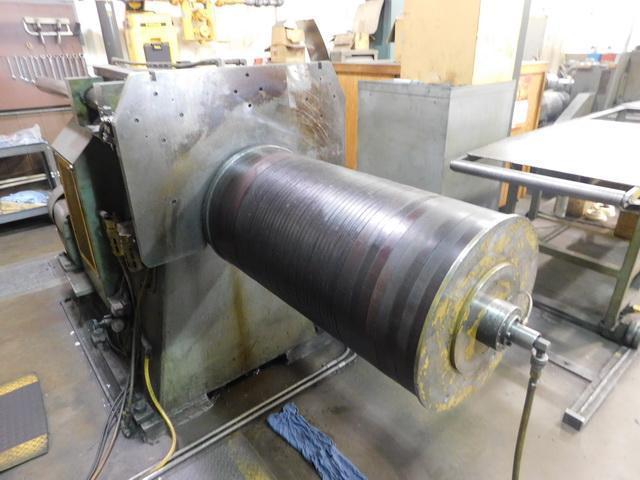

Ruesch Recoiler with Slip Core Drum (Serial No. N3047E)
16" Diameter Drum
33" Drum Face
40 HP DC Drive
Hydraulic Push-Off
Spare Recoiler Drum

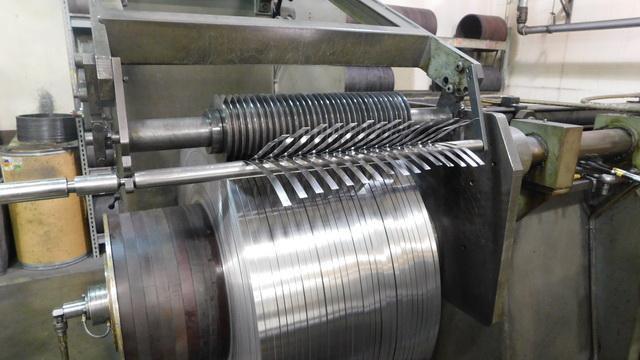

Floor Standing Overarm Separator
4 Arm Exit Turnstile
Precision Slitter Tooling
Hydraulic Units
Operator Push Button Controls
Electrical Controls & Transformers
Fenn Dual Oscillating Coil Build Up Line with 2 Fenn Recoilers
(2) Littell Double End Uncoilers
(2) Butt Welder Stations
(2) 4 Sets of Double Roll Edging Dies
(2) Fenn Bridal / Tension Rollls Serial No. 53211 (Year 2005)
(2) Fenn Oscillating Recoilers Model No. 2215 T.R. (Year 2005)
10 HP DC Motor
3 HP DC Oscillating Motor
12" Drum Face
Entry Strip Edge Guides
Designed to Wrap on Cardboard Cores
Parker SSD 590 Integrator DC Drives
Control Techniques Mentor ll Digital Drives
