Manufacturer: Frohling (Germany)
Mechanically and Electrically Upgraded in 2012 (Approximately $3.5MM USD)
Max Rolling Thickness: .250”
Min Rolling Thickness: .010”
Work Roll Face: 20"
Max Strip Width 18”
Min Strip Width: 6”
Max OD: 60”
Coil ID: 20”
Max Rolling Force: 400 Ton
Max Rolling Speed: 1000fpm
Line Direction: Right to Left
Work Roll Diameter: 8"
Back-Up Roll Diameter: 24.5"
Main Motor: 958HP
(2) Uncoiler Motors: 218HP Siemens DC
(2) Recoiler Motors: 210.5HP Siemens DC
Maximum Coil Weight: 5 Ton

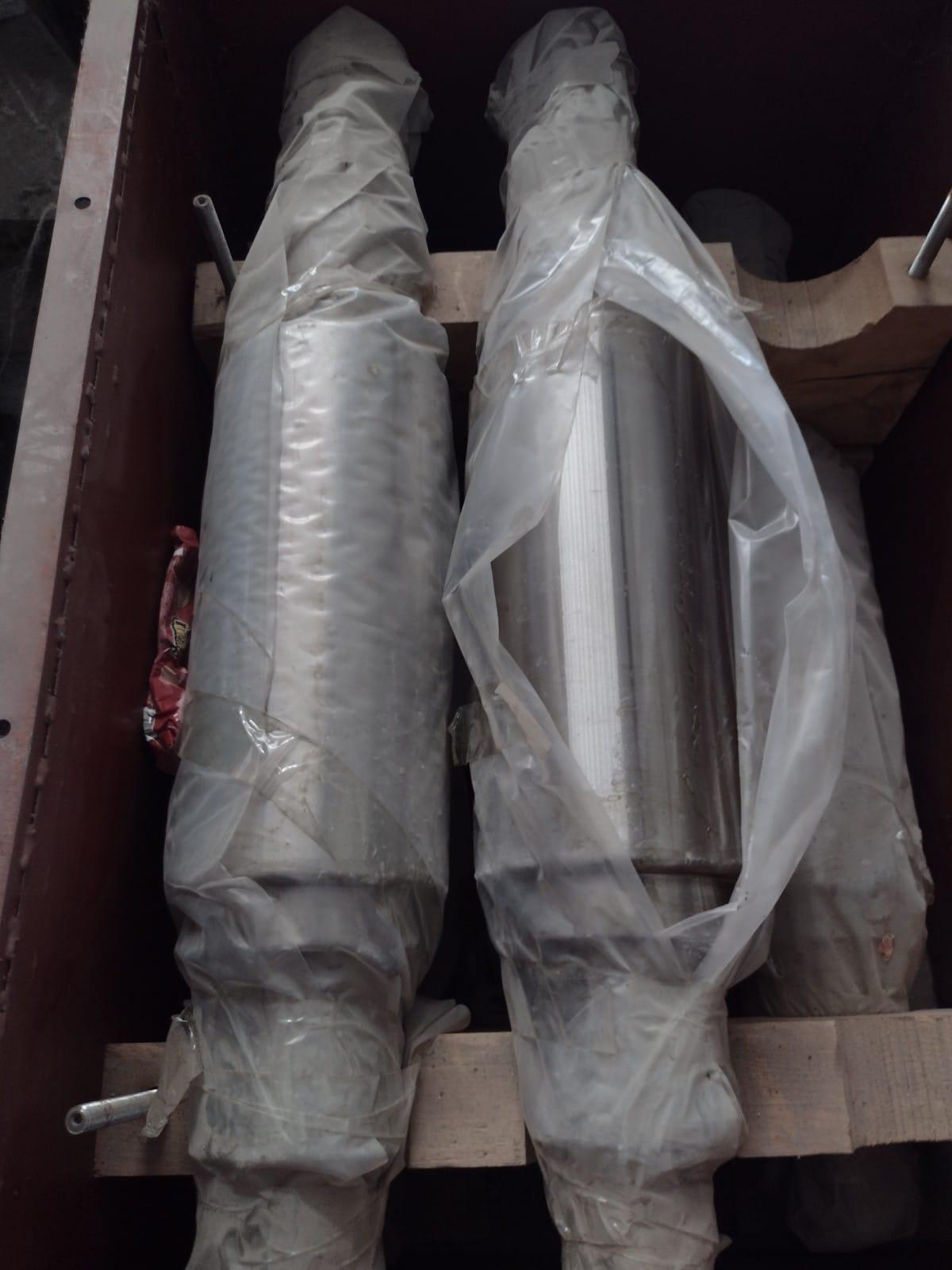

Spare Rolls and Chucks:
17 Brand New Work Rolls
10 Brand New Back Up Rolls
15 USED Work Rolls
2 USED Back Up Rolls
21 Work Roll Chucks
Complete Line with:
(2) Coil Cars
Pay off
Uncoiler
4-HI Rolling Mill with AGC
Hydraulic Screw Downs
Recoiler
Exit Coil Car

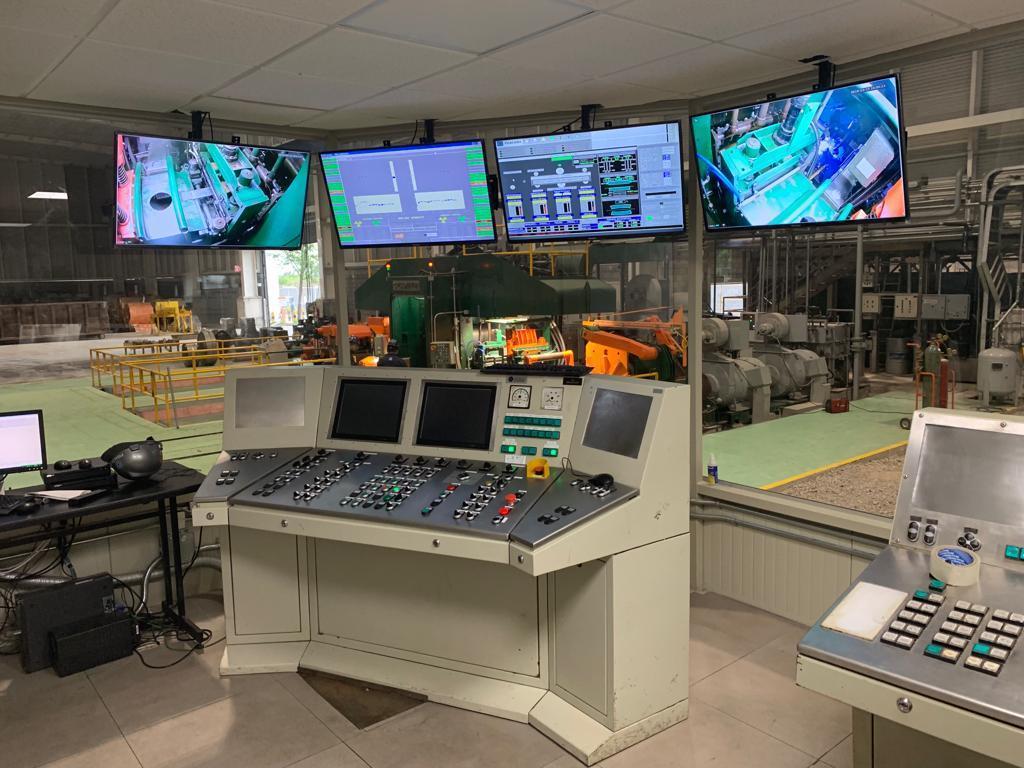

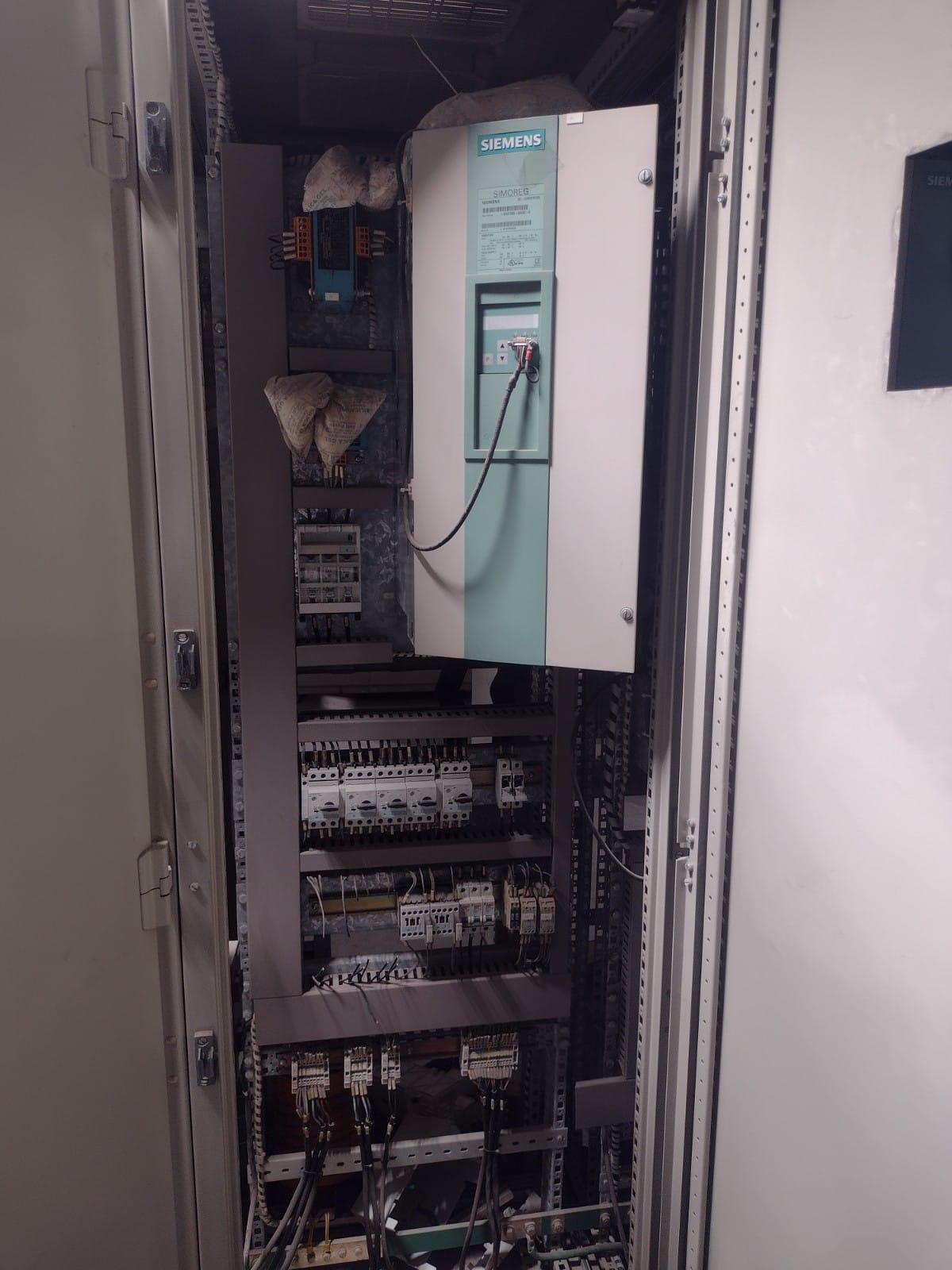

Siemens PLC and Drives
Controls, Electrics, Hydraulic Systems etc.
