Year 2019
Tube Outer Diameter Max 0168.3mm Min 050.8mm
Wall thickness Max 7.0mm Min 1.4mm
Tube Cut Length Max. 12,000 mm Min. 6,000 mm
Line Speed Max 60m/min Min 20 m/min
COMPLETE LINE WITH:
Coil Lifting Car

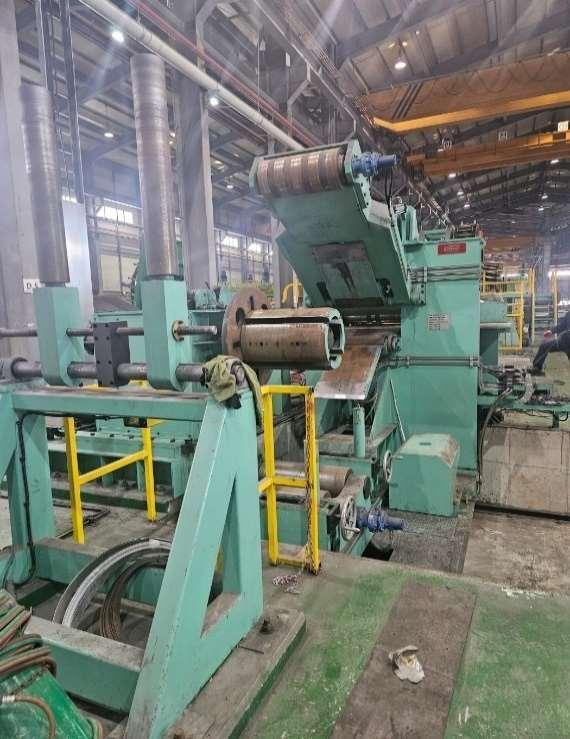

12,000 Kg Mandrel Uncoiler

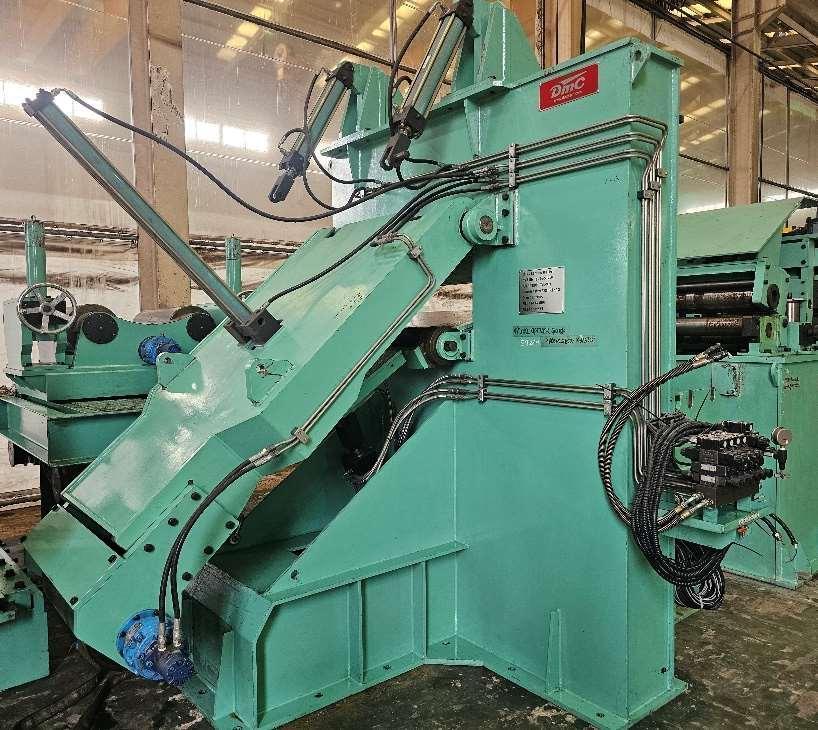

Peeler / Pinch Rolls
5 Roll Leveler
Auto Shear and End Welder

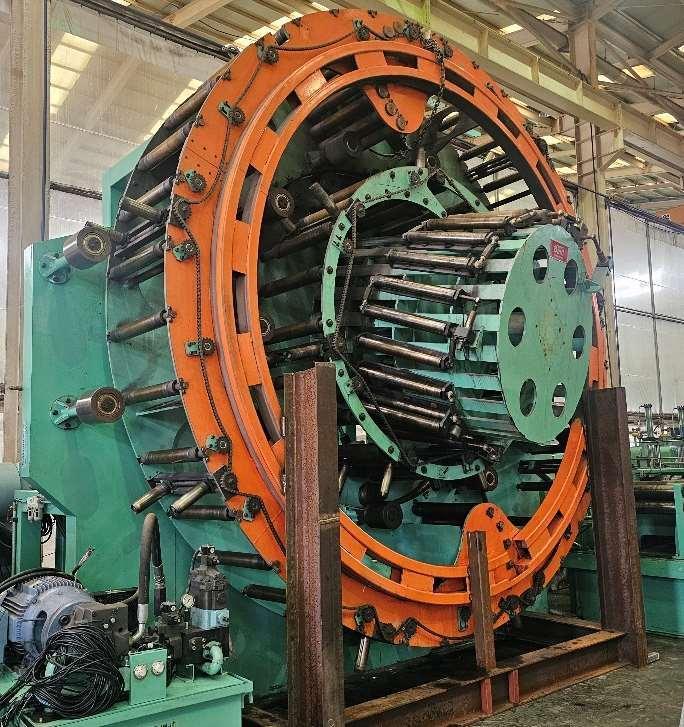

Vertical Rotary Accumulator

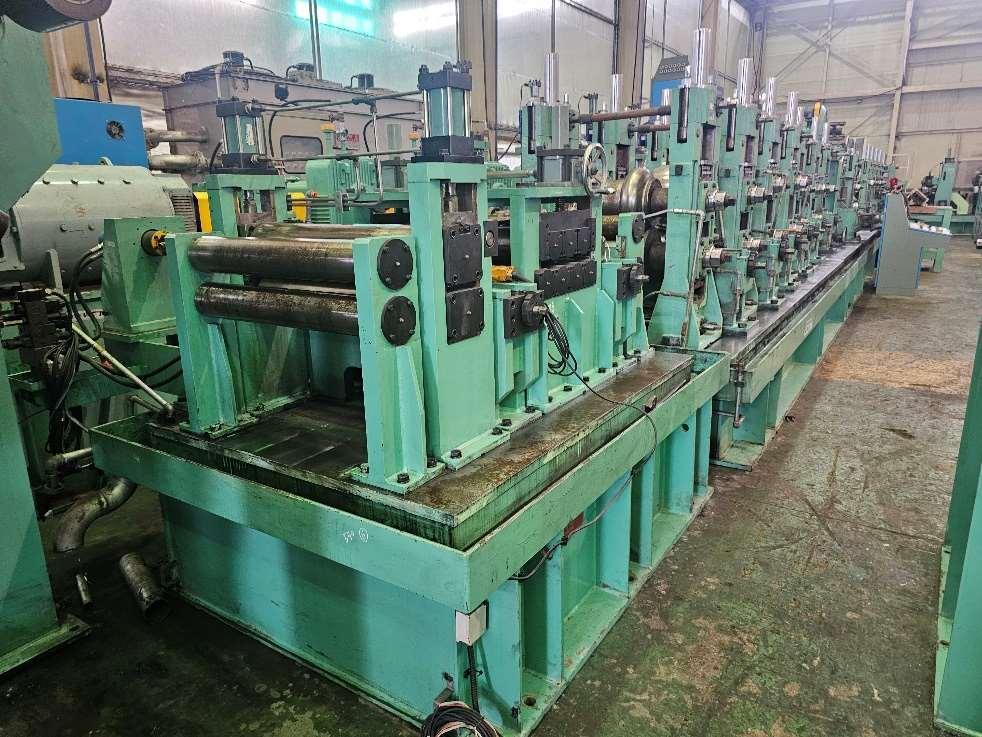

Forming Mill
120mm Diameter Shafts
Entry Pinch Rolls
7 Roll Leveler
4 Break Down Stands
3 Side Idler Rolls
2 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls
110 KW Forming Motor
75 KW Finn Pass Motor
Welding Part Section:
500 KW High Frequency Welder
Seam Guide Roll
4 Roll Squeeze Roll Stand
OD Bead Scarfing with 2 Cutting Tools
Ironing Pass
Scrap Winder
Cooling Bath
Emulsion Cooling System

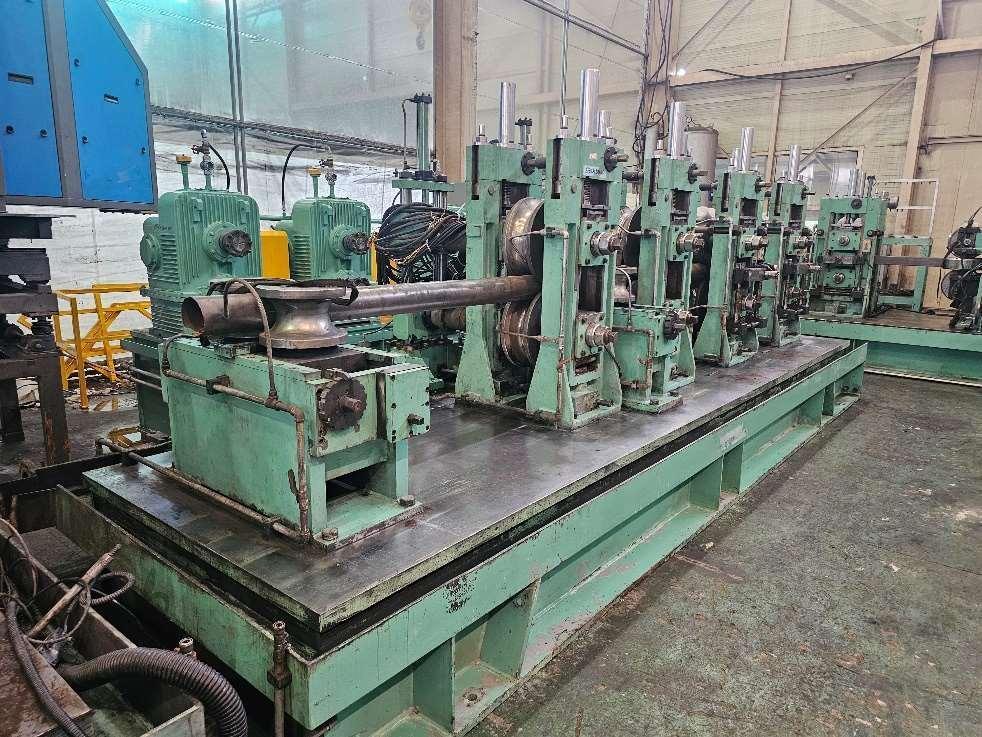

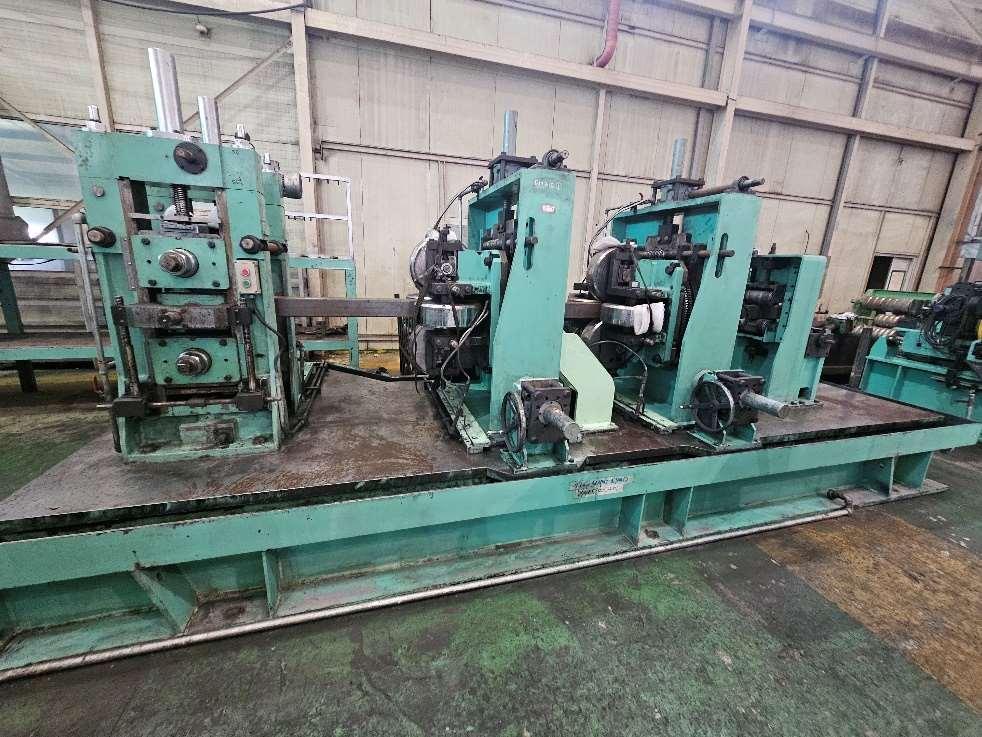

Sizing Mill
120mm Diameter Shafts
Twisting Roll Stand
5 Sizing Roll Stands
Measuring Roll Stand
2 Turks Heads
Pull Out Stand
130 KW Drive
Flying Cold Saw Cut-Off
42 KW AC Servo Accelerator Drive
30m KW Saw Motor
4500mm Saw Travel
Rack & Pinion

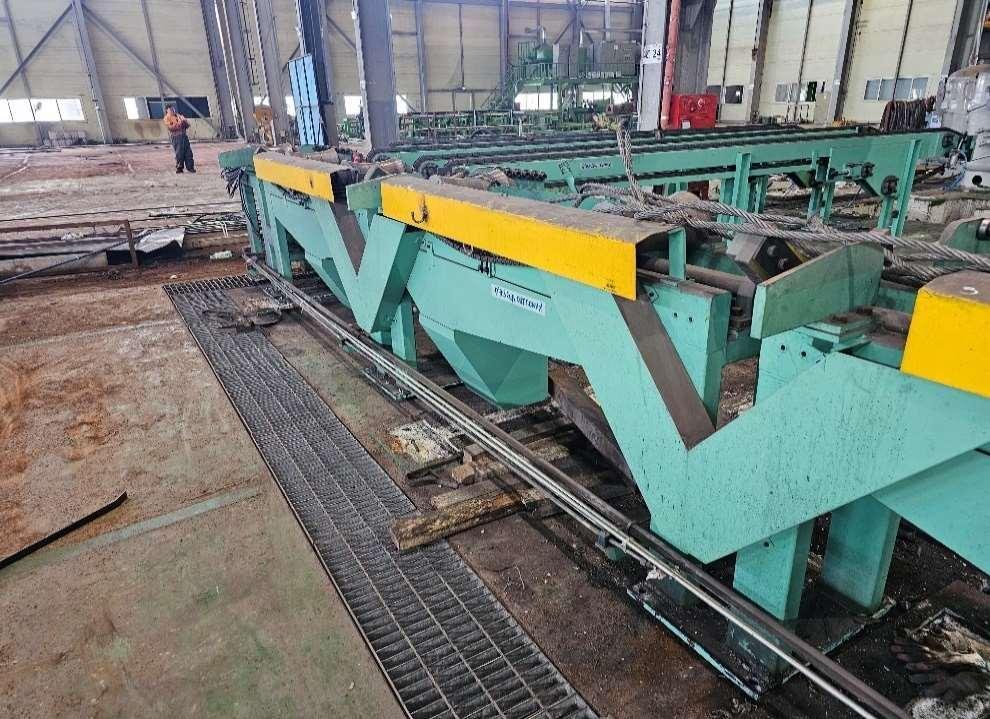

Run Out Table
Auto Packing System (Square Tube Only)
Composition
Chain Conveyor to Pusher
Lifting Pocket
Exit Chain Conveyor
Strapping Station

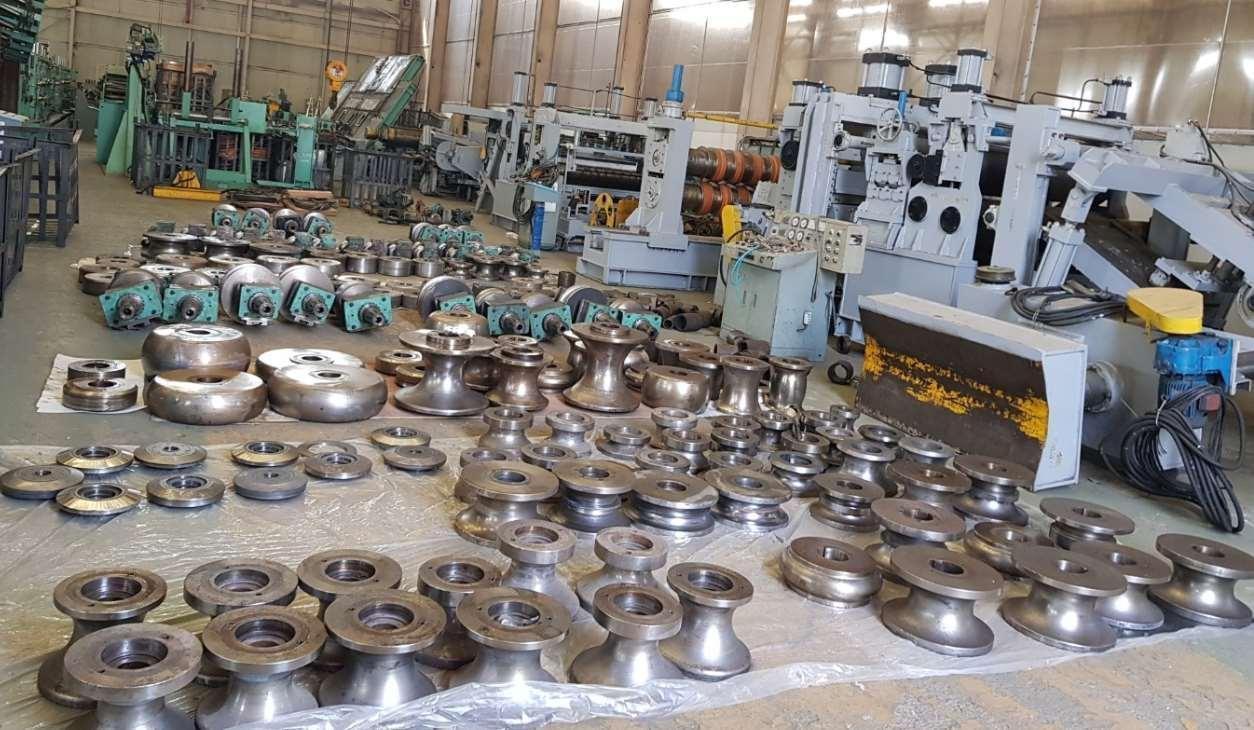

Roll Tooling:
Spare Parts
