1600mm x 3mm x 15 Ton Guida 6-HI Cut To Length Line with Flying Shear

Brand
GUIDA

Model
Not Specified

Stock #
605194

Condition
Used

Year
1992

Coil Weight 30000 pounds
Width 59 inches
Thickness .118 inches

Equipped With

Manufacturer : Guida
Year: 1992
Line Speed: 30 mpm
Line Direction: Left to Right
PLC: Siemens S7-300

Material Specifications:
Material: Stainless Steel
Thickness: 0.4- 3 mm
Width: 500-1500 mm

Coil Specifications:
Coil Weight: 15 Tons
Min/Max Thickness: 0.4-3 mm
Min/Max Width: 500-1500 mm

Sheet Dimensions:
Width Min/max: 500x1500 mm
Length Min/max: 500x6000 mm

Packing Data:
Sheet dimension:500 x 500 mm (min)
1500 x 600 mm (max)
Package size :1500 x 6000 mm
Package Weight  :2,5 ton
Package Height :500 mm

Complete Line with the Following Components:

L Type Coil Car
15 tons Weight Capacity

Mandrel Uncoiler
Hydraulic Expansion
Slidding Base
Drive Type:28 Kw ABB Reducer Motor
Powered Hold Down Roll

Roller Bottom Turn Toller
Note: It serves to open the coil from its inner side.
Thus, it is ensured that the coil is cut with the smoothest surface on top.

Paper Winder
Drive Type:3.2 Kw ABB Reducer Motor

Peeler Table

Pinch Rolls

Center position system EMG

Scrap hydraulic Shear with Scrap Box

Roll Table

PVC Applicator

PVC Pressing Pinch Roll (hydraulic)

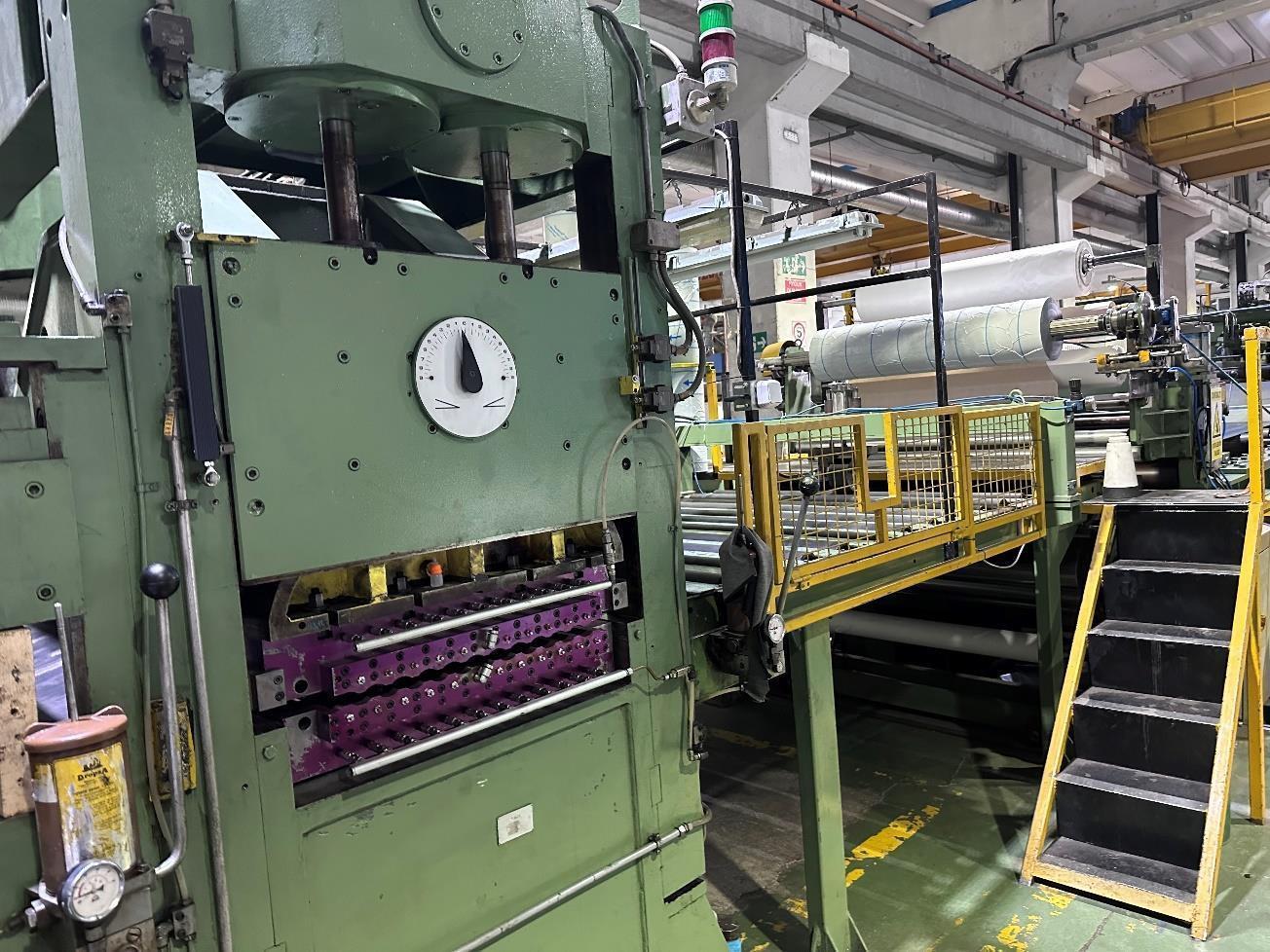

6-HI Precision Leveler
11+12 Roll Configuration
Work Roll Diameter: 40mm
Back Up Roll Diameter: 37mm
Drive Type:96 Kw ABB Reducer Motor

Roll Table

Measuring Roller (pneumatic)

Bottom PVC + paper coating
2 pcc. resistive Rollers (for sticking the paper)
Top PVC and Paper Coating

Pinch Roll
(Pneumatic) Pressing for Top PVC Coating
Drive Type:5.7 Kw ABB Reducer Motor

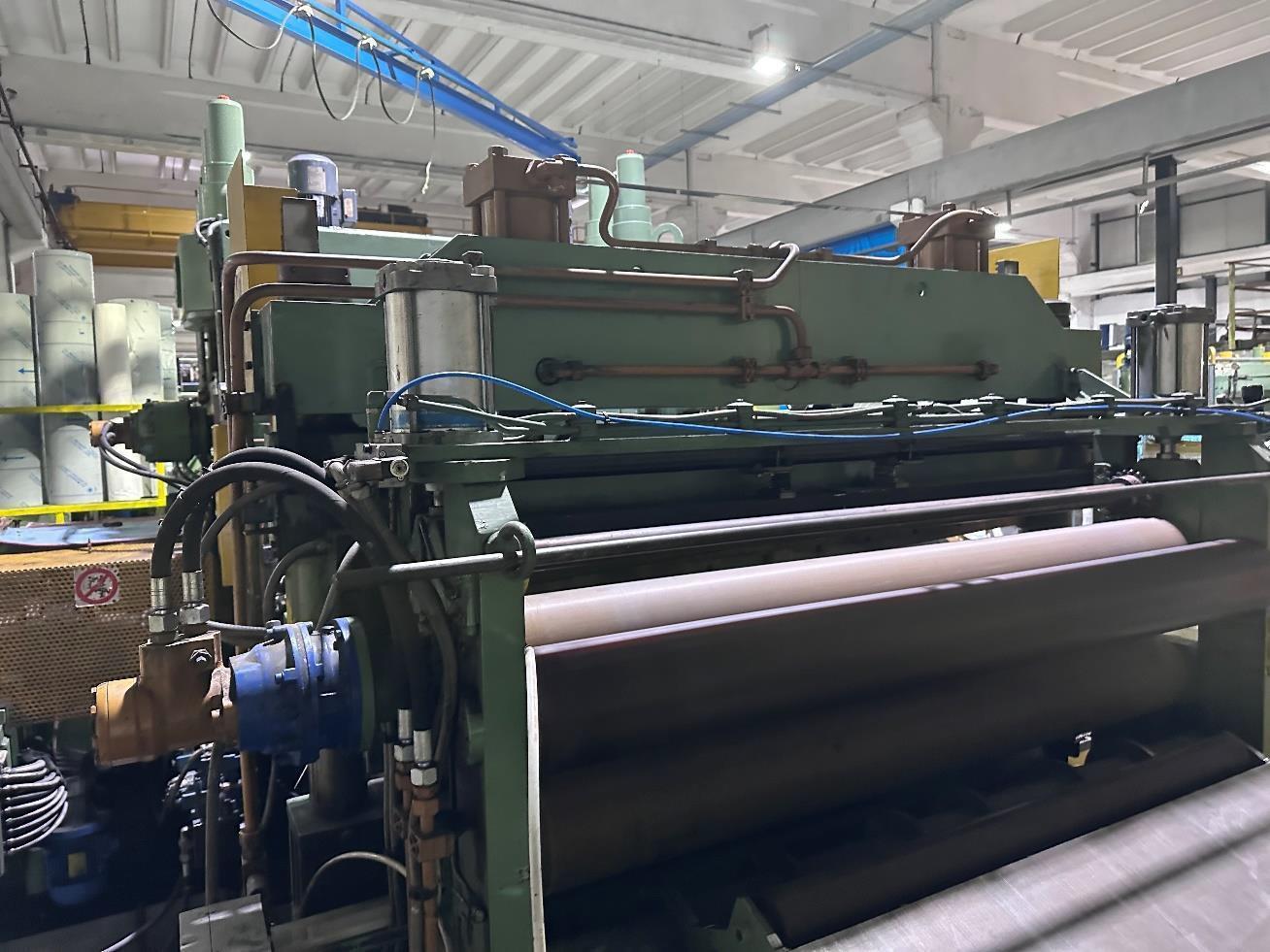

Flying Shear
Undercut Design
Drive Type:44.4 Kw ABB Reducer Motor

Telescopic Belt Conveyor (2.4 meter length)
Drive Type:7.6 Kw ABB Reducer Motor

Belt Conveyor for scrap box (1.1 mt)

Stacker Entry Belt Conveyor (3.4 mt)
Drive Type:9.4 Kw ABB Reducer Motor

Scrap box (for plate)

Stacker Entry Pinch Roll
Drive Type: It takes the drive from the belt conveyor 25- Stacker 3+3 = 6 mt
Note: Packing can be done without stopping the line on plates cut 3 meters.
Stacker side arm drive: 0.75 Kw SEW motor (4 pcs)
Stacker alignment drive:0.75 Kw SEW motor (4 pcs) 26- Stacker Conveyor 3 + 3 =6 mt

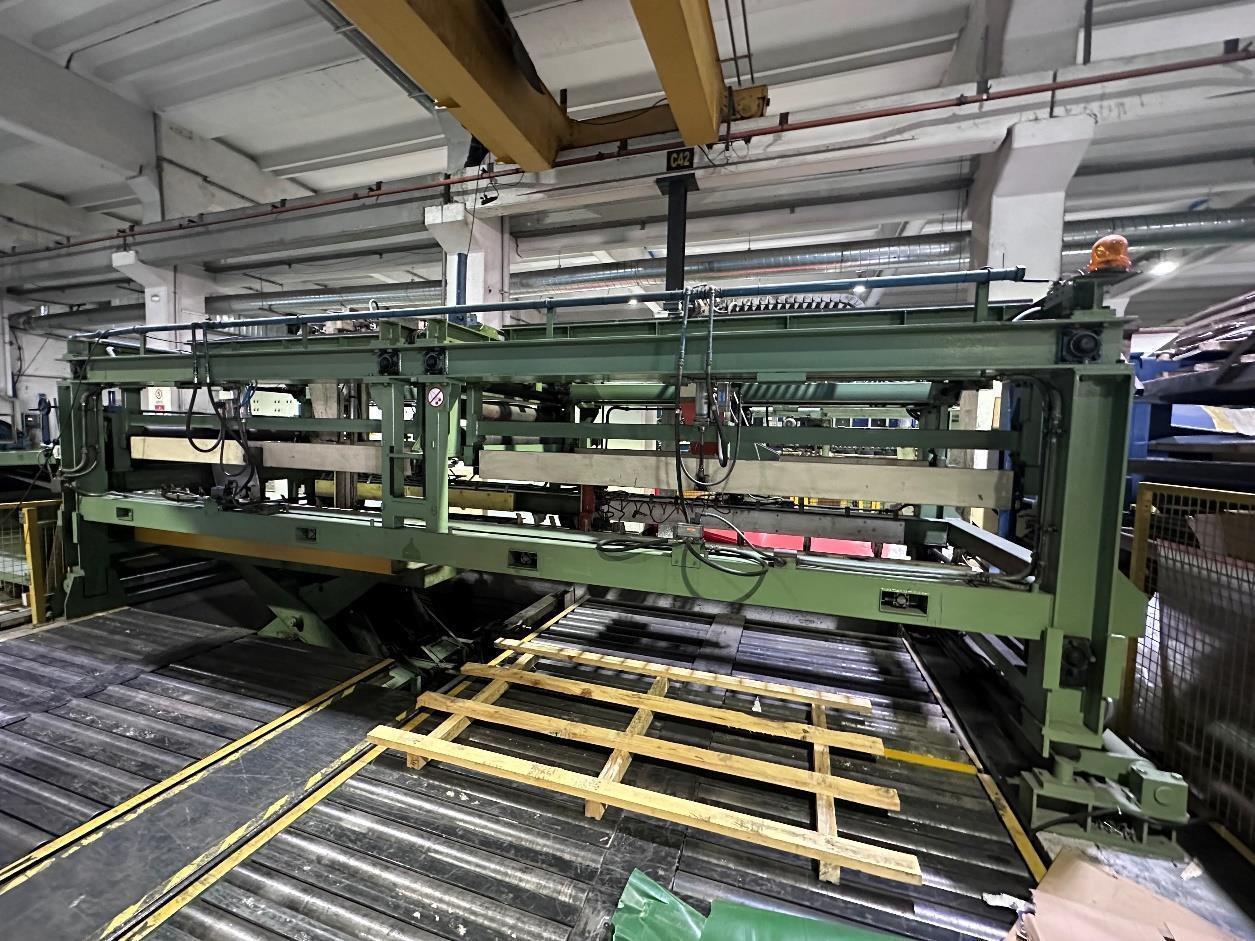

Exit conveyor 3+3 =6 meters

Scale

Automation

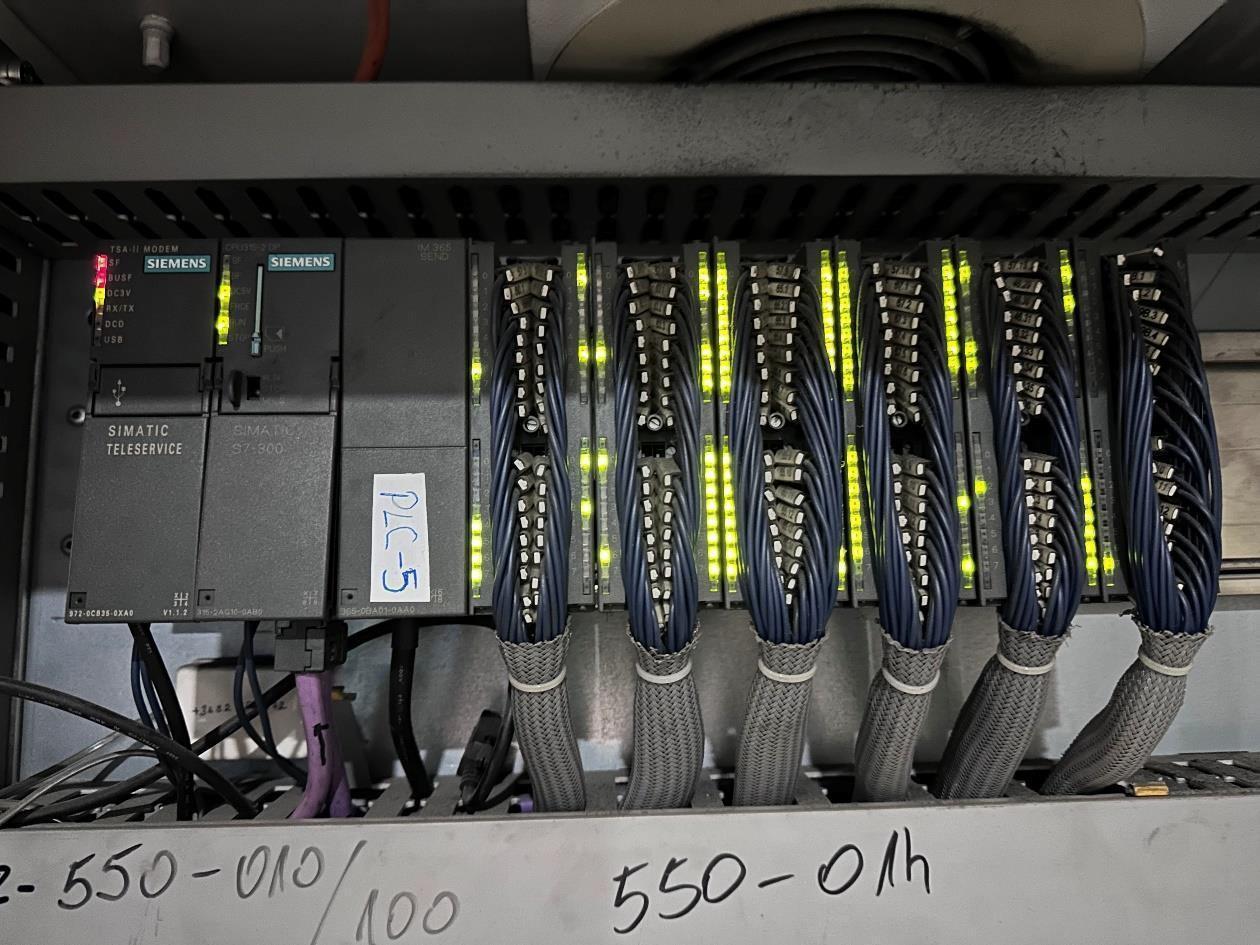

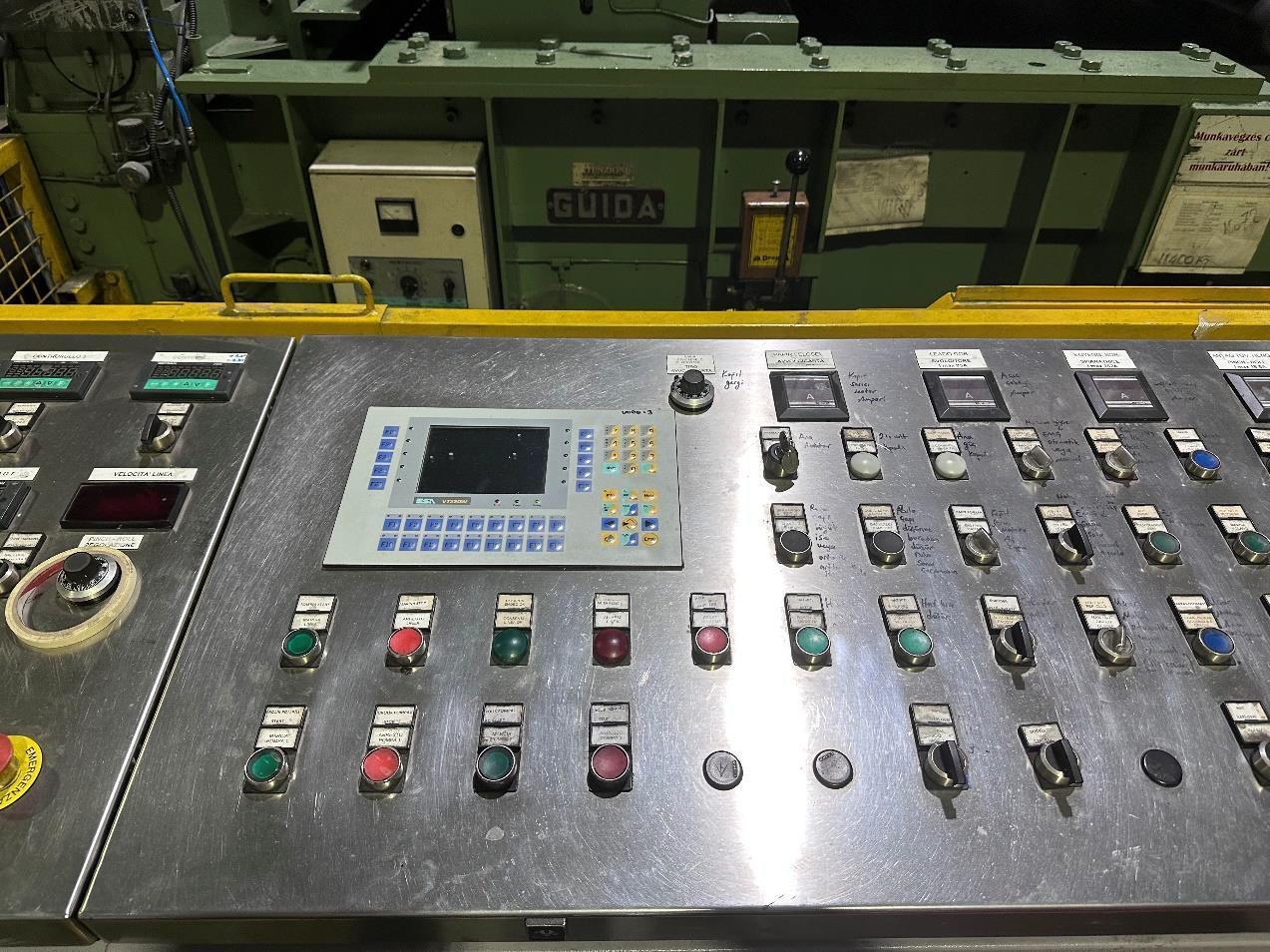

PLC Siemens S7-300 Main Control panel


Complete Line with Hydraulics, Electrics, Controls

Installed
