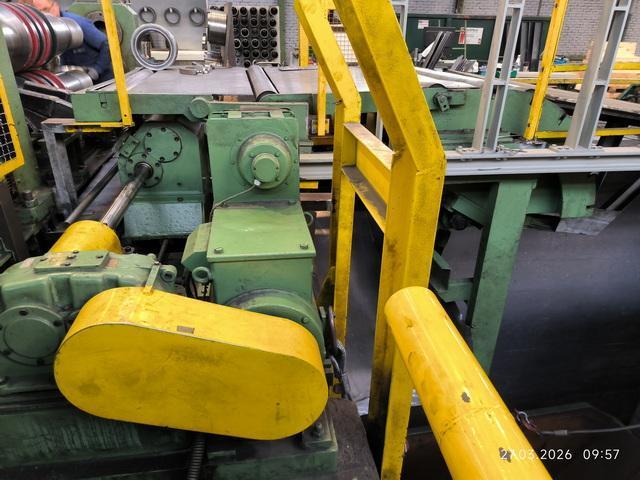

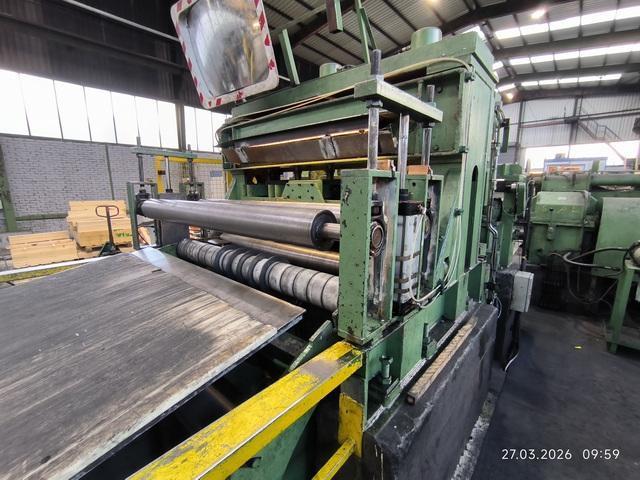

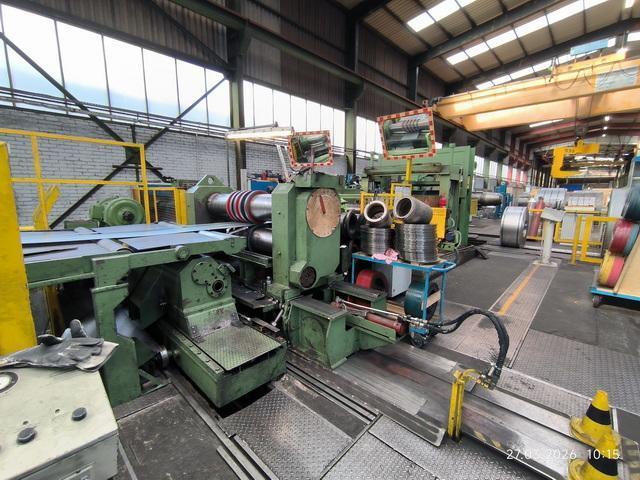

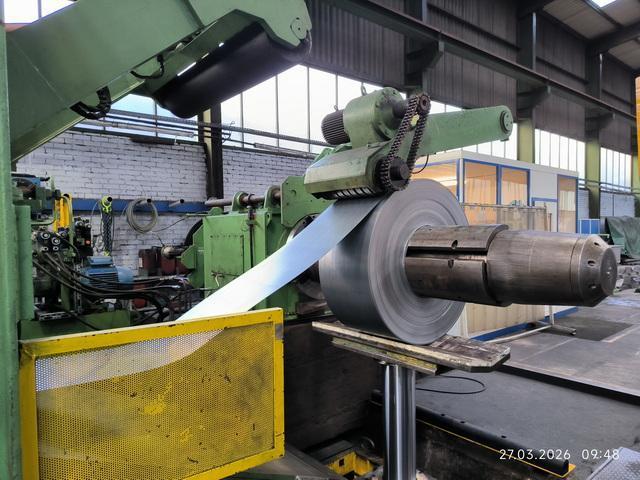

1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line
  • 1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line

1520mm x 6.5mm x 25 Ton Pekrun Loop Slitting Line

Brand
Not Specified

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
605636

Condition
Used

Year

Request a Quote
Have one to sell?
Width 1520 millimeters
Thickness 6.5 millimeters
Coil Weight 25 tons

Equipped With

General Specifications:

Coil entry width: 360 - 1520mm

Coil ID: 500 - 750mm

Coil OD: 1990mm

Material thickness: 1 - 6.5mm

Maximum coil weight: 25ton

Slitting shaft OD: 260mm



Line speed: 110m/min



Includes:

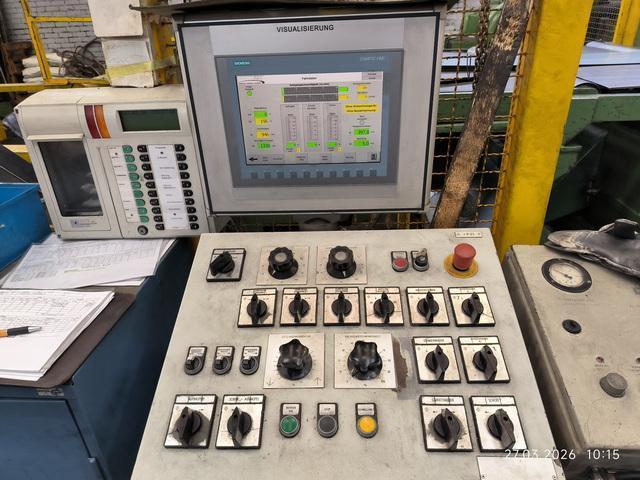

  • Siemens S7 PLC system

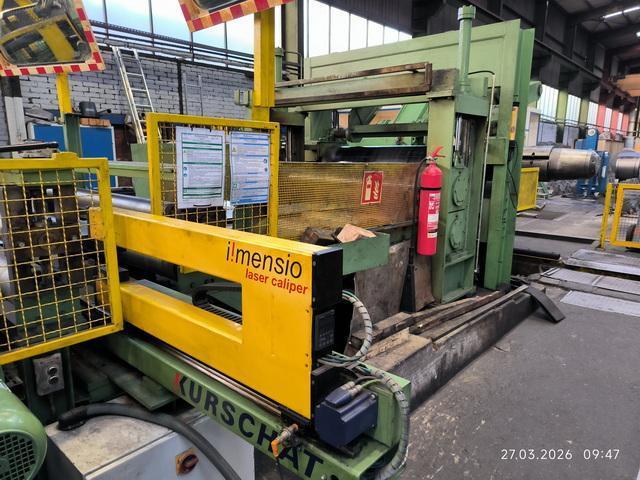

  • Kurschat laser thickness measurement system
  • Tilgert Edge guides
  • Scrap choppers with automated adjustment

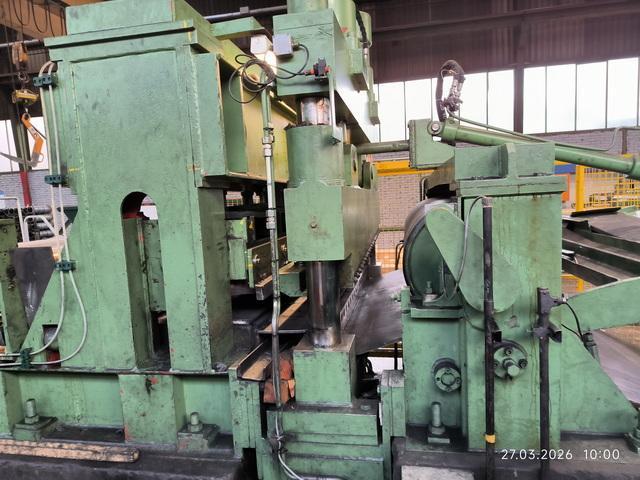

  • BKM crop shear
  • Snubber rolls
  • Seperation roll arm
  • Pit Coil cars
  • 2 - Arm Turnstyle
  • Large amount of tools
