maker: MEER/SMS MEER/ELOTHERM
year: 1985/1999/2005/2009/2012
section dimension: max. 150 x 50 mm
pipe ∅: 50 - 150 mm
wall thickness: 1,5 – 5,5 mm
reference material (tensile strength): 600 N/mm²
coil ∅: max. 2.100 mm
coil weight: max. 10 t
finish pipe length max.: 9.000 mm
round pipe ∅: according to list
rectangular pipe: according to list
working direction: left → right
speed: 100 m/min
The line consists of:

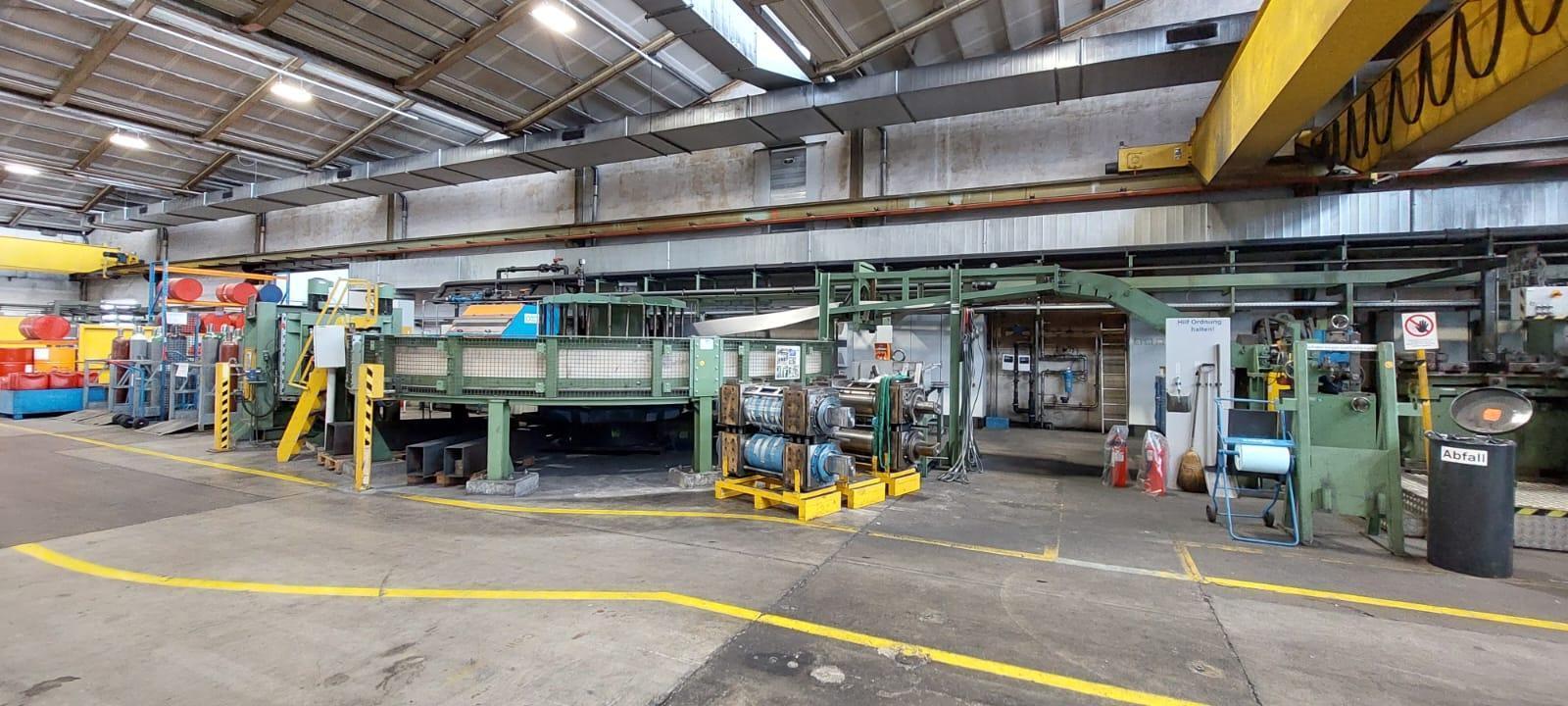

Entry Part:
maker: SMS MEER
year: overhauled 2005

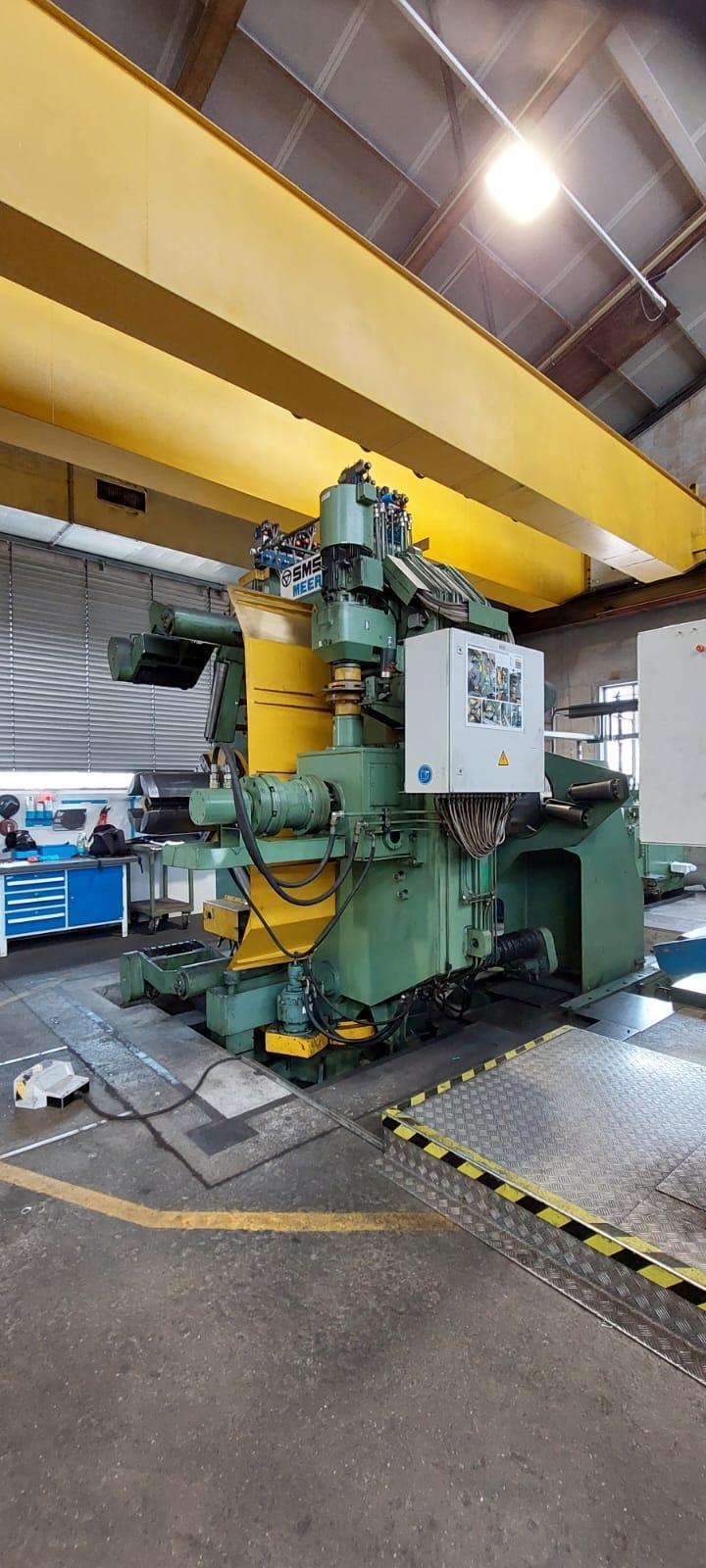

• double carousel decoiler
mandrel ∅: 508 mm
expansion: hydraulic
hold-down arm: hydraulic
turning: three-phase current motor
main drive: 2 x 18,5 kW
• coil opener/pinch roll unit/leveller
telescopic table: hydraulic
strip centering
No. of pinch rolls: 2
No. of levelling rolls: 5
levelling roll ∅
main drive
• crop shear
cut: hydraulic
movement: hydraulic
• strip tail end welding machine
welding source: MIG/MAG
clamping jaws: hydraulic
• strip guide
• strip twister/pinch roll unit/strip accumulator entry
• strip accumulator: horizontal
feeding speed max.: 175m/min
drive: three-phase current motor
• edge trimming
• exit twister

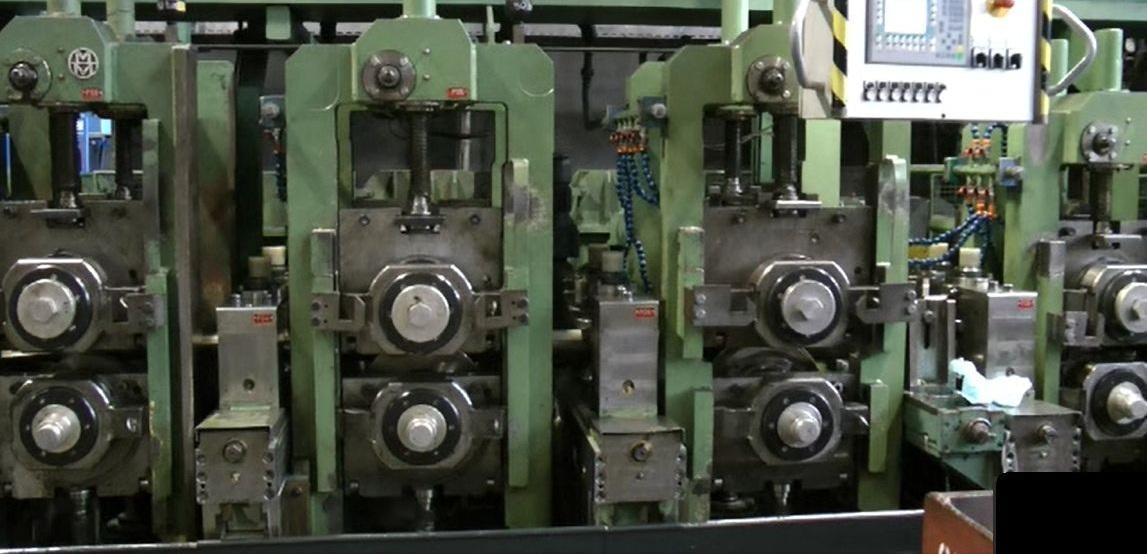

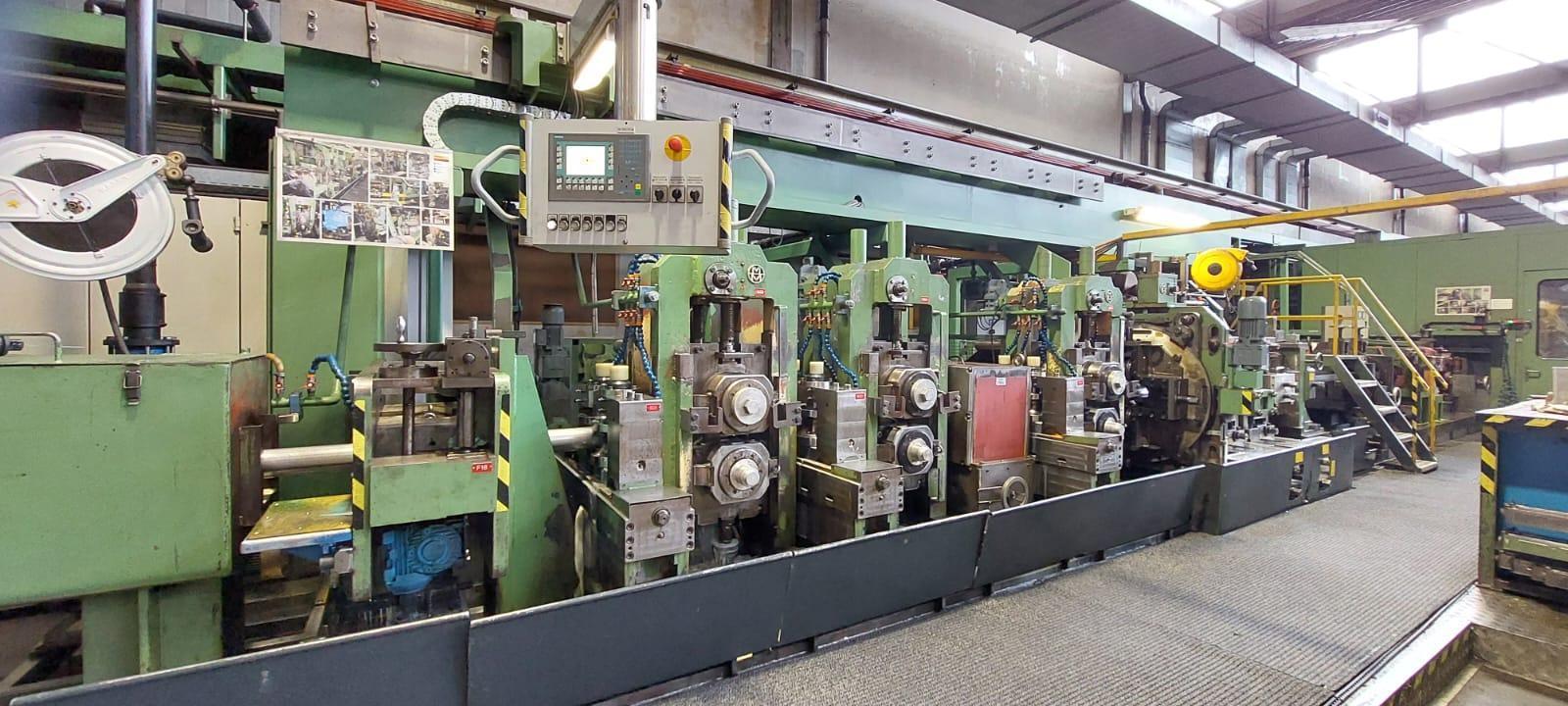

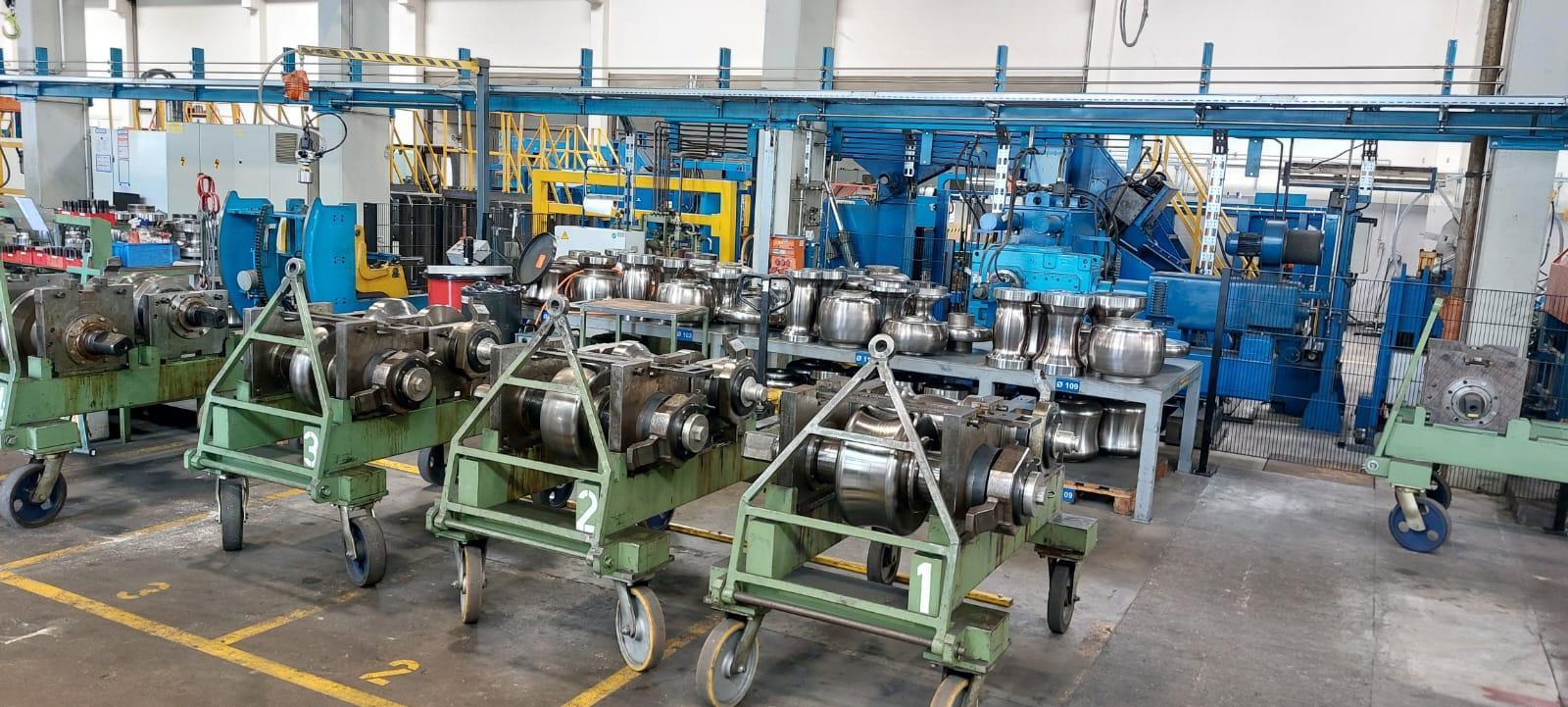

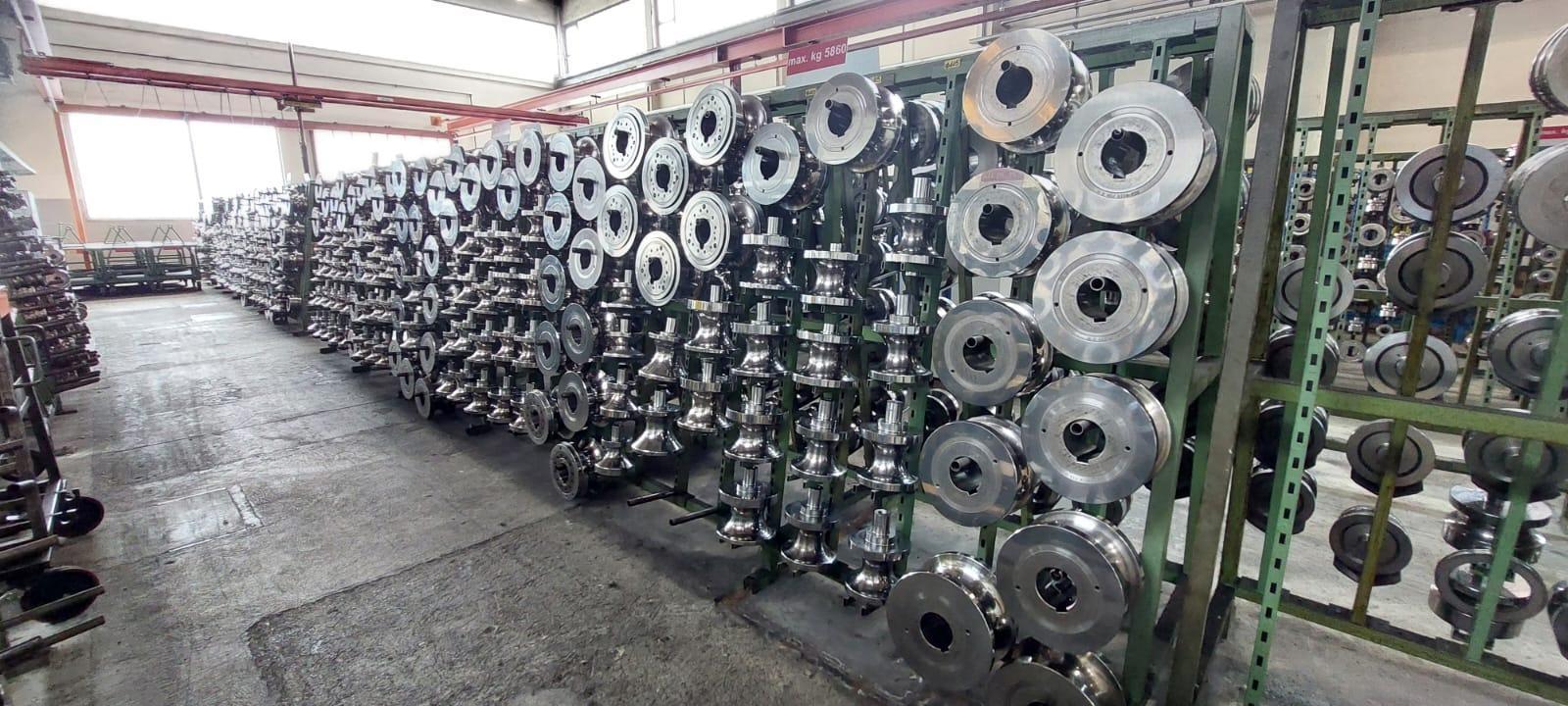

Forming Part:
maker: SMS MEER
year: 2005
No. of horizontal stands: 4
No. of vertical stands: 3
work shaft ∅: 100 mm
horizontal stand adjustment: electromechanical
horizontal stand drive
Welding Part (HF):
maker: AEG ELOTHERM
year: 1999
renewal 2nd welding circle: 2012
welding performance
outer scraper/internal scraper: not available
cooling zone
Calibrating Part:
maker: MEER
year: 2005
detwisting stand
round calibrating
No. of turk heads: 3
No. of vertical stands: 3
Separation:
maker: MEER
year overhauled: 1999
design: flying saw
speed max.: 100 m/min
retraction max.: 132 m/min
separation process: cold saw/hot saw
cold saw drive/hot saw drive: 15/55 kW
cooling: emulsion
saw blade: ∅ 400 – 500 mm
Edge Bevelling:
maker MAIR
No. of cutting heads 2
blowing out
Bundling:
maker: MARTI
method: hexagonal
hydraulic: Rexroth
electrics: SIEMENS S7
