1500mm x 6.5mm KCH / Stamco Hydrochloric Pickling Line 1998

Brand
KCH

Model
Not Specified

Stock #
604567D

Condition
Used

Year
1998

Equipped With

Year:  1998
Brazilian Built / Austrian Technology
Capacity:  175,000 Ton/Year

Thickness Range:  2mm - 6.35mm.   (.080" - .250")
Hydrochloric Acid
Coil Width Range:  1500mm- 650mm. (60" - 26")
Coil Weight Capacity:  60,000#
Max Line Speed:  100 Meters/Min. (325 FPM)

Complete Line Featuring

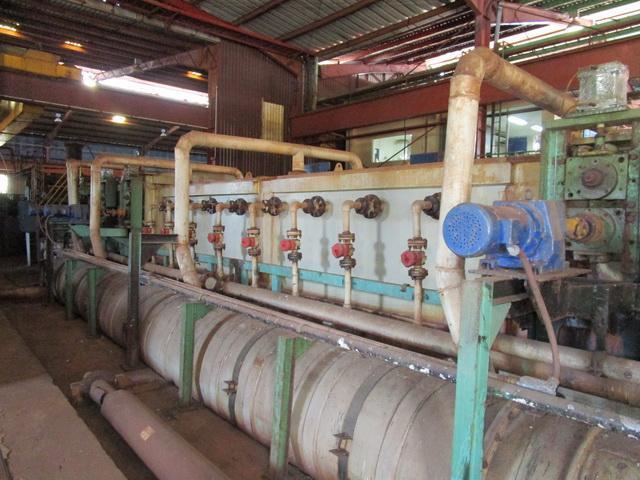

3 Tank Design

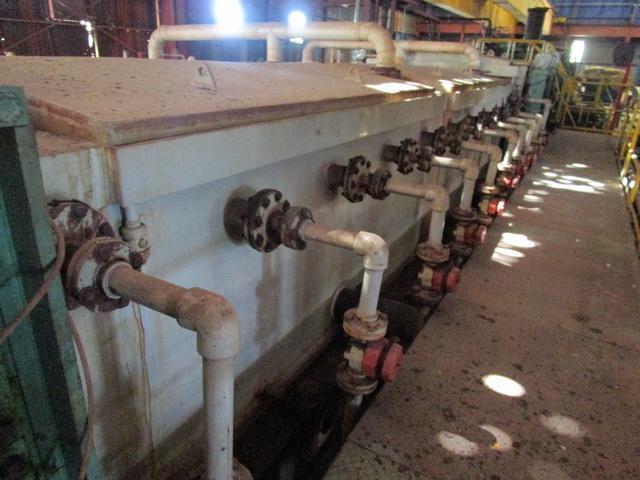

Polypropylene Lined Tanks and Covers
Mandrel Uncoiler with Outboard Support
5 Roll Coil Breaker
Crop Shear
Pre-Wash Station
Rinse Section with Air Dryer
Edge Trimmer & Scrap Choppers
Exit Crop. Shear
Recoiler

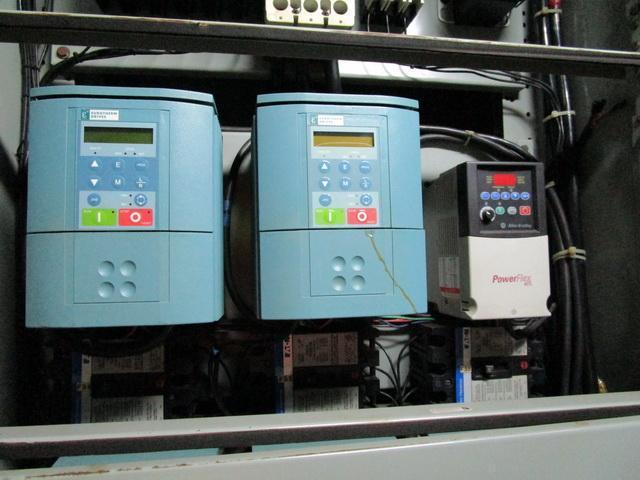

Eurotherm Digital Drives
Parker SSO Digital Drives
Siemens 9200 Controller G
GE Fanuc Digital Readouts

Dust Collectors & Filtration System
Fume Exhaust
Waste Water Treatment Plant
Acid Storage Tanks

OPTIONAL ACID REGENERATION PLANT AVAILABLE AS A PACKAGE
