14" x 2.875" x 6,000# Ruesch Slitting Line

Brand
RUESCH

Model
Not Specified

Stock #
604813

Condition
Not specified

Year

Width 14 inches
Thickness 2.875 inches
Coil Weight 6000 pounds

Equipped With

Capacity: 14" x 0.005" - 0.060"
Line Direction: Right to Left

Consisting of:

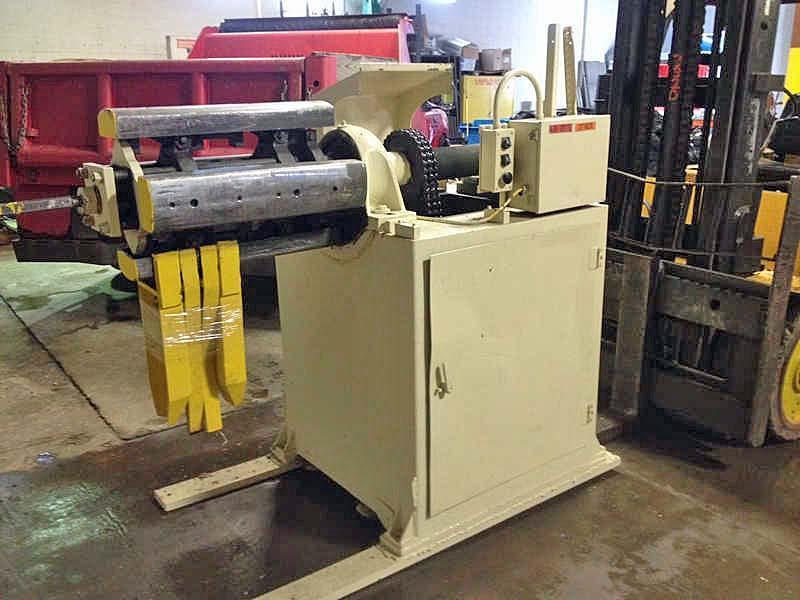

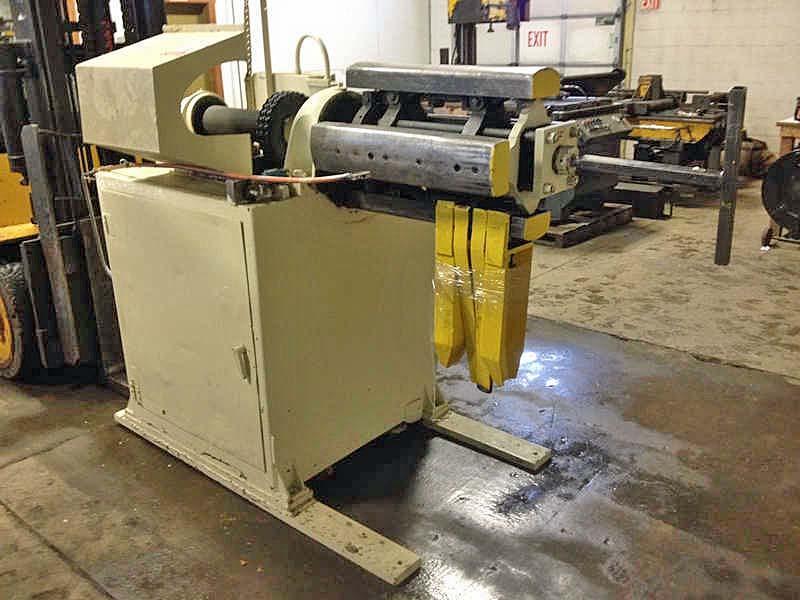

-Uncoiler: Rowe
  Capacity: 7,500 lbs
  Model: 7520-DS/L
  Manual Expansion: 17" - 20"
  27.5" Face Mandrel
  (4) Segment Mandrel
  Link Type Expansion
  (4) Segment Mandrel
  Motorized with Loop Control Arm
  2 Hp, AC Motor
  Electric Clutch and Brake
  Includes 4 Keepers
  51" Passline from floor to center of Mandrel
  Overall Size: 72" L x 38" W x 60" High

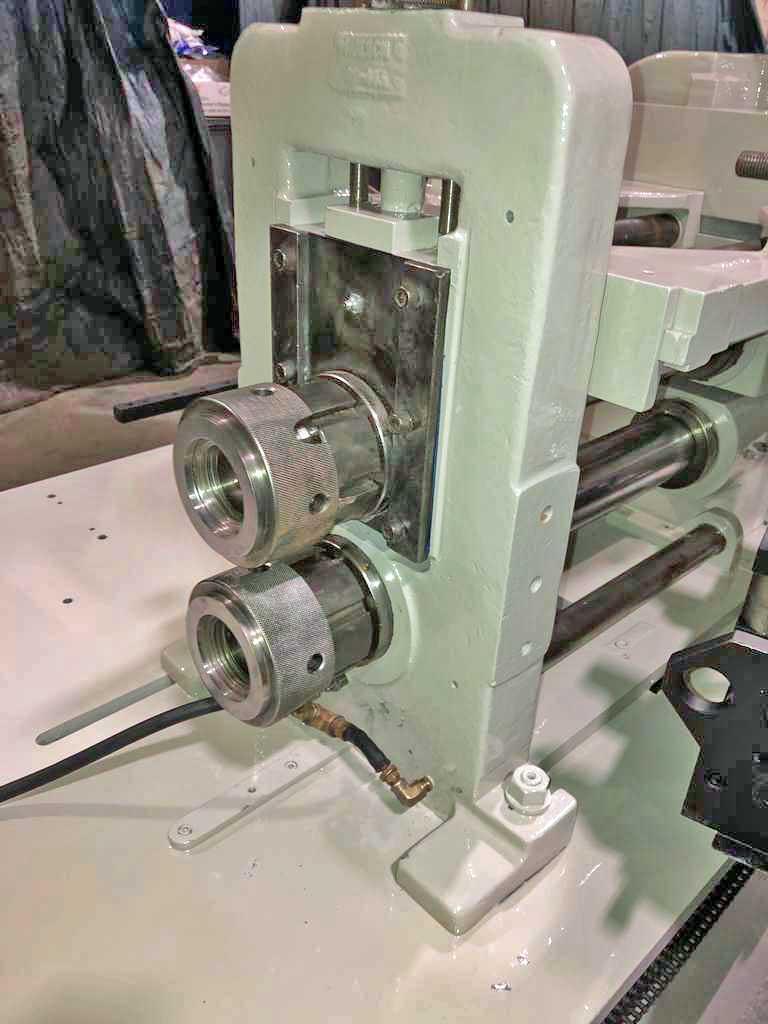

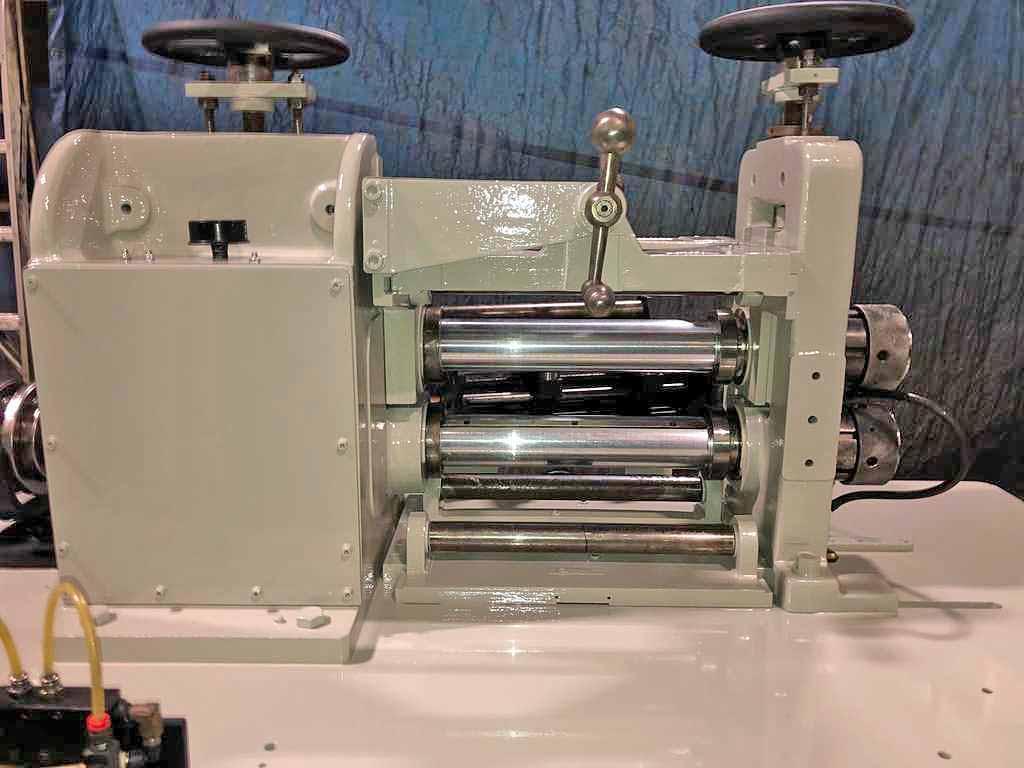

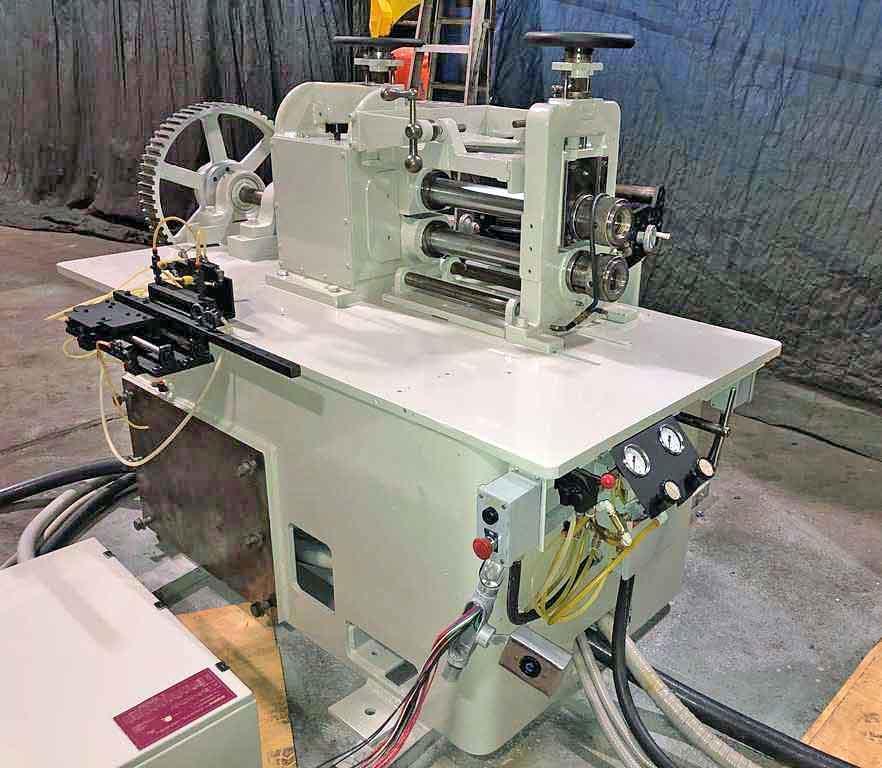

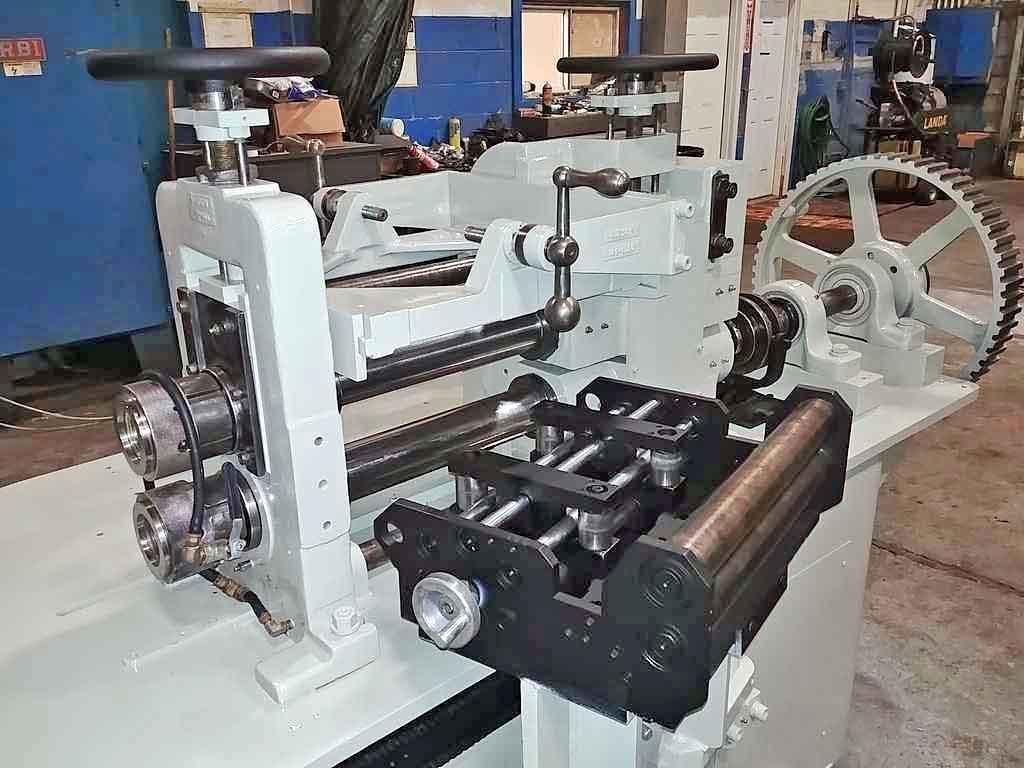

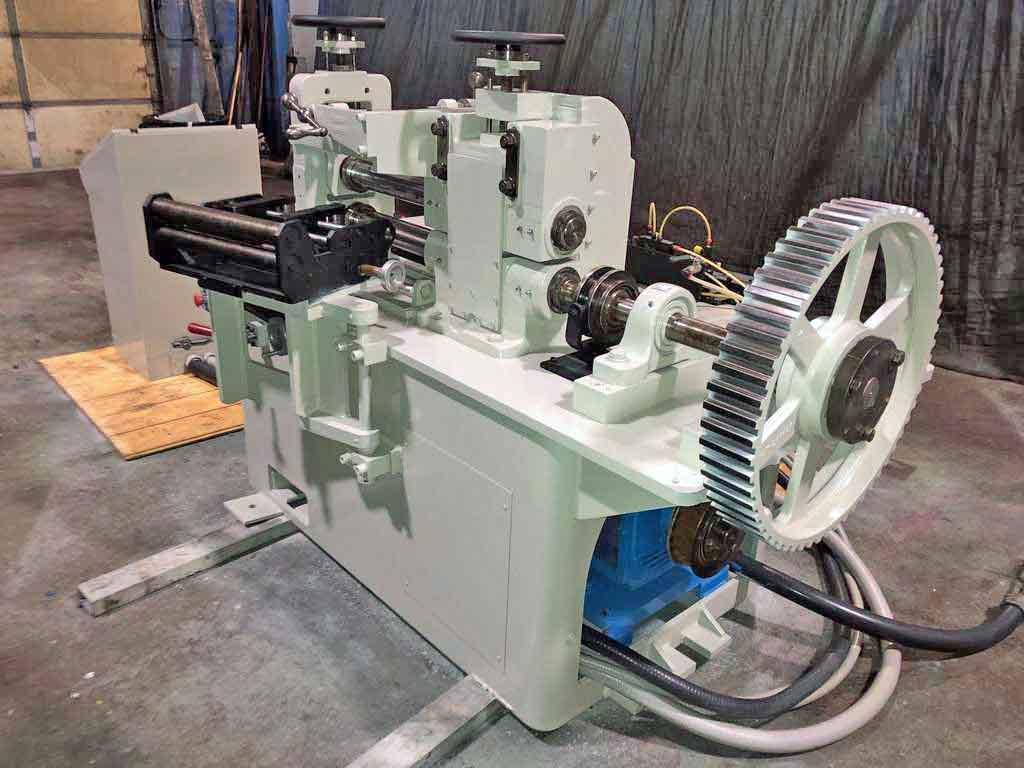

-Slitter Head:
  N 2535
  2.875" Dia. x 14.5" Face Arbors W/Jet Nuts
  Entry Passline Roll

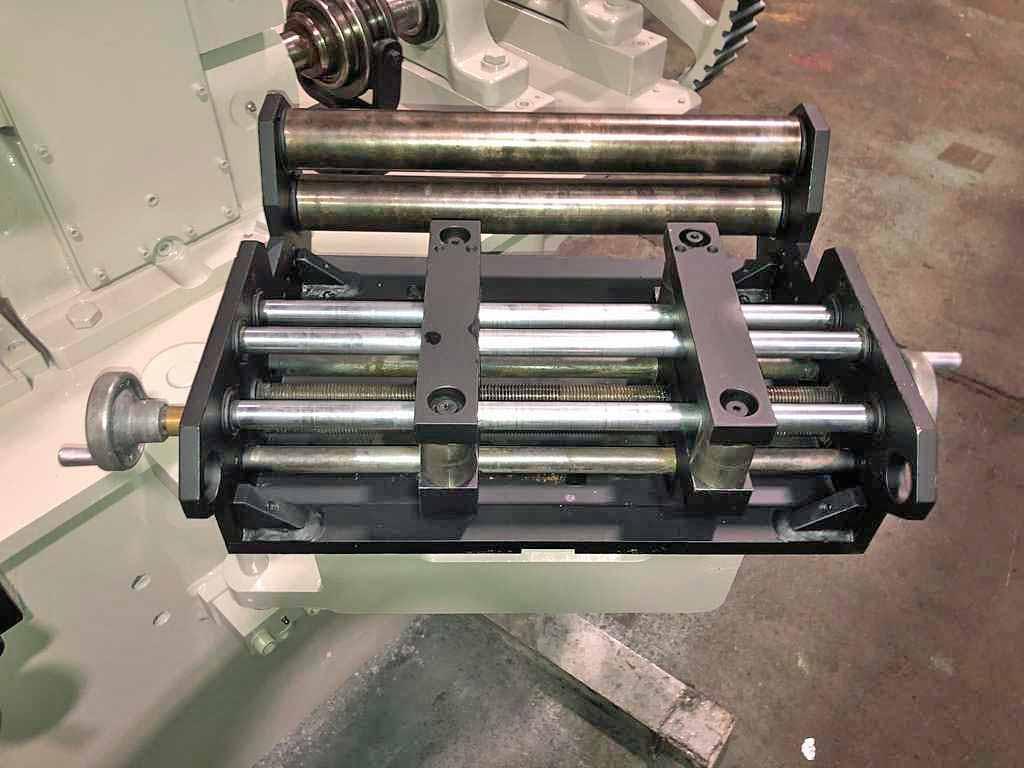

  Entry Side Guides, Manual Adjustment
  Steel Stripper Ring Assembly
  Exit Scrap Guides, Air Cylinder Operated
  30 HP DC Motor, 230 V

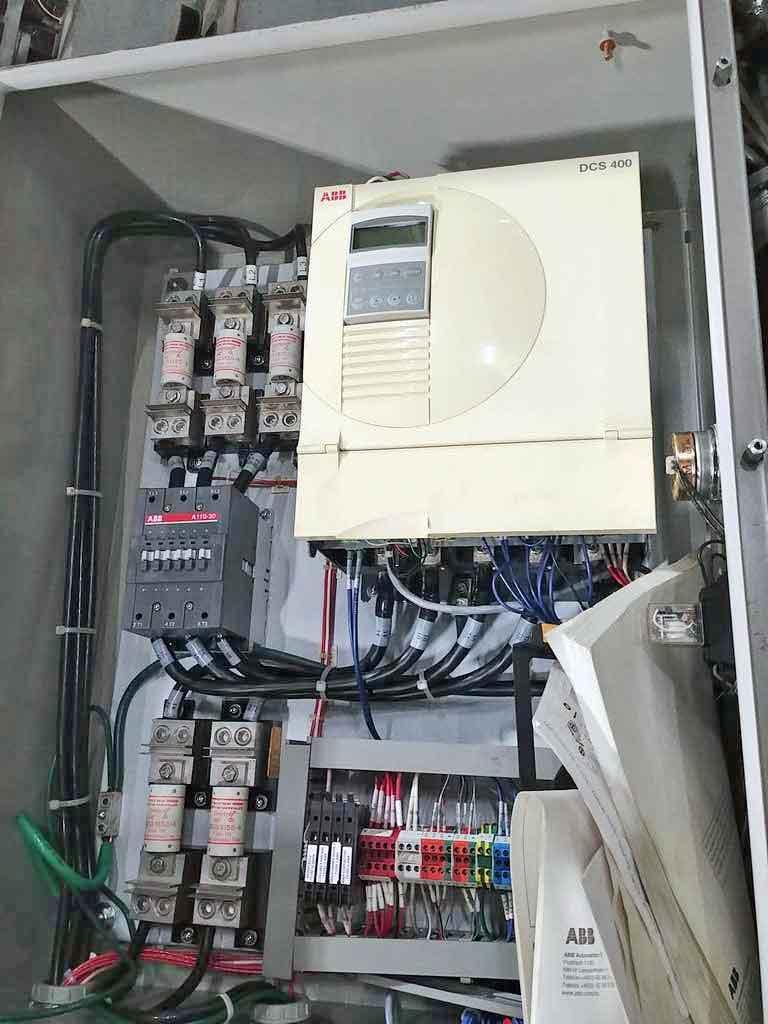

  ABB DCS-400 SCR Control - New in 2003
  Common Drive with Recoiler
  Overall Size: 86" L x 55" W x 59" High

-Scrap Winder:
  AC Drive Motor
  Wichita Clutch

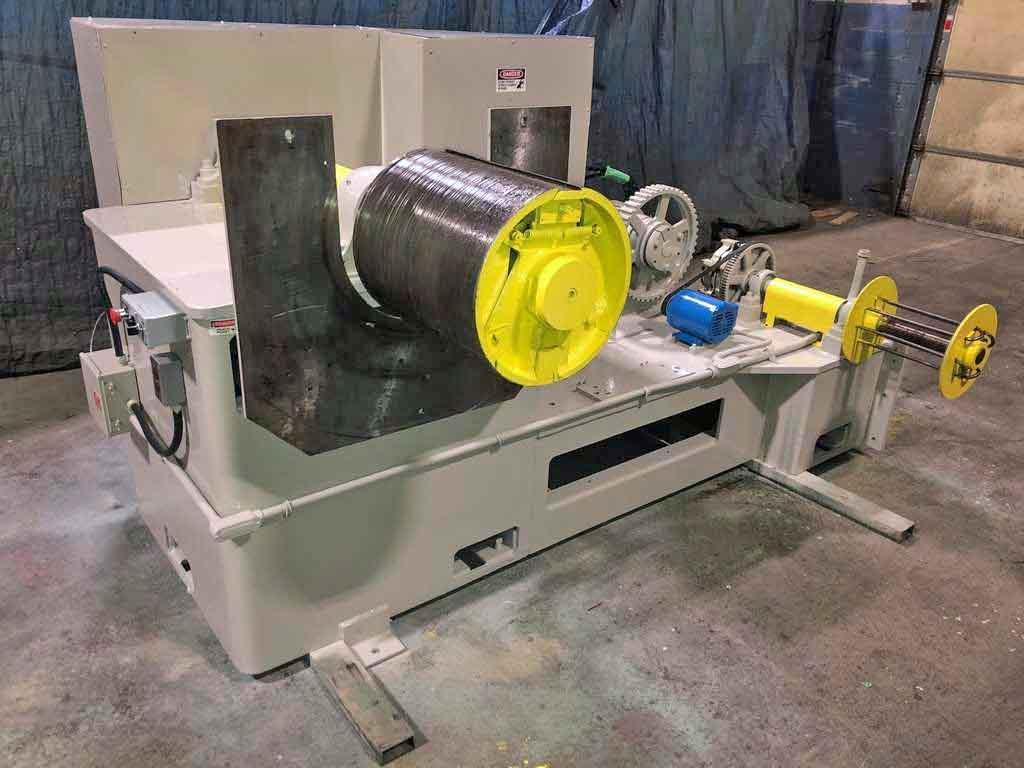

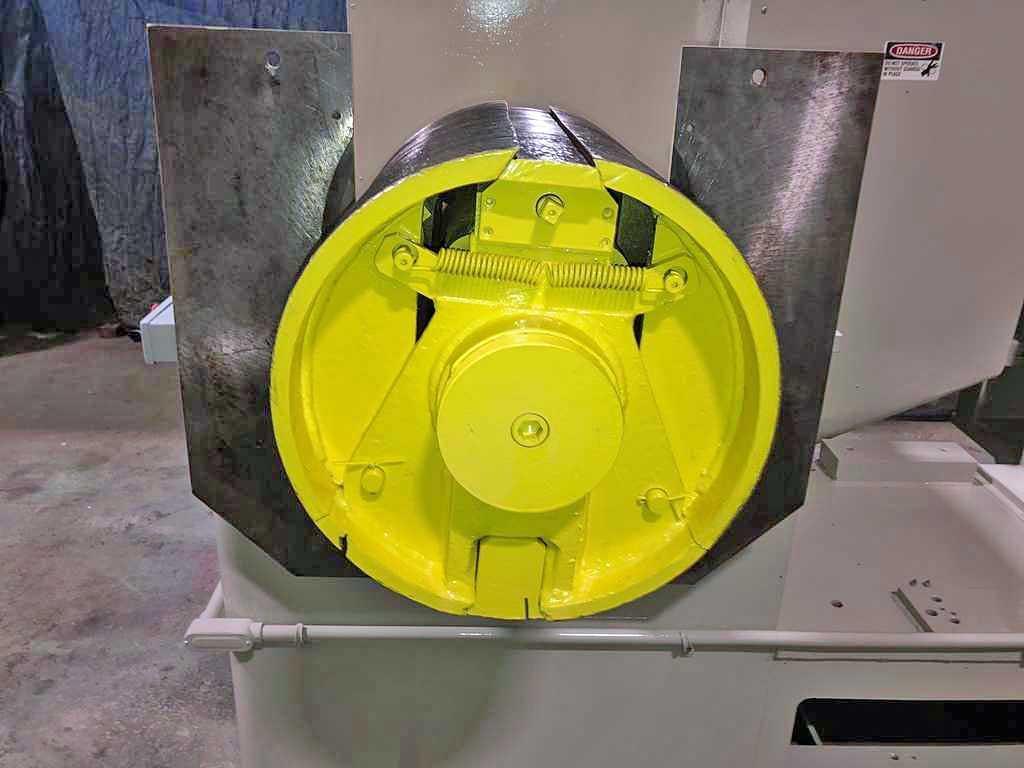

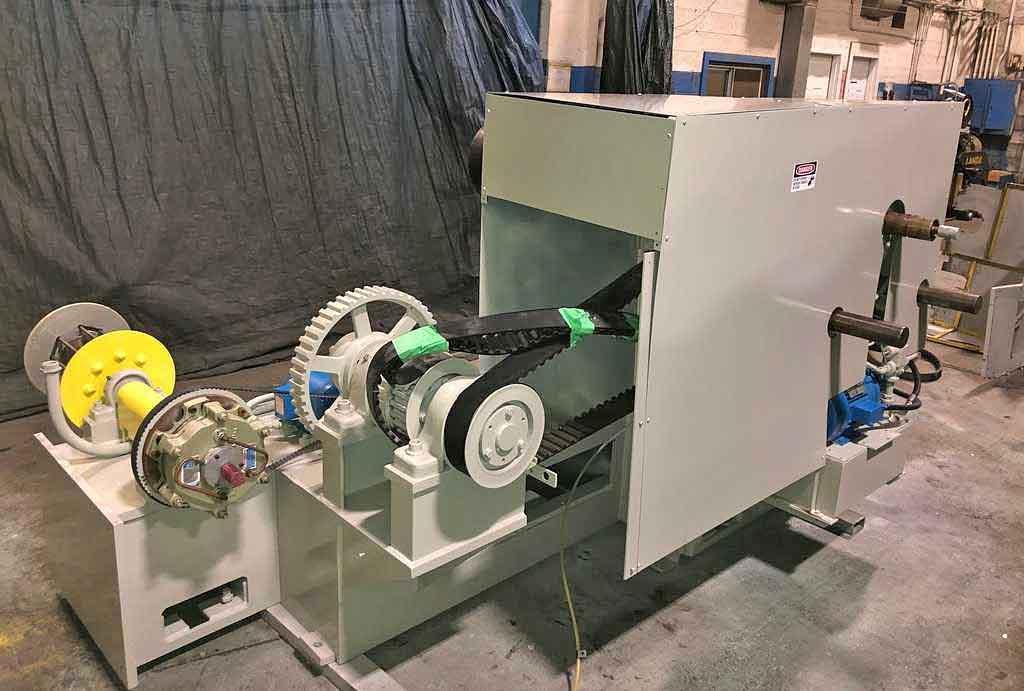

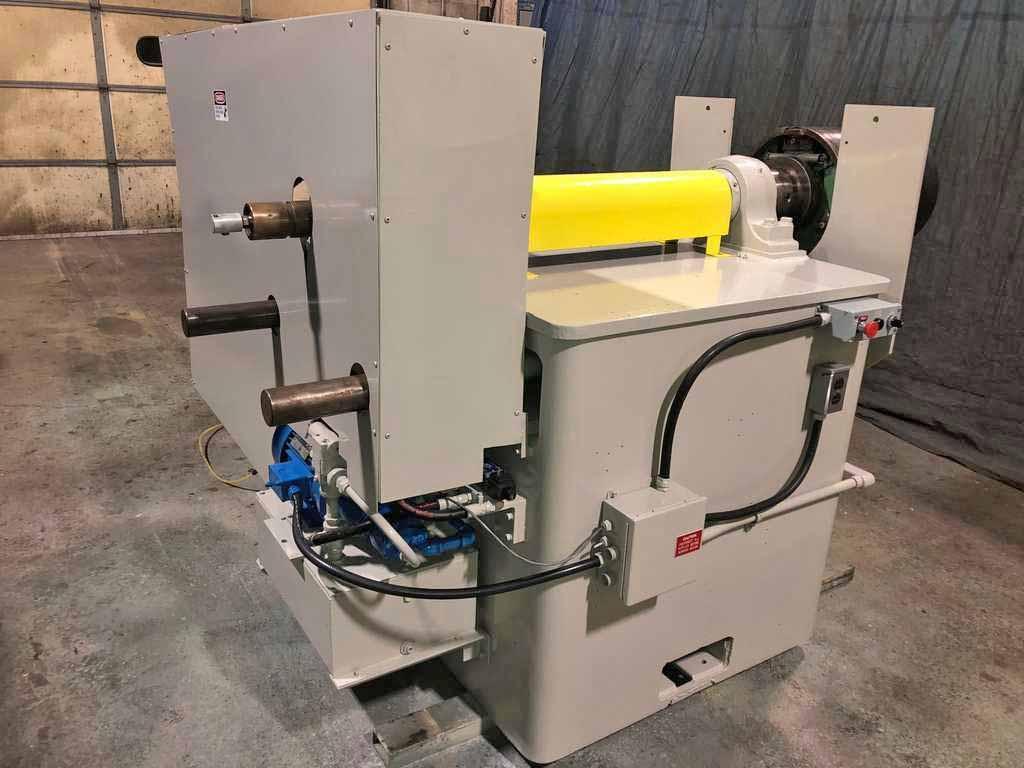

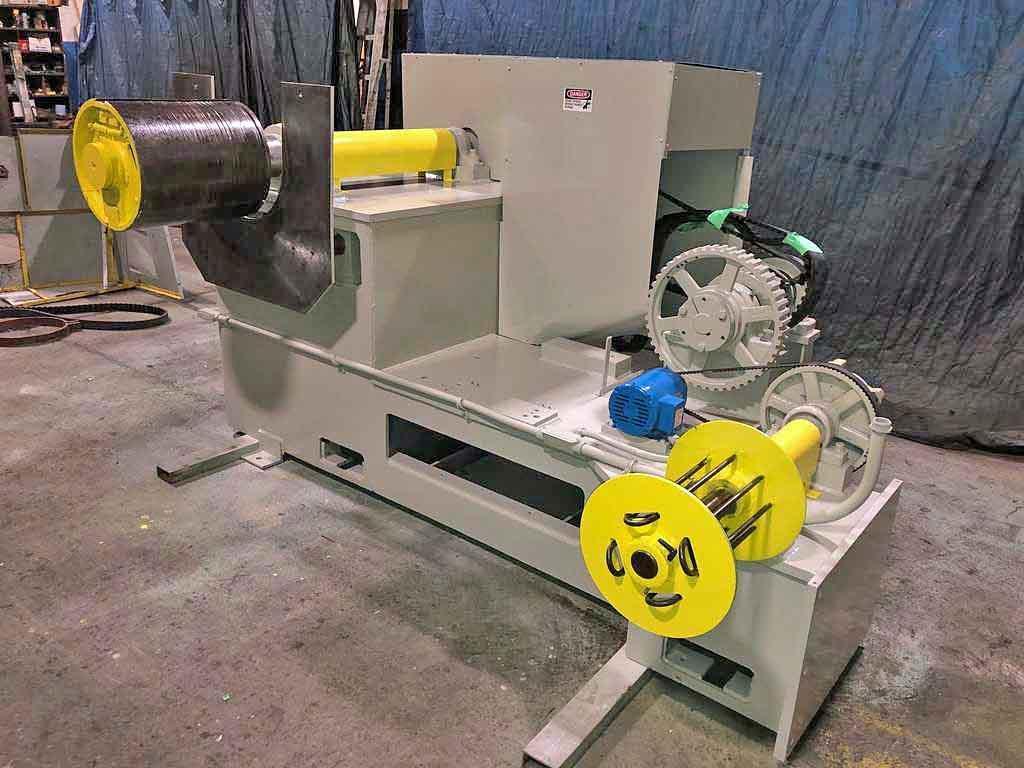

-Recoiler:
  16" Dia. x 18" Face Drum
  Manual Expansion
  Material Slot
  Hydraulic Pushoff
  Wichita Water Cooled Brake
  Passline: 49.5" from Floor to Center of Drum
  (Common Drive from Slitter Head)
  Self-Contained Hydraulic Power Unit
  3 HP AC Motor, 230/460 V
  Overall Size: 118" L x 88" W x 66" High

-Tooling Included:

-KNIFE COUNT:
-.500" x 5.337 od.:  11
-.198" x 5.723 od.   32
-.124" x 5.285 od.:   5
-.185" x 5.636 od.:   6
-.124" x 6.000 od.:  15
-.124" x 5.493 od.:  10
-.245" x 5.685 od.:   5

SPACERS:
-3":         2
-2":         2
-1":         6
-.500":      9
-.375":      6
-.325":      14
-.250":       7
-.220":      12
-.125":       8
-.091":      10
-.062":      10
-.031":       5

STEEL RINGS:
-1":         14
-.500":      23
-.375":      12
-.312":      16
-.250":      26
-.217":       6
-.185":       7
-.125":      26
-.090":      11
-.062":      18
-.030""      16

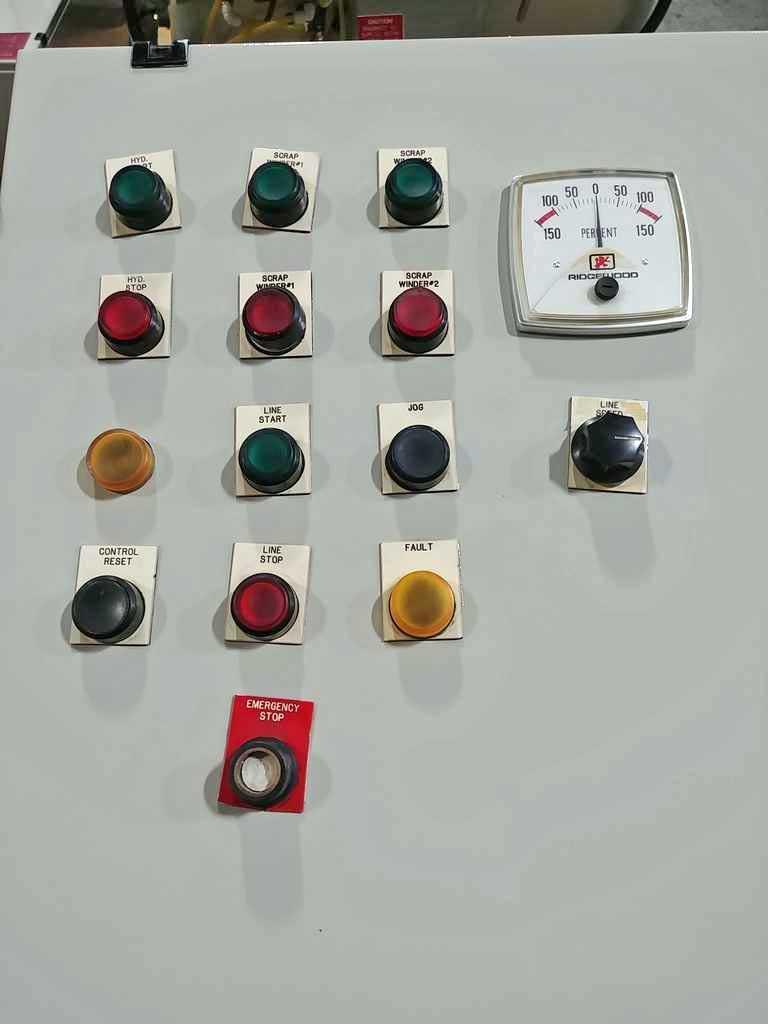

-Main Operators Panel: New in 2003
