Tube Diameter Range: 9.5mm - 12.7mm (3/8” & 1/4”)
Wall Thickness: .4mm - 1.2mm
Strip Width: 29mm - 40.5mm
Tube Length: 4000mm - 6000mm
Line Speed: 60 Meters/Min
Complete Line With:

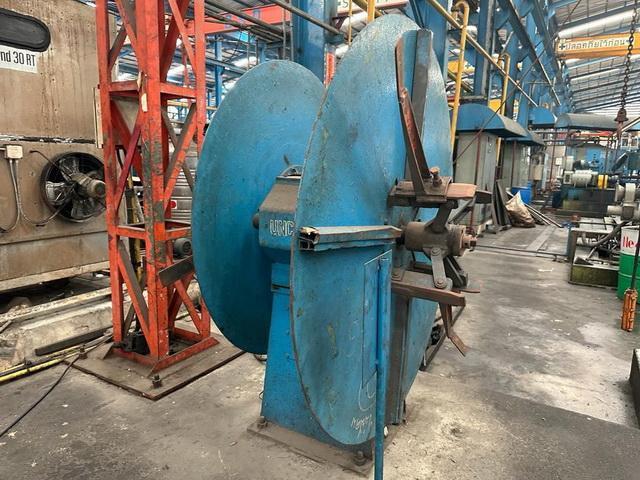

5,000# Double End Uncoiler
Coil ID: 420mm - 520mm
Coil Width: 29mm - 100mm
Butt Welding Station
Vertical Floop Accumulator
Max Strip Width: 230mm
Strip Thickness: .4mm - 1.2mm
Push Button Operator Station

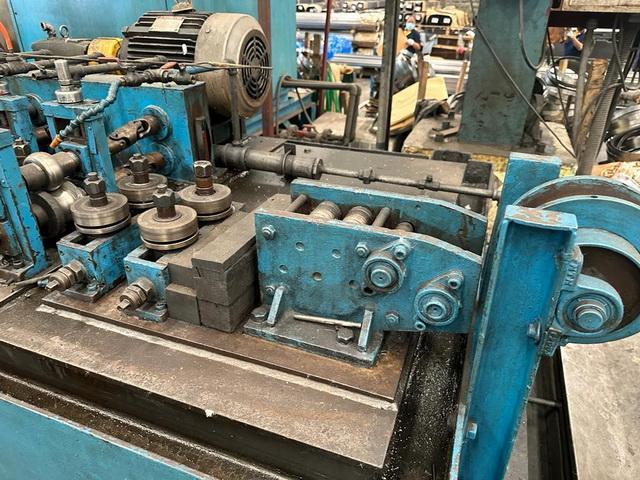

Forming Mill
Entry Flattener
2 Sets Edge Guides

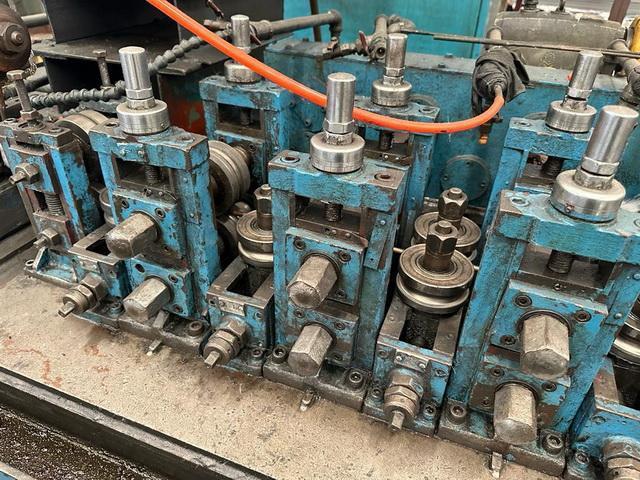

4 Forming Stands
4 Side Idler Rolls
3 Finn Pass Stands
2 Side Idler Rolls
Universal Drive Mill
11 KW Motor, 1740 RPM
150 KW BSF Welder (Bosung)
Squeeze Roll Stand
2 Roll Weld Box

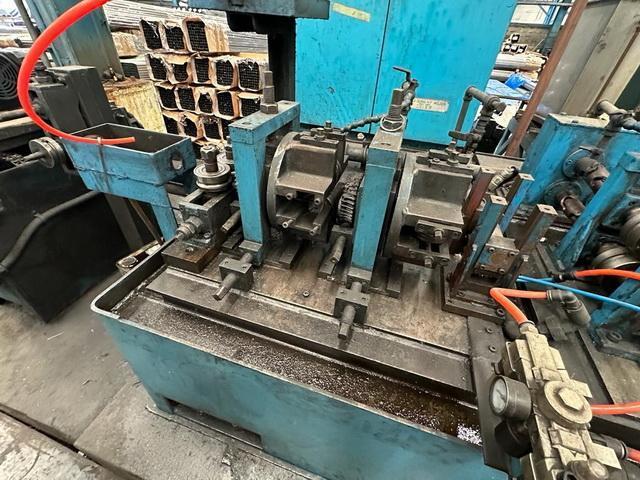

2 OD Scarfing Stands
Bead Winder
Ironing Stand
Cooling Trough

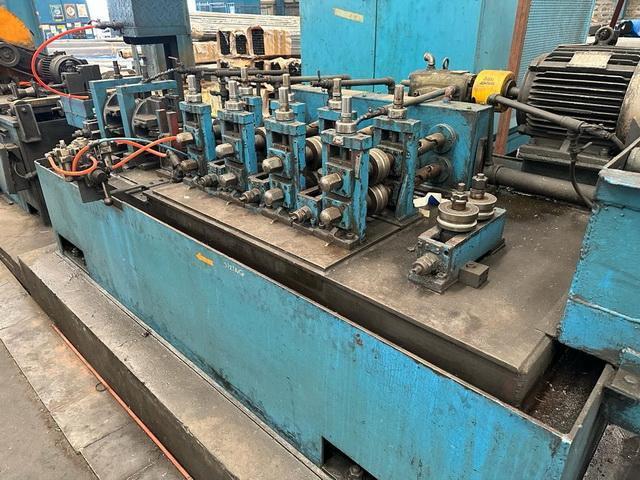

Sizing Mill
Entry Tube Guide

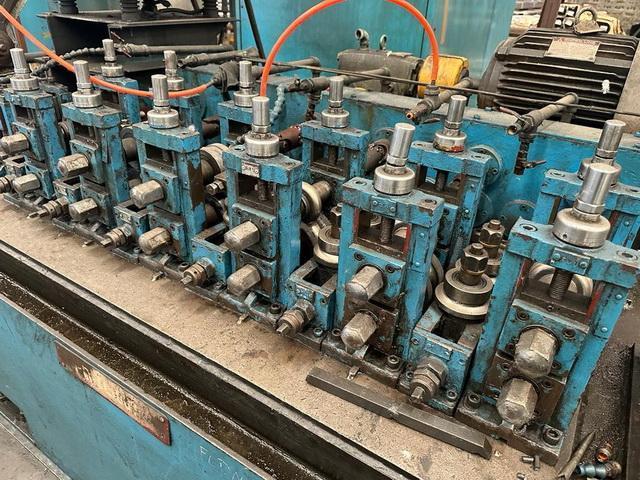

4 Sizing Stands
3 Side Idler Rolls
11 KW Drive
Universal Drive
Measuring Roll
2 Turks Heads

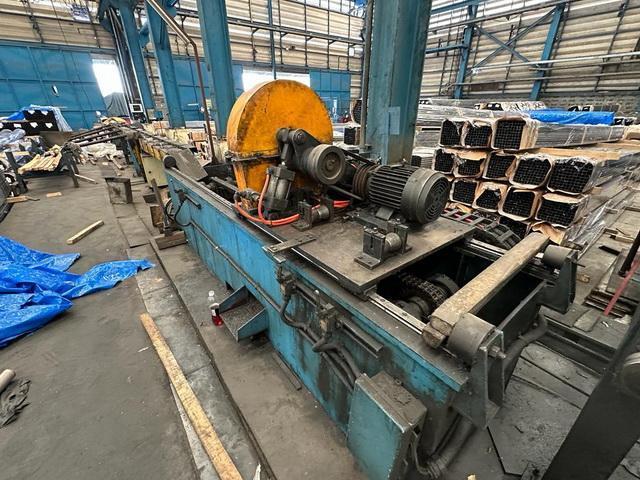

Flying Saw Cut-Off. (10 Years Old)
6 Meter Length
15 KW AC Motor
Digital Controller
15 KW Inverter
Run Out Dump Table
2 Sets of Tooling
PLC Controller

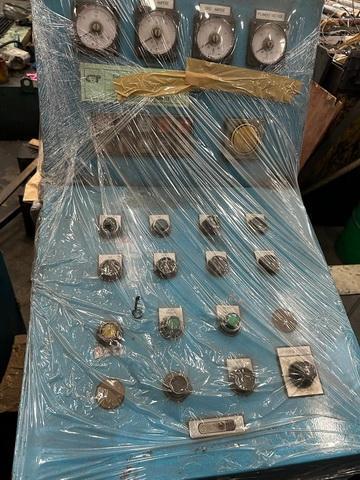

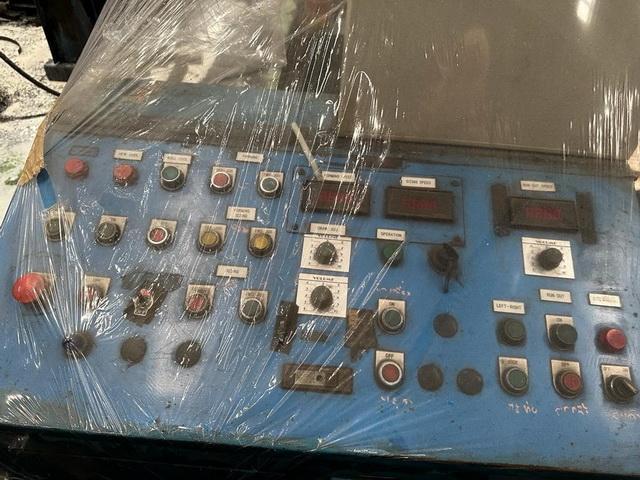

Operator Push Button Stations
