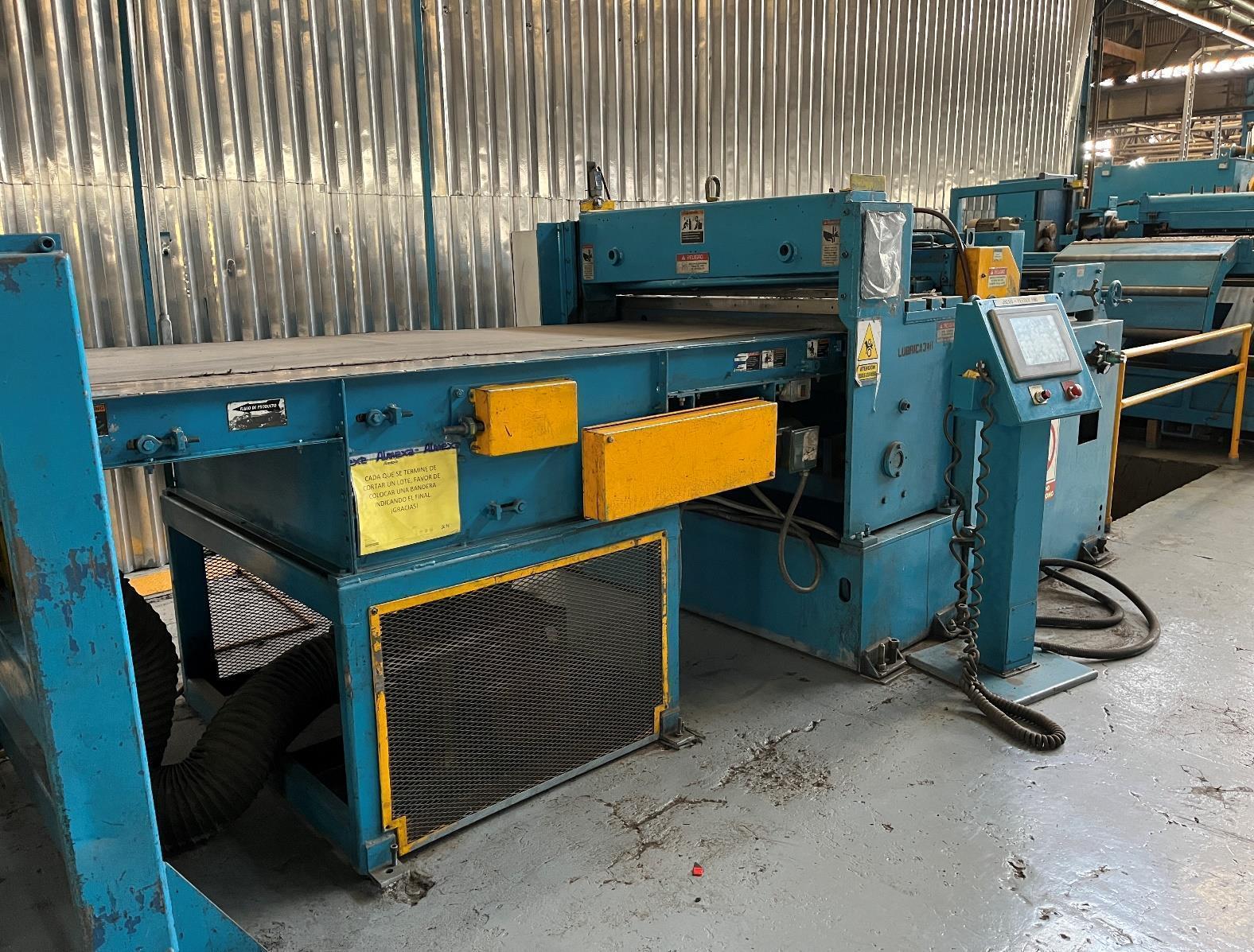

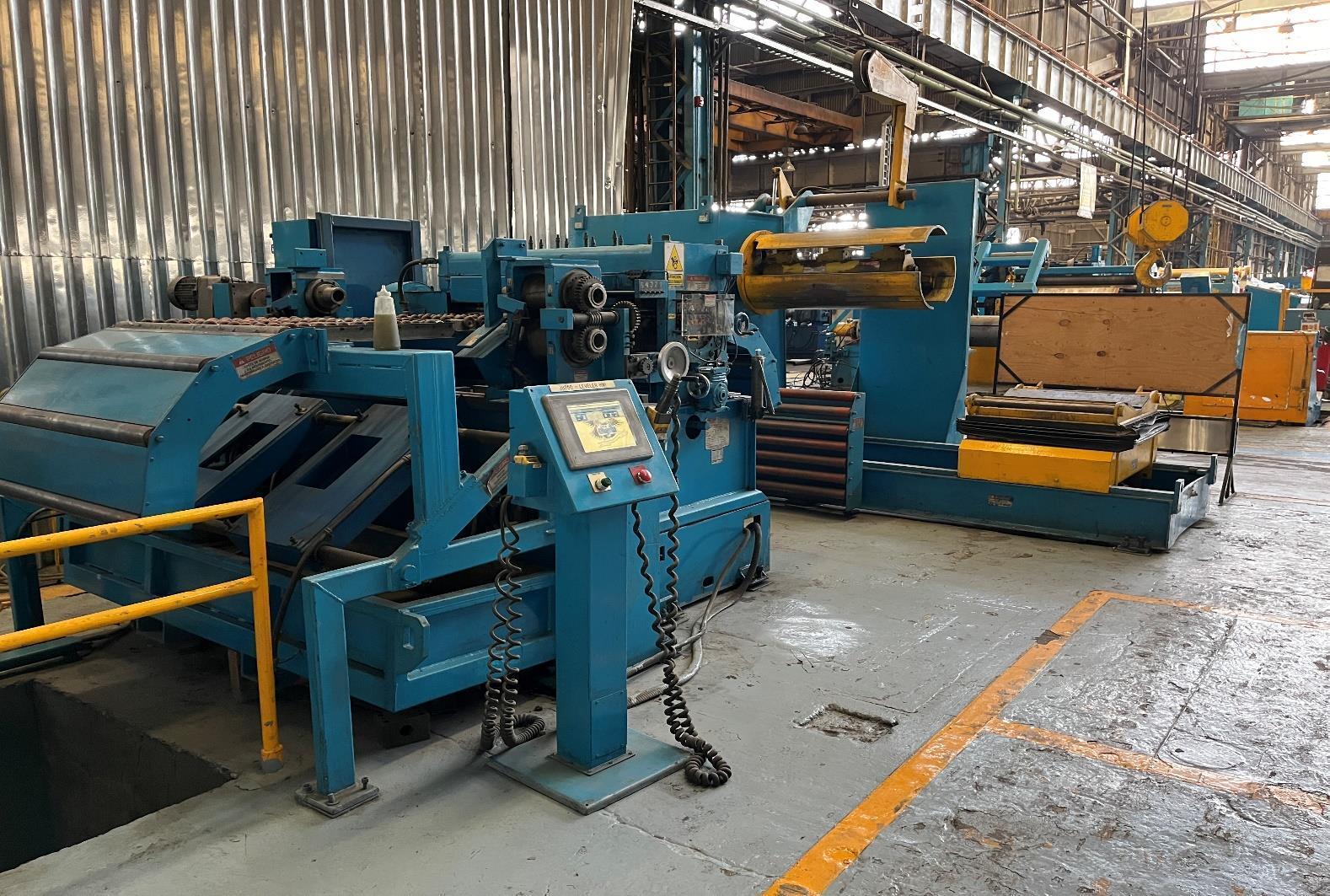

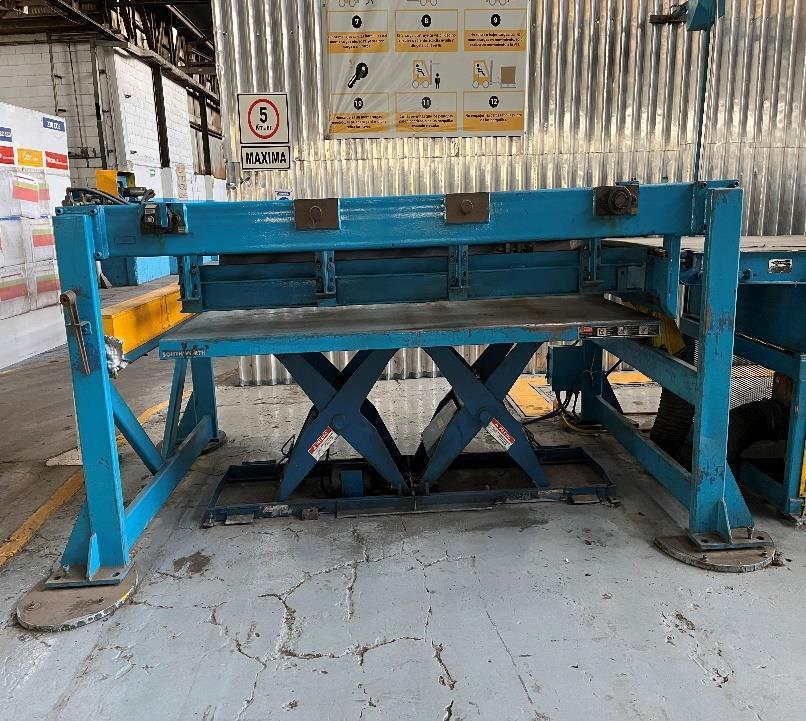

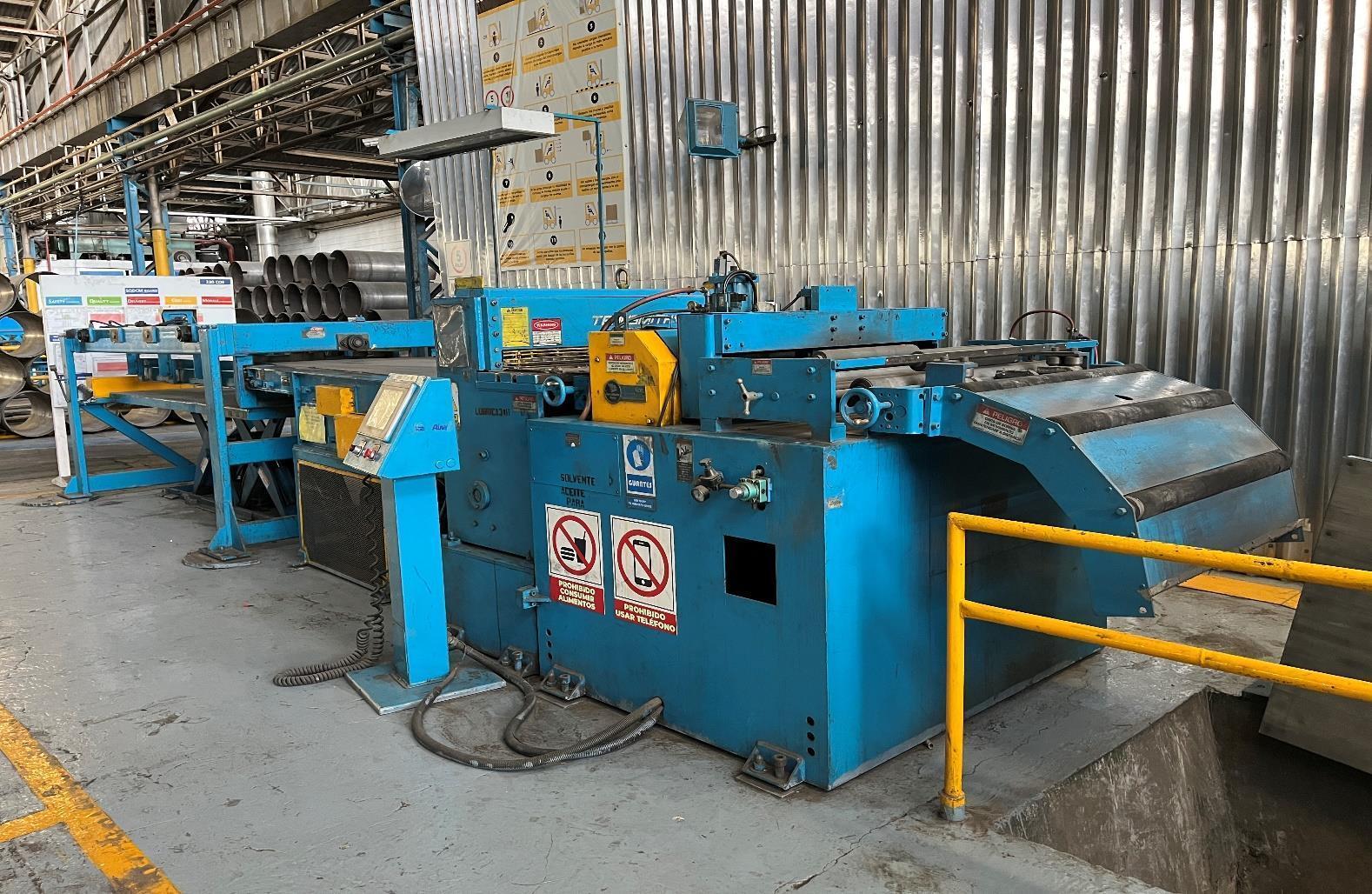

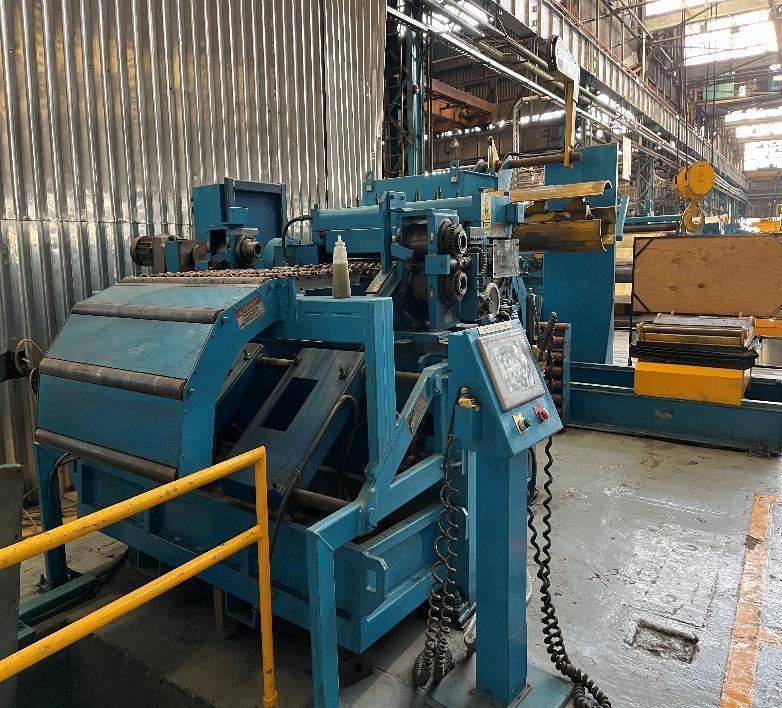

1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)
  • 1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)

1067mm (42") x 0.81mm COE Aluminum Cut to Length Line (2005)

Brand
COE

Model
Not Specified

Type
Cut To Length Lines

Stock #
605247E

Condition
Used

Year

Request a Quote
Have one to sell?
Width 42 inches
Thickness 0.03 inches

Equipped With

• Manufacturer: COE PRESS EQUIPMENT USA
• Year: 2005
• Model: 40958

Technical Specifications:
• Width: 264mm – 1067mm
• Thickness: 0.2mm – 0.81mm
• Sheet Dimensions: Min 264mm x 254mm – Max 1067mm x 2438mm
• Line Speed: 120 mpm max
• Direction: Right to Left

Herr Voss Precision Leveler
• 17 Work Rolls
• Work Roll Diameter: 1.156”
• 7 Backup Rolls Flights
• 5 Adjustable Backup Rolls
• Yield Max: 32,000 psi.
• 11.18 kW Motor Drive

Uncoiler Data:
• Coil ID: 508mm - 600mm
• Coil OD: 1829mm
• Weight Capacity: 6,800 Kgs.
• 3.7 kW Motor Drive

• Complete Controls, Electric & Hydraulics

Installed and Running
