| Width | 5 inches |
| Work Roll Diameter | 10 inches |
SPECIFICATIONS

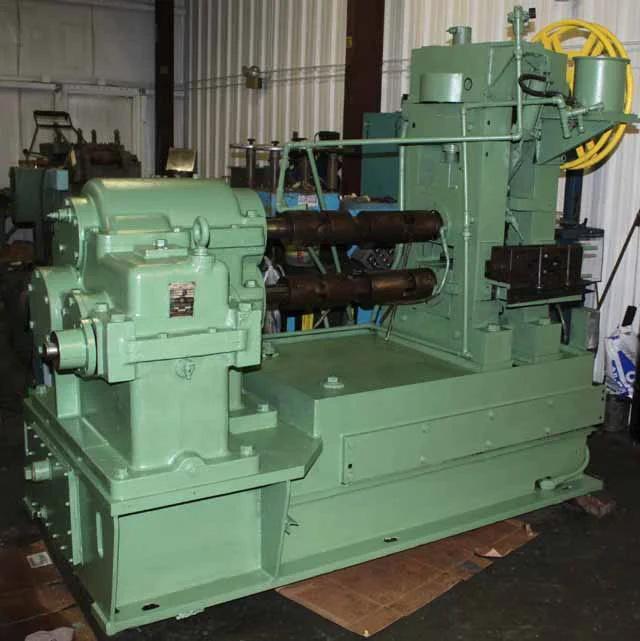

MANUFACTURER: FENN MANUFACTURING COMPANY (USA)
ROLLS
DIAMETER: 10" (254mm)
ROLL FACE: 2-1/2" (63.5mm) WIDE CARBIDE SHELL INSERTS
MOUNTED ON 5" (127MM) WIDE STEEL ROLLS
ROLLS ARE WATER-COOLED
HOUSING COLUMN SIZE: 6"(152mm) X 6"(152mm)
WINDOW WIDTH: 10-5/8"(270mm)
BEARINGS: FENN TYPE ROLLER BEARINGS
BEARING LUBE: FORCED OIL
DRIVE MOTOR: 75 HP DC General Electric KINAMATIC Direct
current Motor, 850/1700 RPM, 500 Volts
REDUCER: PINION STAND/REDUCER
HORSBURGH & SCOTT SIZE 10 W-27-SPL, RATIO 11.56
HP RATING 75, SERVICE FACTOR 1.0, INPUT RPM
800/1700
SCREWDOWNS: DUAL HANDWHEEL
DRIVE JOINTS: SQUARE TYPE UNIVERSAL JOINTS
INCLUDES ONE SPARE SET OF SHELL CARBIDE ROLLS
PURCHASER TO SUPPLY NEW ELECTRIC CONTROLS
DIMENSIONS:
-WIDTH: 90" (2286mm)
-DEPTH: 102" (2590mm)
-HEIGHT: 90" (2286mm)
