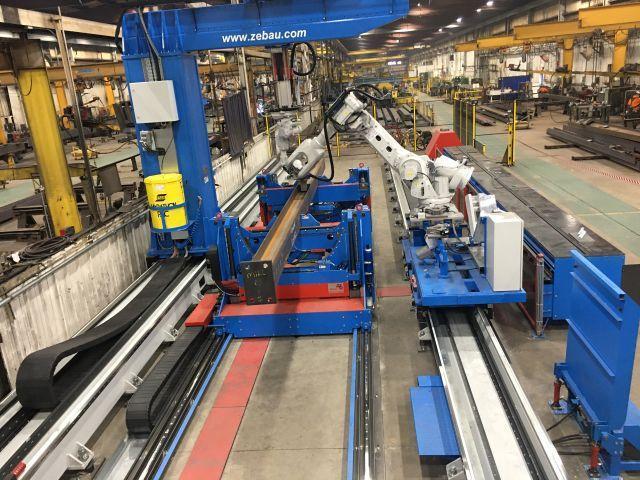

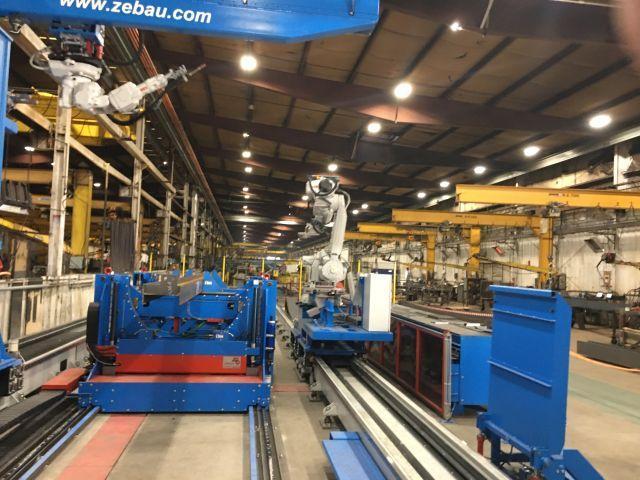

Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)
Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)
Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)
  • Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)
  • Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)
  • Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)

Steel Beams and Profiles Zeman Structural Robotic Welding System (2019)

Brand
Not Specified

Model
Not Specified

Type
Automated Welding Systems

Stock #
605609

Condition
Used

Year
2019

Request a Quote
Have one to sell?
CNC Control yes
Type of CNC Control siemens
Dimensions 150mm x 80mm x 3000mm
Weight 6000 kilograms

Equipped With

Manufacturer: Zeman (Austria). * Part of Lincoln Electric Group
Year: 2019

System Capacities:

Beam Sizes:
 Height: 150 MM MIN    1100 MM MAX
 Width:  80 MM MIN     500 MM MAX
 Length: 3000 MM MIN  12000 MM MAX

 Beam and Profiles Types:

 H Beams150 MM MIN, 1100 MM MAX
 Welded H Beams
 Corrugated SIN Beams : Yes (Optional)
 Rectangular /Square Tubes: 80 MM X 80 MM MIN, 500 MM X 500 MM MAX
 U-Profiles
 Tapered H Beams (OPTIONAL): 250 MM MIN, 1000 MM MAX

 Weight Limits (Kg):
 Add Parts 0 KG MIN, 200 KG MAX
 Beam Weight 0 KG MIN, 6000 KG MAX

Dimensions of Added Parts in mm:
Plates: 50 MM X 100 MM X 3 MM MIN
800 MM X 1400 MM X 60 MM MAX

Corner Frame Application: Yes (Optional)
Processing Speeds : 250 MM/SEC, 10" PER SEC.
Welding: Close Up Spot Welds
Curved Welding Radius
Welder: FRONIUS TPS 500i
Features: (2) ABB Robots 500 LB. PART CAP.
SBA Parts Laser Scanner
Controls by  SIEMENS
Software by  SIEMENS SIMATIC S7 PLC
