Tonnage: 2500 tons
Bed Size: 5000 mm x 2400 mm
2500T-1000T-1000T-1000T-1000T-1000T

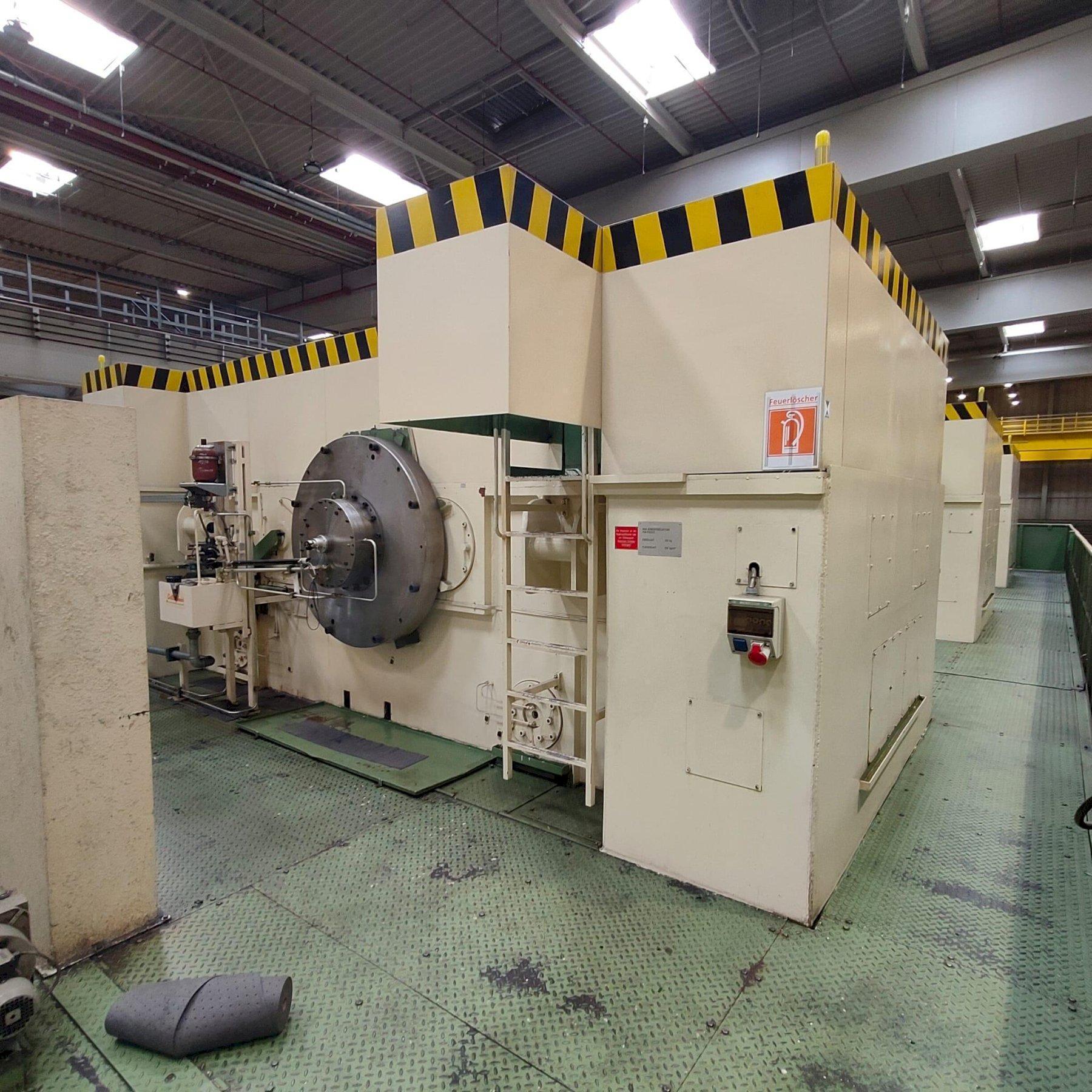

2500 Ton Schuler Lead Press: (Hydraulic)
Model: DHC-2500-1800-5.0x2.4
Bed Size: 5000 mm x 2400 mm
Year: 2003
Total weight: 626000 kg
Stroke: 1960 mm
Die Space: 2950 mm
Slide Force: 1800 kN
Slide Stroke: 1960 mm
Slide Area: 3500 x 1650 mm
Blankholder Force: 7000 kN
Blankholder Stroke: 1850 mm
Blankholder Area: 5000 x 2400
Fast approach speed: 800 mm/s
Working speed: 400 mm/s
Working speed at full force: 36 mm/s
Die Height: 1100 mm
Die Weight Max: 60000 kg
Upper Die Max Weight: 40000 kg

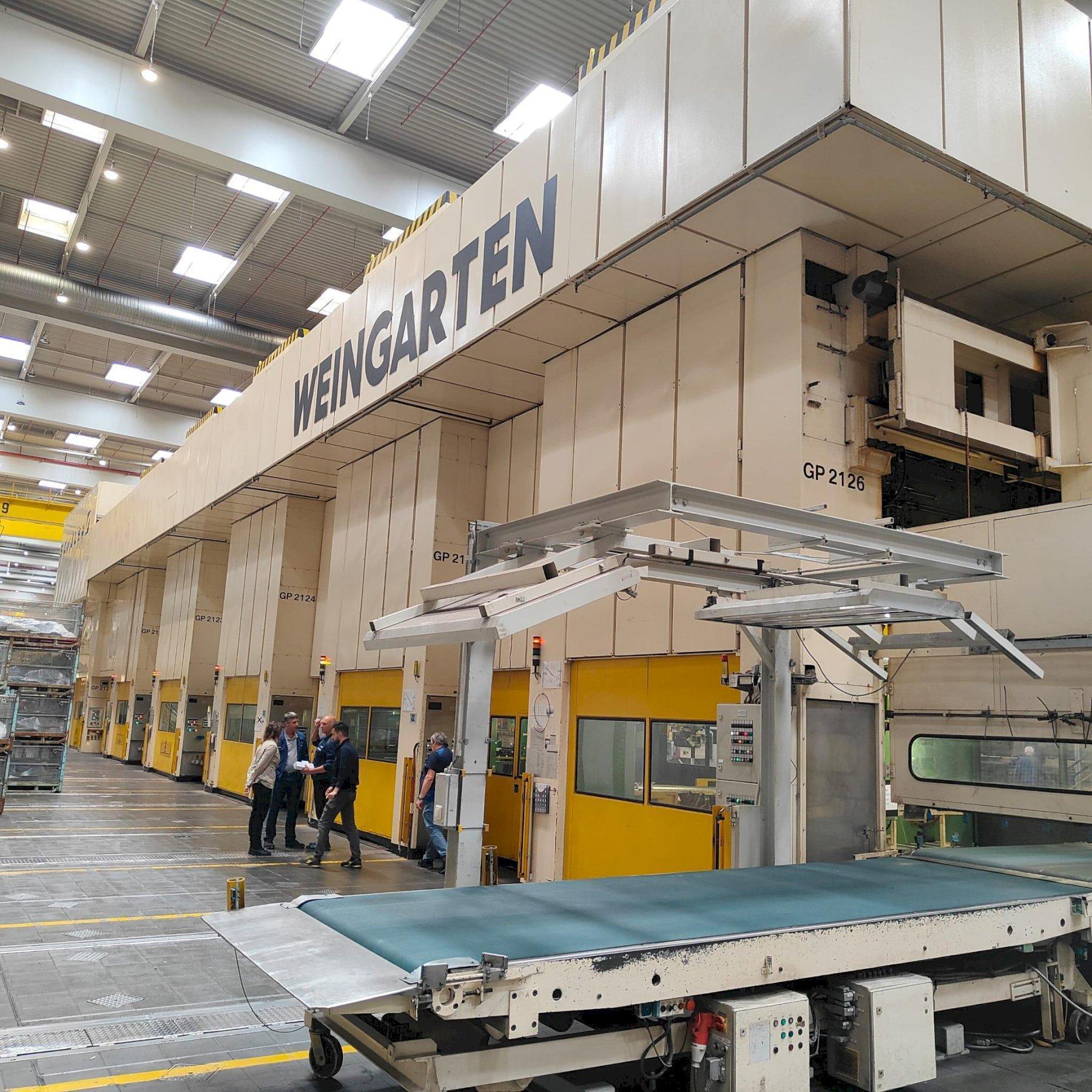

1000 Ton Mueller Weingarten Presses (5 Available):
Press force Slide @ 20mm before BDC 10000 KN
Working capacity Slide at 8 strokes/min 350 kj
Slide stroke 900mm
MAX. Draw Depth Slide 200mm
Slide Adjustment 250mm
Air Cushion in Slide/Cushion force @ 8.5 bar 1000 KN
Cushion stroke 200mm
Die Space Bolster – Slide in BDC and Adjustment on top 1400mm
Bolster Height 544mm
Strokes per minute, adjustable 8 – 20
Strokes per minute in Setting mode 3
Dimensions Bolster Plate 4600 X 2200mm
Dimensions Slide Plate 4600 X 2200mm
Dimensions Slide Adapter Plate 4000 X 2200mm
Air Cushion in Press bed/Cushion Force @ 9 bar MAX. 2000 KN
Adjustable Cushion Stroke 0 – 200mm
Main Drive Motor Power 90 – 225 kW
RPM 720 – 1800 U/min
Equipped with side to side moving bolsters, no lower cushion
