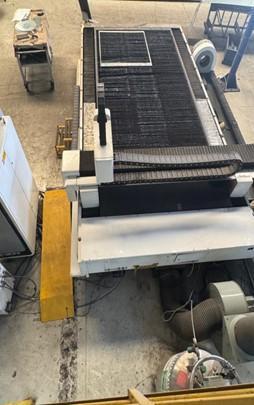

Laser Power: 1500 W
Power Requirement: 220V / 60 Hz
Maximum processing range 4000x2000 mm
X axis travel 2000mm
Y axis travel 4000mm
Z axis travel 290mm
X/Y axis positioning accuracy +- 0.03 mm
X/Y axis repeated positioning accuracy +- 0.02 mm
X/Y axis maximum acceleration 1.0 G
Increased Machining Allowance X/Y=30 mm
Y axis motor power 1.3 Kw
Guide width x axis 25mm
Guide width y axis 35 mm
Working platform load 1200 kg
Enclosed laser protection no
Lubrication type Automatic oiling
Power available 1000-6000 W
Dimension in mm 6000x3848x2650
Total weight 6080Kg

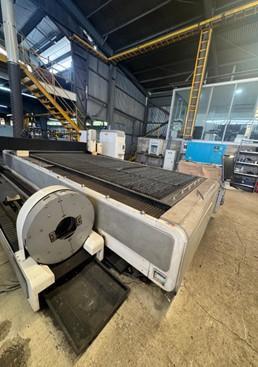

Tube parameters length and diameter 3 m
The max loading of chuck 300 kg
