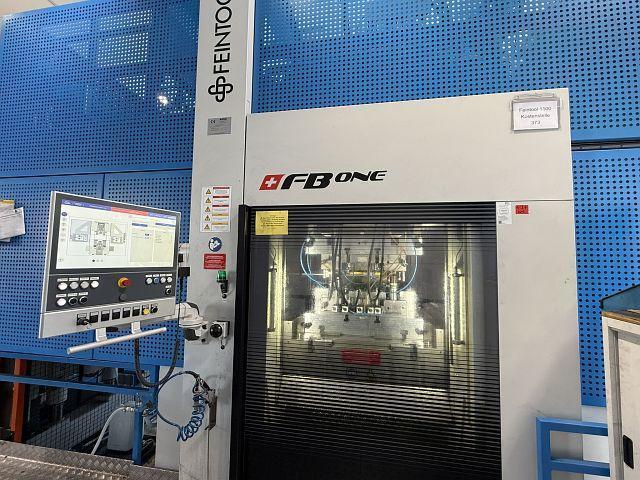

Feintool 1100 Ton Fine Blanking Press Year 2023

Brand:               FEINTOOL
Model:               FB ONE 11000
New approx.:         2023

Controls:            PC controller BECKHOFF

PRESS DESIGN
  drive system                                 servohydraulic
  frame design                               H-frame, tie rod
  quick die change system                                 yes
  feedstock transport direction                 left to right

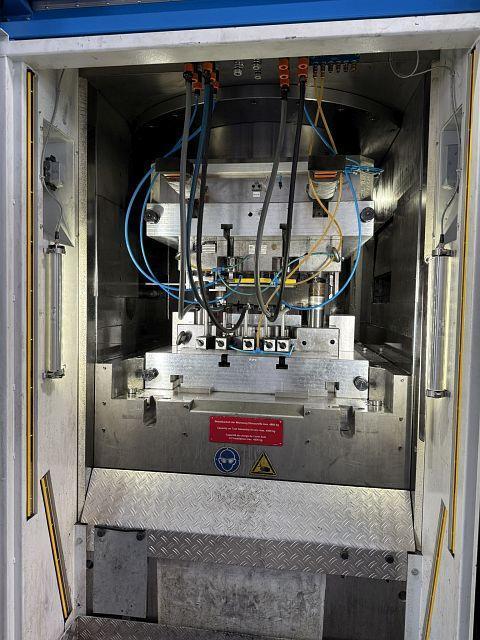

SLIDE
  total force (nominal)                   ( 11000 kN )   1100 to
  stroke                                  ( 5.122 "  )    130 mm
  stroke rate (max.)                                       60 /min

COUNTER RAM
  nominal force                           (  3300 kN )    330 to
  stroke                                  ( 1.576 "  )     40 mm

V-RING
  nominal force                           (  5000 kN )    500 to
  stroke                                  ( 1.576 "  )     40 mm

TOOL DIMENSIONS
  lower table (left-right)                (37.824 "  )    960 mm
  lower table (front-back)                (37.824 "  )    960 mm
  upper table (left-right)                (37.824 "  )    960 mm
  upper table (front-back)                (37.824 "  )    960 mm
  shut height max.                        (18.518 "  )    470 mm

OVERALL SPECIFICATIONS (COIL LINES)
  sheet width max.                        (  19.7 "  )    500 mm
  sheet thickness max.                    (0.6304 "  )     16 mm
  coil weight max.                                          8 to
  feedstock transport direction                 left to right

COIL CAR
  coil weight max.                                          8 ton
  stroke                                  ( 27.58 "  )    700 mm

DECOILER
  coil weight max.                                          8 ton
  max. diameter of coil                   ( 70.92 "  )   1800 mm
  mandrel expansion range from            (18.518 "  )    470 mm
  mandrel expansion range up to           (20.882 "  )    530 mm

LEVELLER UNIT
  sheet width max.                        (  19.7 "  )    500 mm
  sheet width (min)                       ( 3.152 "  )     80 mm
  sheet thickness max.                    (0.6304 "  )     16 mm
  sheet thickness min.                    (0.0591 "  )    1.5 mm
  material cross section max. (450 N/mm2) ( 5.265 in²)   3510 mm²
  number of leveller rolls                                 17
  integrated feed function                                yes
  intermediate clamp release                              yes
  cleaning device for leveller rollers                    yes

CROP SHEAR
  cutting force                                           800 kN

ELECTRICAL SPECIFICATIONS
  mains power supply                                      350 kVA
  mains voltage                                           400 V
  mains frequency                                          50 Hz

Absolutely mint condition: just 3'300 running hours, 700'000 strokes


Special equipment fineblanking press:
+ block hydraulics for 4th and 5th force. High pressure 30-270 bar.
+ mechanical reamers (without tool-bound sliders)
+ additional operating mode "cutting without counter-holder and V-ring"
+ additional operating mode "manual insert mode"
+ 2 blast air circuits with 6 connections each
+ Additional tool monitoring
+ RAZIOL roller belt lubrication system with 2 reservoirs
+ Interface for monitoring the cooling system
- the scrap conveyor (visible on photos) is not part of the scope
ARKU single reel with coil car:
+ 2 pressure arms for high-strength coil material
+ Coil guidance via conical rollers
+ Automatic coil centre positioning

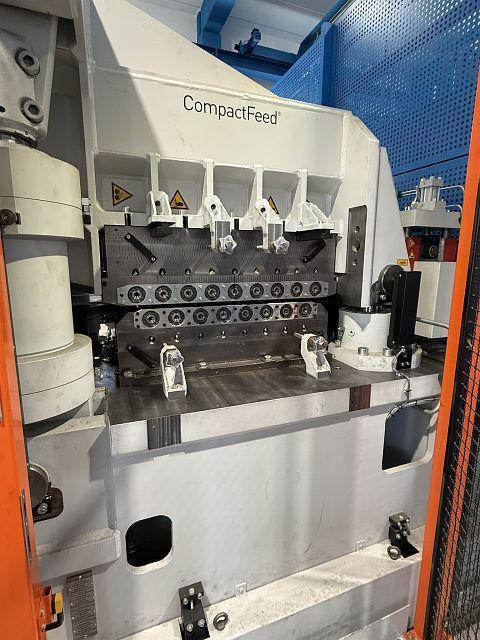

ARKU feed straightening machine:
max. straightening cross-section at 600 N/mm2: 3510 mm2
max. material thickness 16 mm
+ Synchronised drive of the straightening rollers
+ Hardened and ground straightening rollers
+ Servo-hydraulic leveller gap control
+ Straightening roller quick-change system
+ intermediate roller release
+ Measuring wheel for feed control
