| Tonnage | 20 tons |
| # Turret Stations | 27 |
| CNC Control | yes |

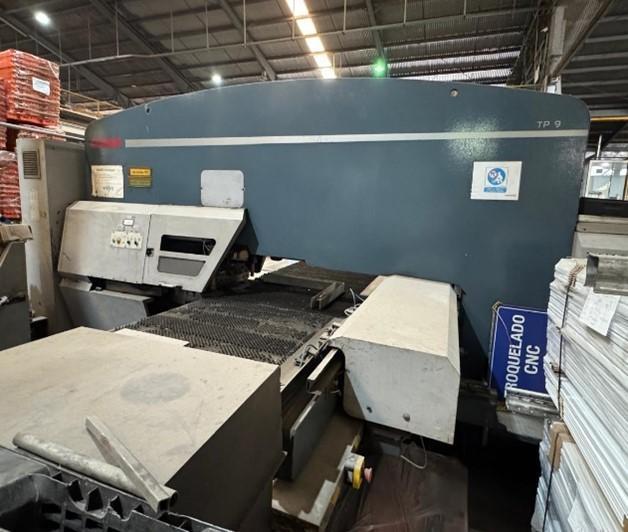

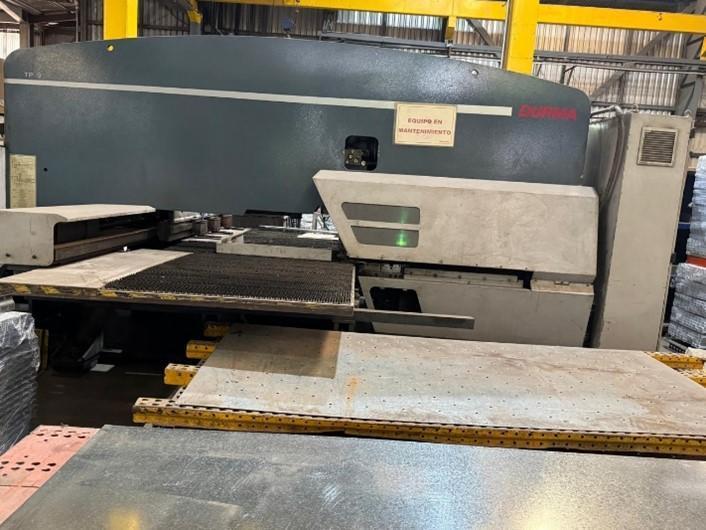

Model TP9
Year 2006
Maximum pressure 20 Tons
Dimensions without repositioning 2000 x 1250 mm
Max size with repsitioning 10000x1250 mm
Max thickness 6 mm
Max pinching diameter 88.9 mm
Number of turret tooling stations 27
Auto index number 3
Working speed 900 coups/mm
X and Y axis speed 90(X) 70(Y) mm
CNC system Siemns sinumerik 840DI
Power motor 7.5 kw
Weight 11000 kg
Floor space 11000 kg
