EFFECTIVE WORKING DIMENSIONS: 10’6” Wide x 35’ Long x 6’ High
FUEL: Natural Gas – 12,000,000 BTU/Hr. Max.
TEMPERATURE RANGE: 1450 oF.

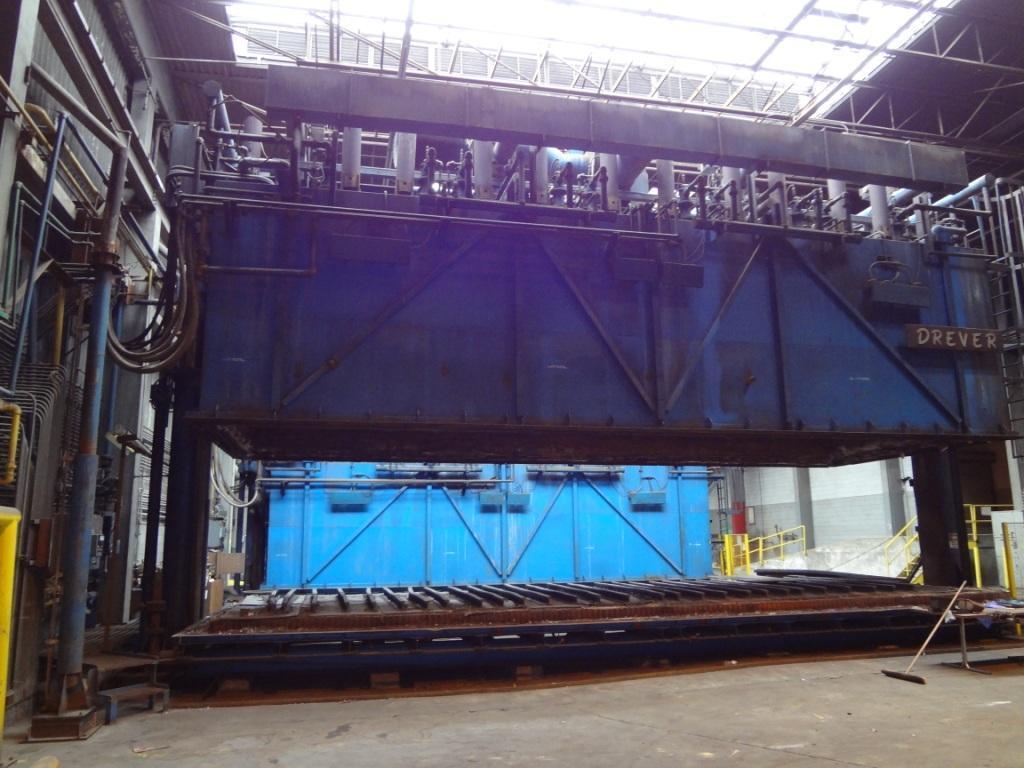

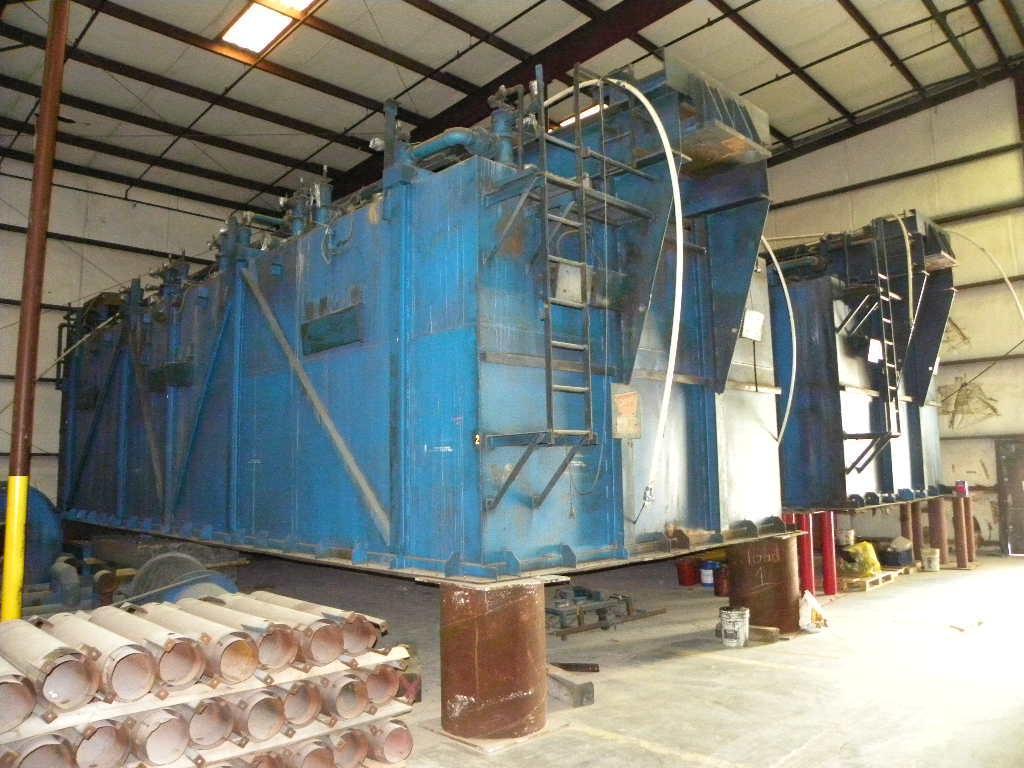

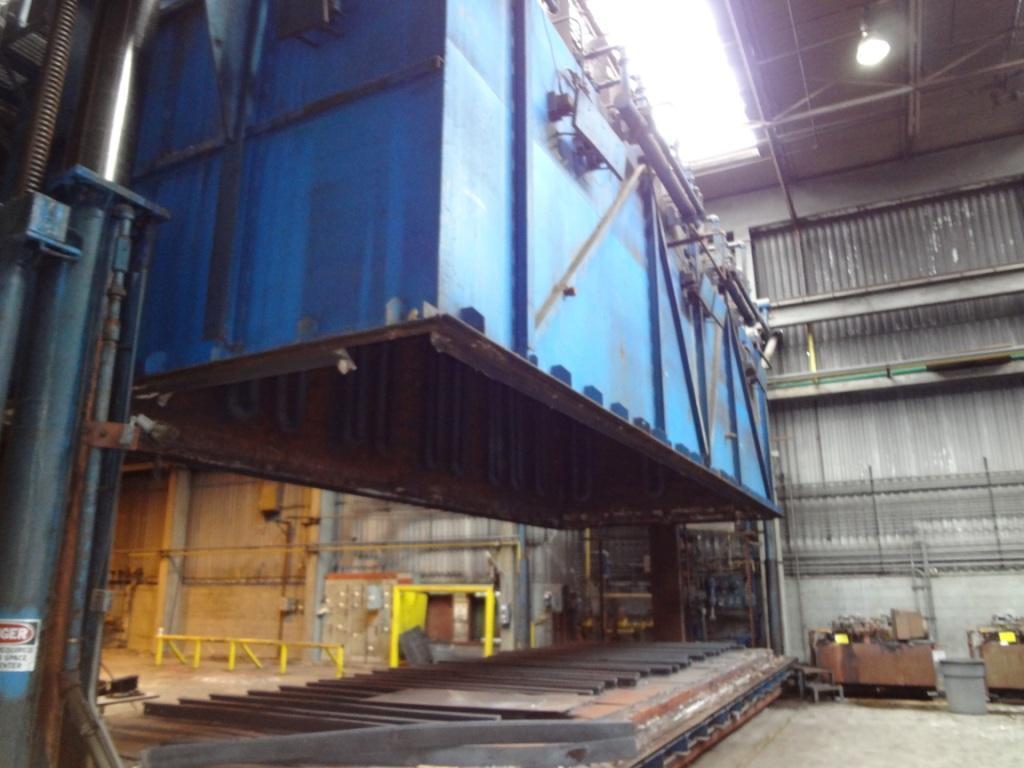

DESCRIPTION: Ceramic Fiber Lined, Vertical Rising Atmosphere “Lift-Off” Furnace complete with (26)
U-Shaped Radiant Tubes, North American Burner System, (4) Top-Mounted Alloy Circulating Fans, (4) Zones
of Control, Stationary Hearth, “Knife-Edge” Atmosphere Seal, and Hydraulic Lifting Cylinders on each end of
furnace. Furnace is capable of 100,000 lb. loads.
INSTRUMENTATION: Free-Standing Control Panel with Honeywell PLC Digital Temperature Controller,
and Honeywell Flame Safety System.
OVERALL DIMENSIONS: 15’11” Wide x 41’ Long x 13’6” High
APPROX. WEIGHT: 70,000 lbs.
