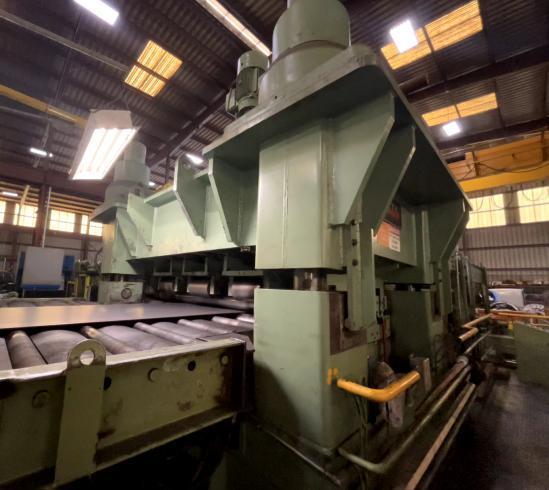

96" x .750" Delta 9-Roll Precision Plate Straightener (2023)

Brand
DELTA

Model
Precision Plate Straightener – 9 Roll, 7 BUR Flights

Type
Flatteners

Stock #
605515

Condition
Used

Year
2023

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Width	96 inches
Thickness	.75 inches
Work Roll Diameter	7 inches
Number of Work Rolls	9

Equipped With

Material Capacity: - Carbon steel - Thickness range: 0.250” to 0.750” - Width range: 36” to 96” - Line speed: up to 150 FPM Straightener Configuration: - 9 work rolls (7.00" diameter alloy steel) - 4-over-5 pyramid arrangement - 7 flights of back-up rolls (5 adjustable) - Mechanical vertical adjustment (entry and exit) - Electronic position indicators Drive & Control System: - 600 HP AC motor - Variable Frequency Drive (VFD) control - Siemens control system - Distribution gearbox with nine output shafts
