Material: Cold Rolled , Galvanized Steel
Max Thickness: .135"
Max Coil Weight: 80,000lbs

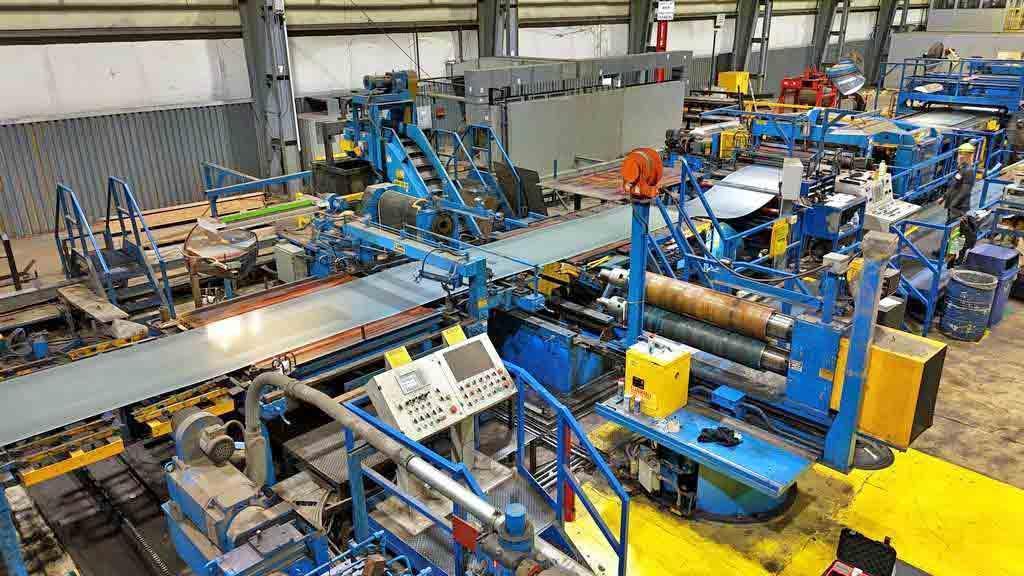

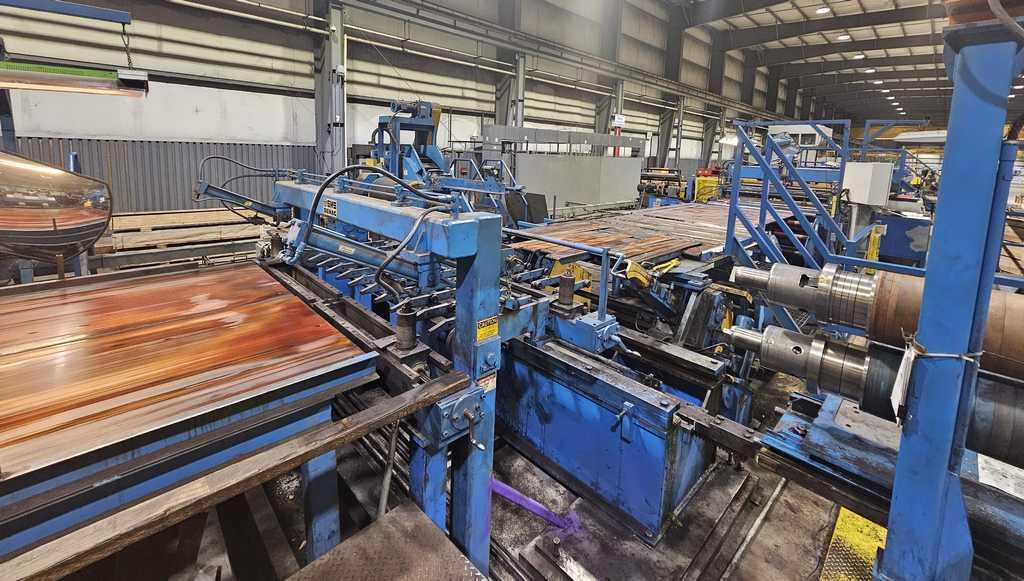

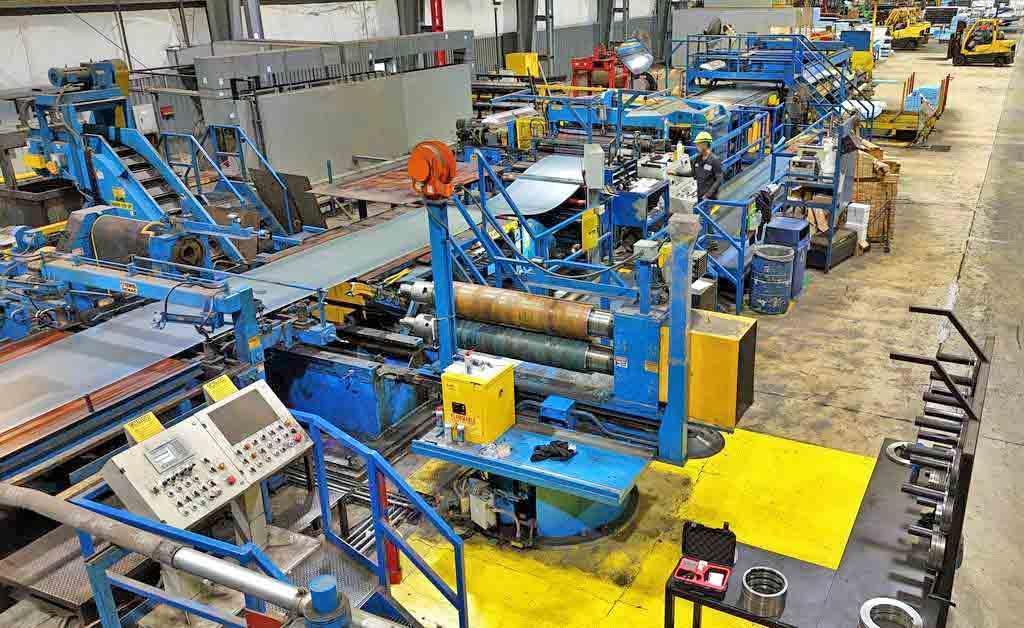

Complete Line with the following Components:
4 Arm Turnstile
Entry Coil Car
Single Mandrel Uncoiler:
20" - 24" ID
Automatic Center Guide Control Unit , Peeler Table, Pinch Rolls, Mechanical Centering Guides
Hydraulic Crop Shear
Belt Conveyor for scrap:
Cassette Leveler: 5 HI with 17 Work Rolls and 300 HP Drive
Carryover Table
Cassette Leveler 5 HI with 19 Work Rolls and 20 HP Drive
Inspection Table
Speed Reference Roll:
Mechanical Centering Guides:
"CNC" Slitter with 9" Diameter Arbors and Single Eccentric Arbor Adjustment
Scrap Choppers
Scrap Discharge Conveyor
Carryover Table
Loop Pit Equipment
Squaring Guides
Precision Feed Roll Unit
Reciprocating Flying Shear with 250 HP Drive
Reject Conveyor
Runout Conveyor
Reject Cart

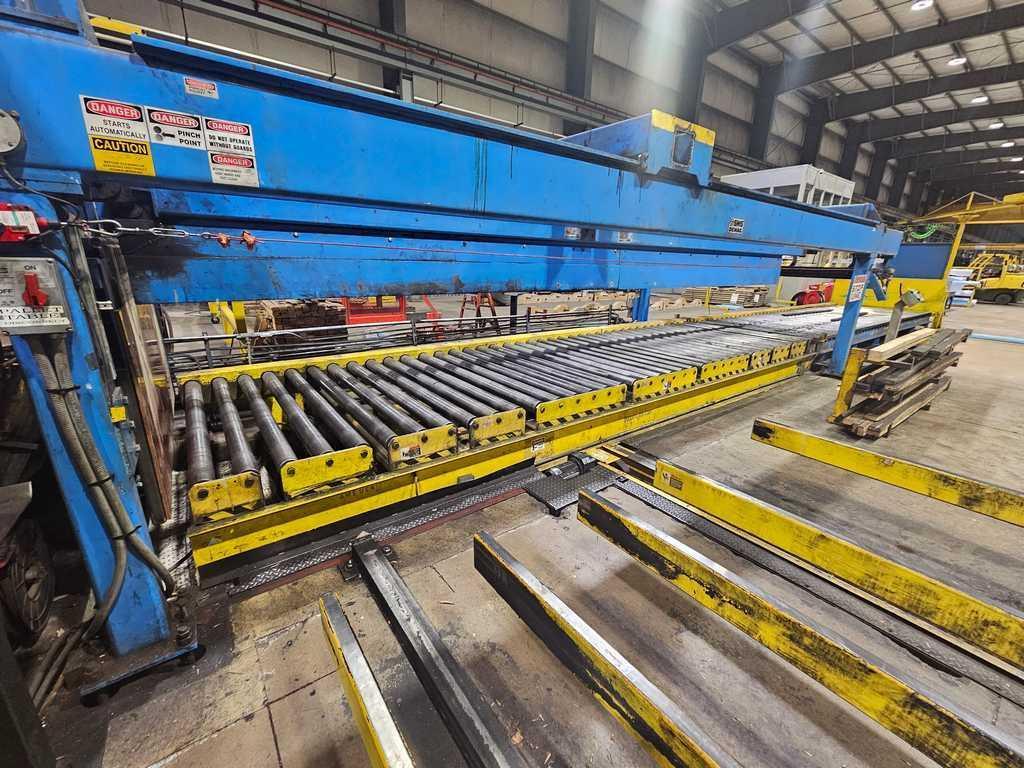

Automatic Air Stacker with End Discharge to handle 16" Min. - 240" Max. Length
Pallet Feed System
Scissor Lift Stacking Table for 24" Max. Lift and 20,000 lb. Weight
Storage Conveyor for 20,000 lb. Weight Capacity and 240" Long Sheets
