| Coil Weight | 80000 pounds |
| Width | 75 inches |
| Coil OD | 84 inches |
SPECIFICATIONS:
MFG: Red Bud Industries
Model: SH30-72-80
S/N: SHK-11-MO841
Year: 2012
Capacity: 60,000lbs without out board, 80,000Lbs.(36 metric ton) with
outboard support
Max. Width: 75"(12.7mm)
ID: 23"-31"(584-787mm)
Max. OD: 84"(2133mm)
Center of Drum to Floor:
Hold Down-hydraulically driven & actuated
Slide Base

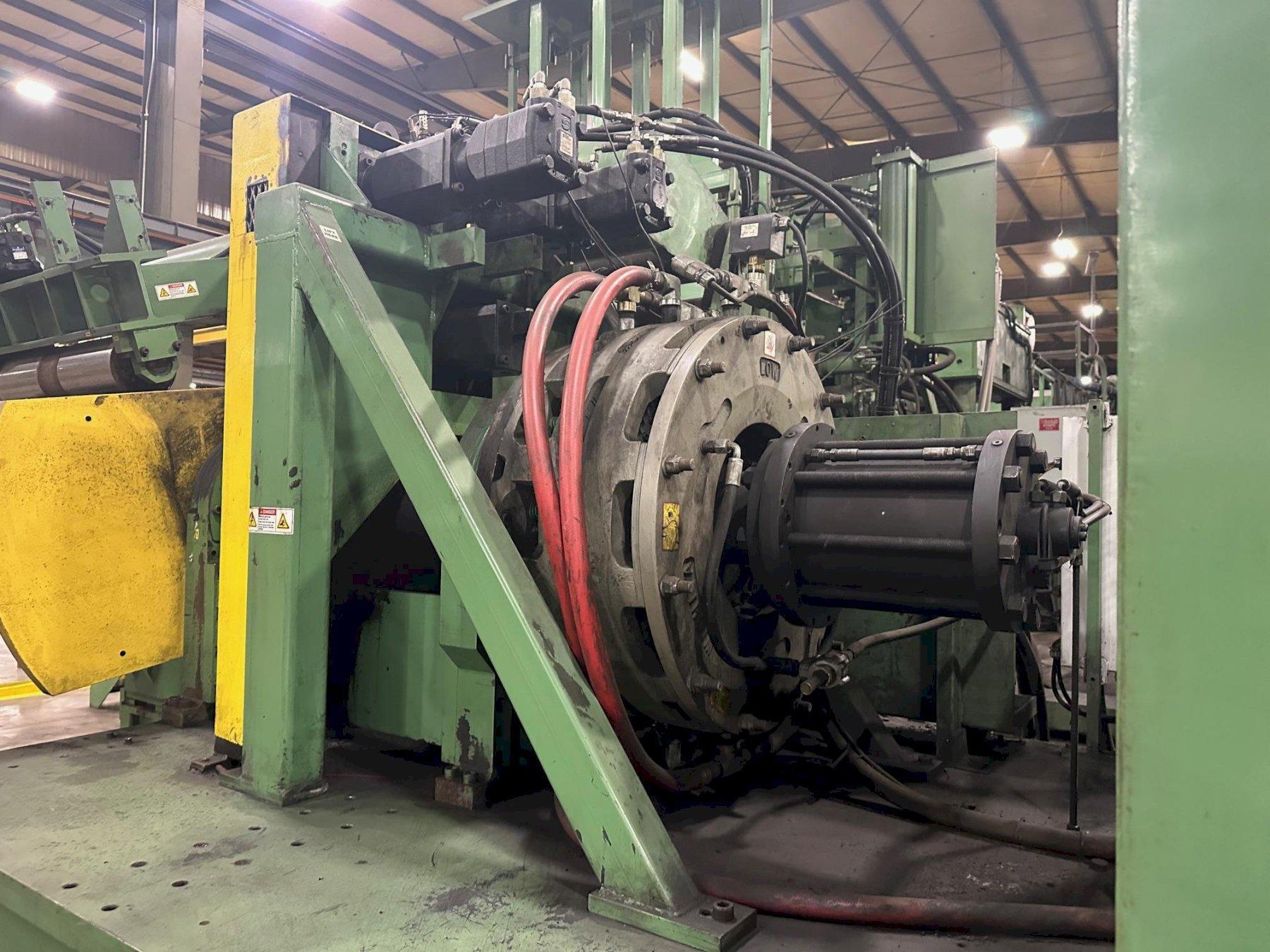

Wichita Brake-water cooled with tank & heat exchanger
Hydraulically driven feed up
Outboard Support
Uncoiler has very few running hours on it.
53,000lbs, Ship dimensions:
