YEAR – 2004
LINE DIRECTION – LEFT TO RIGHT
MATERIALS – COLD ROLLED AND HOT ROLLED STEEL (PICKLED OR BLACK)
THICKNESS – .165” (4.19 mm) MIN., .625” (15.88 mm) MAX.
COIL WIDTH – 74” (1,880 mm) MAX. (ENTRY) 72” (1,829 mm) MAX. (EXIT)
COIL WEIGHT – 70,000# (31,752 Kg) MAX. (ENTRY & EXIT)
COIL OUTSIDE DIAMETER – 72” (1,829 mm) MAX. (ENTRY & EXIT)
COIL INSIDE DIAMETER (ENTRY) – 20” (508 mm) TO 32” (813 mm)
COIL INSIDE DIAMETER (EXIT) – 20” (508 mm) OR 24” (610 mm)
SLITTER ARBOR DIAMETER – 13.000” (330.2 mm)

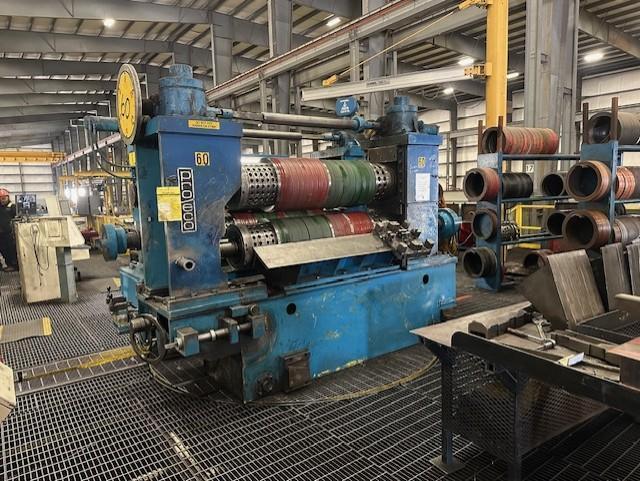

NUMBER OF SLITTER HEADS – ONE (1) 60” (1,524 mm) AND ONE (1) 72” (1,829 mm)
SLITTER HEAD EXCHANGE STYLE – POWERED INJECTOR WITH TURNTABLE
LINE SPEED – 450 FPM (137 MPM) IN HIGH GEAR, 150 FPM (46 MPM) IN LOW GEAR

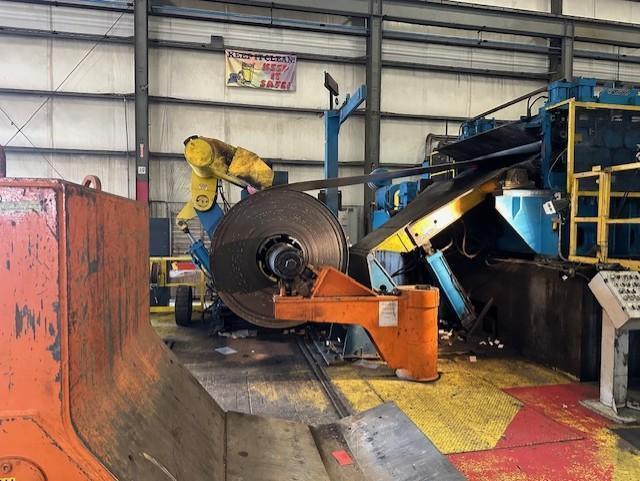

UNCOILER DRIVE – HYDRAULIC FEED-UP w/ WATER-COOLED BRAKE
FLATTENER DRIVE – 300 HP
SLITTER DRIVE – 150 HP
RECOILER DRIVE – 300 HP, 650/1950 RPM, DCSLITTING LINE COMPONENTS:
