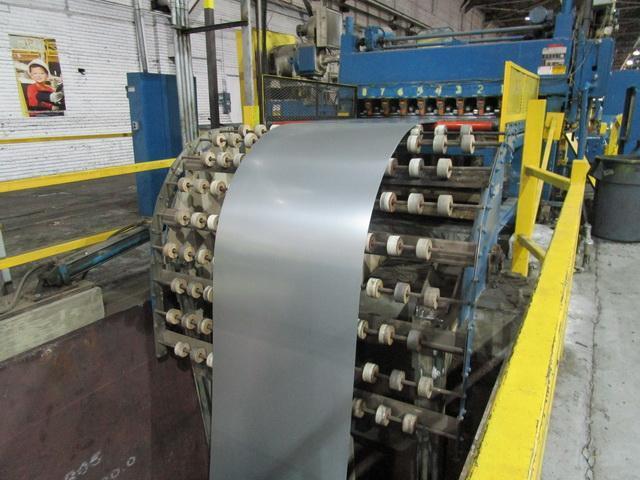

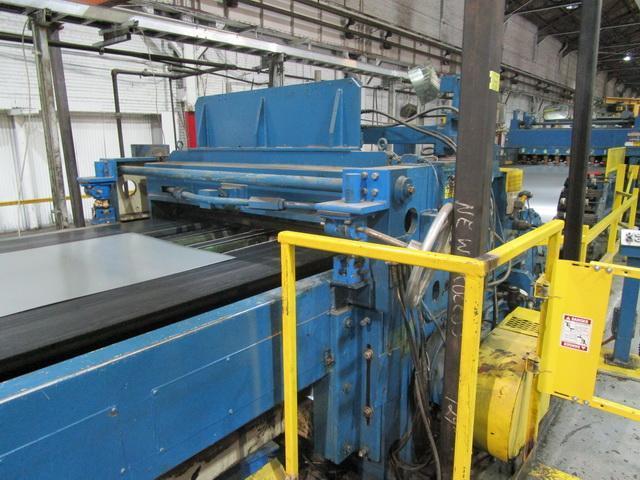

72" x 40,000# Dahlstrom Coil Loop Processing Line

72" x 40,000# Dahlstrom Coil Loop Processing Line

Brand
Not Specified

Model
Not Specified

Type
Cut To Length Lines

Stock #
605621E

Condition
Used

Year

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Coil Weight	40000 pounds
Width	72 inches

Equipped With

Maximum Coil Weight: 40,000 Lbs. Coil Width: 72" - 20" Coil ID Range: 17" - 25" (With Filler Plates) Maximum Coil OD: 72" Speed Range: 300 Fpm Width Tolerance: .005 (Edge Trimmed) Complete Line With: 4 Arm Turnstile: 40,000 Lbs. each Arm Mandrel Uncoiler Model: 40H-72-1725 4 Leaf Hydraulic Expansion Hold Down Roll Hydraulic Sliding Base Peeler Table Edge Trimmer Dual Scrap Choppers 2 Strips x 1.25" Exit Discharge Scrap Conveyor Looping Pit Cascade Roll Edge Guides Looping Pit Cross Over Table Servo Roll Feed 75 HP DC Drive 2 Sets of Edge Guides High Speed Shear Model RF-72-14 Flywheel & Air Clutch Twin Belt Gauging Table Unico Digital Drives Model 306-631 Allen Bradley PLC Digital Read Outs Digital Measuring Digital Counter Complete Line with Hydraulics, Electrics and Controls
