72" x .250" x 80,000# Bradbury Cut-To-Length Line

Brand
BRADBURY

Model
Not Specified

Type
Cut To Length Lines

Stock #
605538

Condition
Used

Year
1985

Request a Quote
Have one to sell?
Coil Weight 80000 pounds
Width 72 inches
Thickness .250 inches
ID 20 inches
Max OD 83.9998 inches

Equipped With

Thickness Capacity:  .057" - .250"
Coil Weight Capacity:  80,000#
Coil ID:  20" - 30"
Coil OD:  84"
Coil Width Range:  24" - 72"
Sheet Length Range:  24" - 300"

Complete Line with the Following

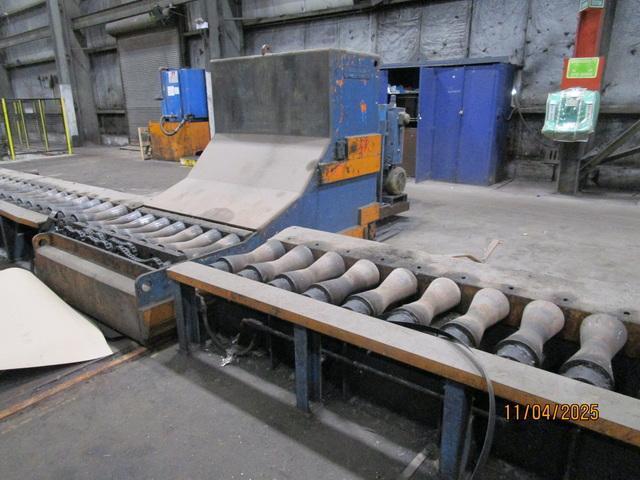

Entry V Roll Powered Coil Feed Conveyor
Bradbury L-Type Coil Car, Floor Standing / Self Contained Hydraulics

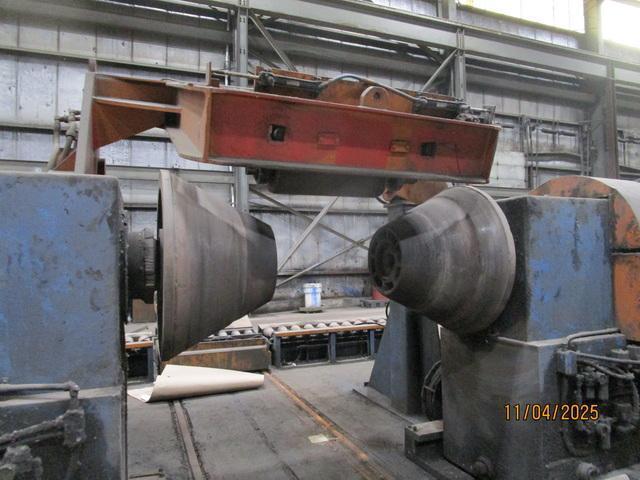

Bradbury Double Cone Uncoiler
Sliding Base
Dual Powered Cones
Dual Water Cooled Brakes with Cooler
North American Edge Control
Free Standing Powered Hold Down Roll
Coil Stop

Peeler Table
Edge Guides
4 Roll Coil Breaker with Hydraulic Breaker Roll

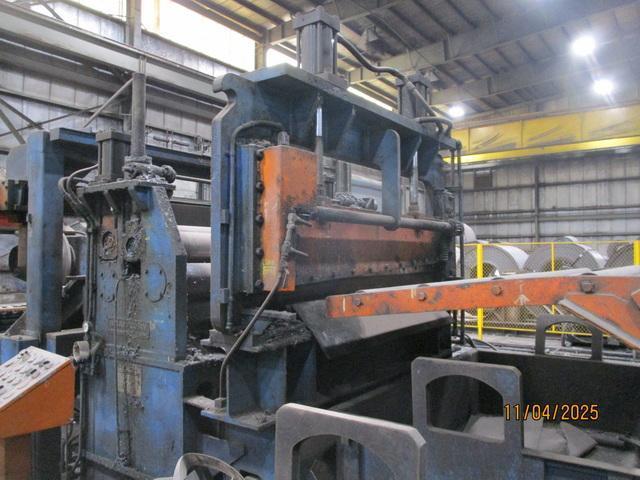

Hydraulic Crop Shear with Scrap Cart
2 Sets of Edge Guides

Dual Powered Edge Trimmers

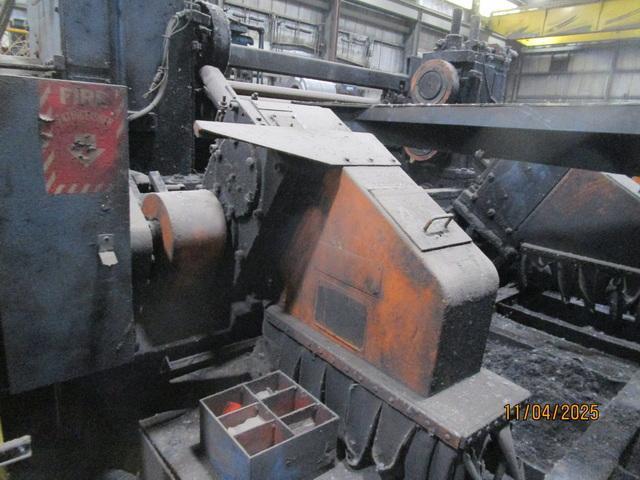

Dual Rotary Scrap Choppers
Exit Goose Neck Scrap Conveyor

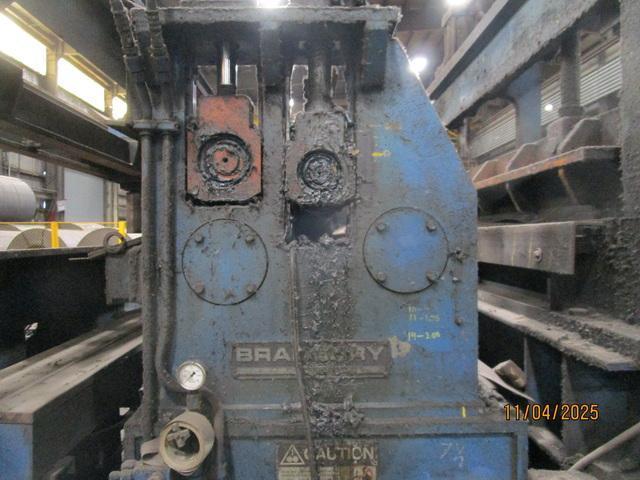

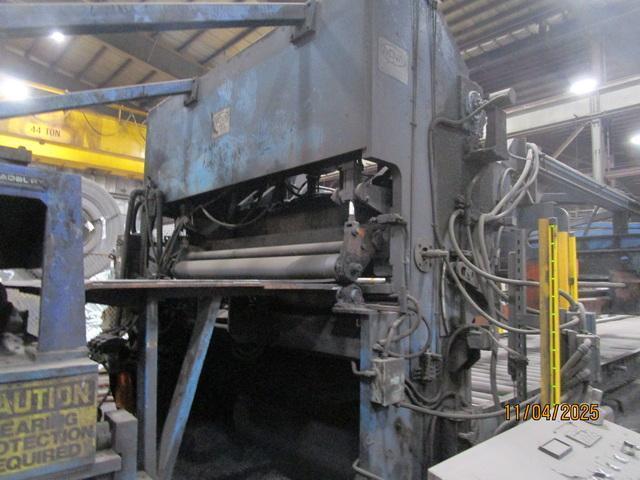

17 Roll Bradbury Backed Leveler
3.5' Diameter Work Rolls
7 Flights of Top & Bottom Back-Ups
Hydraulic Adjustable Back Up Rolls
Entry Pinch Rolls
Spare Rolls for Leveler

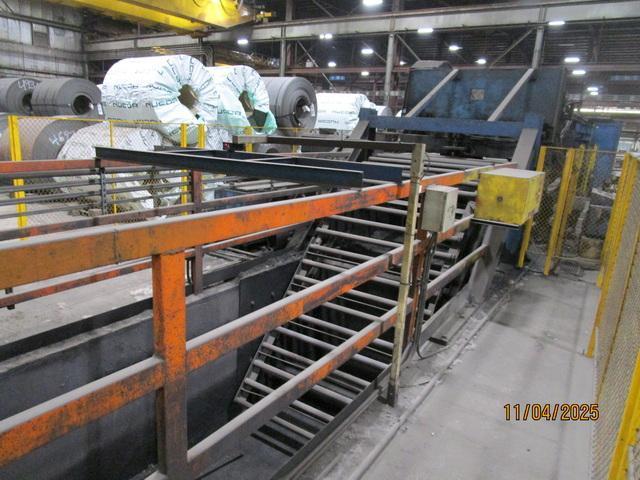

Looping Pit Cascade Rolls
Looping Cross Over Table
Sonatrol Loop Control
Exit Edge Guides

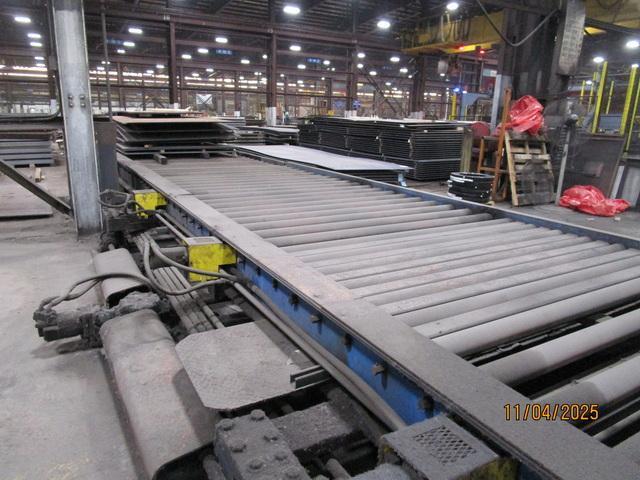

40' Powered Run-Out Conveyor

2 Central Hydraulic Units
Operator Push Stations
CTC Parker Automation
Allen Bradley Digital Readouts

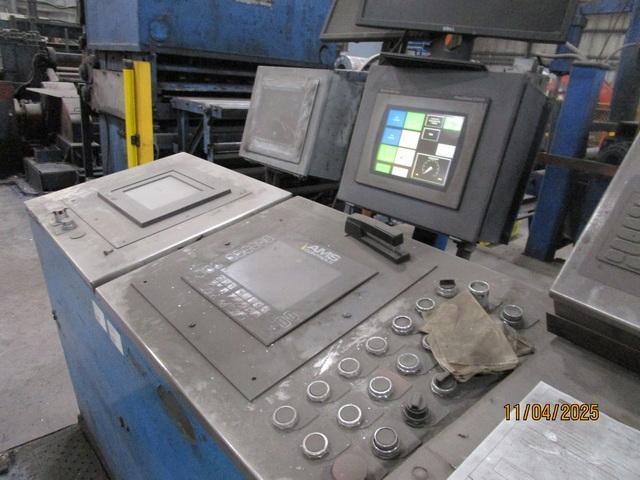

AMS Controller Touch Screen
Allen Bradley Panel View
Parker Digital Drives

Back-Up Servo Roll Feed with AC Motor

Upgraded Nova High Speed Shear
Entry Pinch Rolls
Flywheel
Air Clutch & Brake

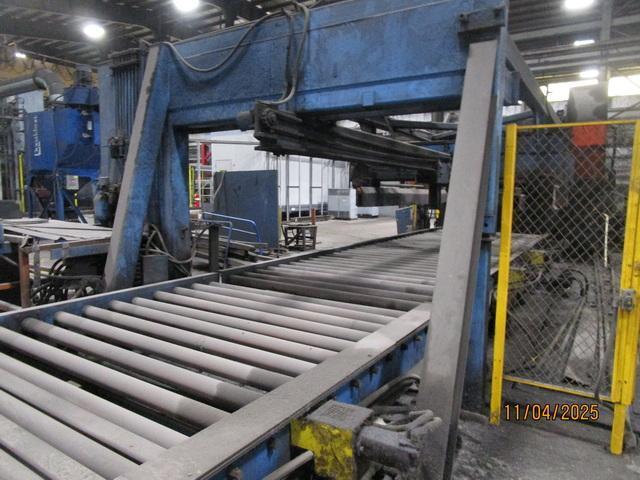

Drop Type Stacker
Motorized Lift Tables
Motorized End Stop
Side Squaring
Stacker Auto Cycle

Complete Line
