72" x .100" x 72,000# Automatic Feed Trapezoid Cut-To-Length Line, UPGRADED on 2020

Model
Not Specified

Stock #
604849

Condition
Used

Year

Coil Weight 74000 pounds
Width 72 inches
Thickness .100 inches
ID 20 inches
Max OD 84 inches

Equipped With

GENERAL LINE SPECIFICATIONS:

MANUFACTURER - AUTOMATIC FEED COMPANY
YEAR - 1989 (NEW CONTROLS UPGRADE 2020)
TYPE - TRAPEZOID CUT TO LENGTH LINE
MATERIAL - 0.020" - 0.100"
YIELD STRENGTH - 25,000 PSI - 40,000 PSI

DEPENDING ON WIDTH & THICKNESS A HIGHER YIELD STRENGTH IS FEASIBLE. CONTACT
OUR OFFICE FOR FURTHER INFORMATION

WIDTH RANGE - 24" - 76"
TRIM WIDTH - 74"
ID RANGE - 19" - 25"
OD RANGE - 36" - 84"
LINE SPEED - 300 FPM

SHEAR SPM - 18 - 70
SHEAR ANGLE CUTS - 30 DEGREES MAXIMUM +/-
SHEAR STROKE - 6"
SHEAR SHUT HEIGHT - 30"

STACKER WIDTH RANGE - 24" - 74"
STACKER LENGTH RANGE - 24" - 168"
MAXIMUM STACK WEIGHT - 20,000#
MAXIMUM LIFT & TRANSPORT WEIGHT - 40,000#
MAXIMUM STACK HEIGHT - 24" (INCLUDING DUNNAGE)
LINE DIRECTION - RIGHT TO LEFT

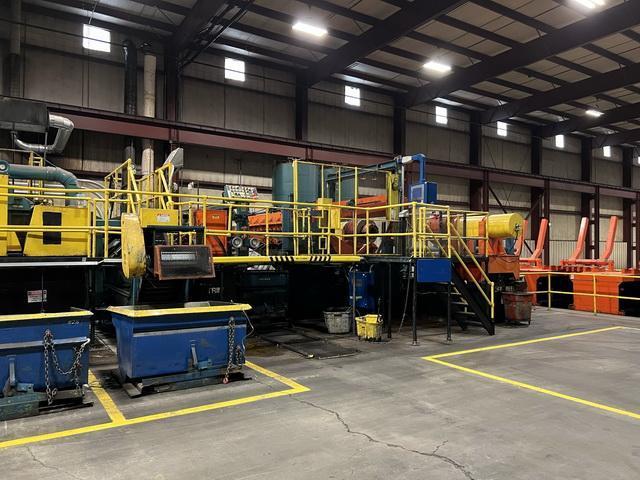

GENERAL LINE COMPONENTS:

(4) STATION TRAVELING COIL STORAGE RACK

V-TYPE TRAVELING COIL CAR W/ HYDRAULIC LIFT
ANTI-TIP GUIDES

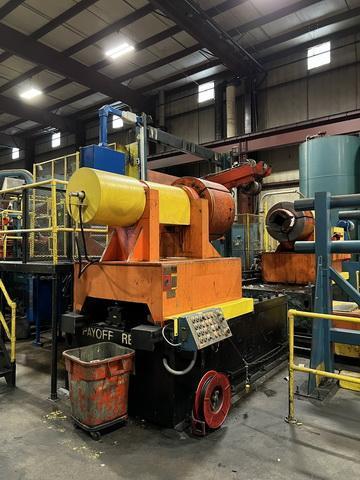

DUAL STUB MANDREL EXPANDING UNCOILER

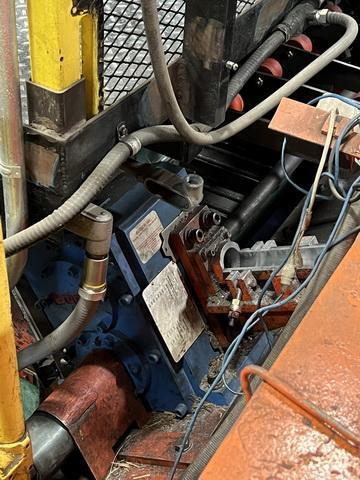

AC MOTOR - 125 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

HOLDDOWN ROLL & PEELER ASSEMBLY

PINCH ROLL AND ENTRY CROP SHEAR ASSEMBLY W/ SCRAP CONVEYOR

EDGE TRIMMING UNIT

BUTECH MDL. SC-250 SCRAP CHOPPERS
(4) AC MOTORS - 30 HP, 1750 RPM & (3) SERIES 2400 MODULAR FLUX VECTOR AC
INVERTERS
(FOR THE PINCH ROLL, SCRAP CHOPPER, ENTRY PINCH ROLL, AND EXIT PINCH ROLL)

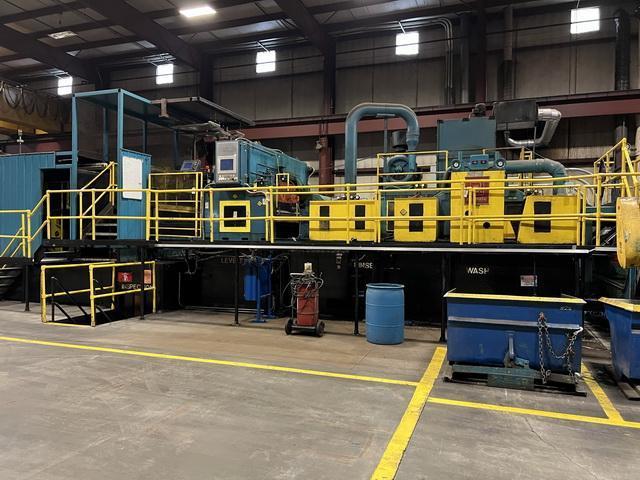

WASHING & RINSE UNIT WITH HIGH PRESSURE PUMP & FILTER SYSTEM

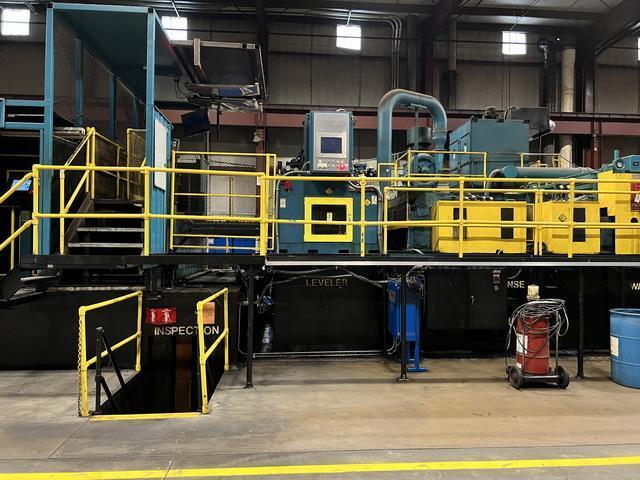

19 ROLL 5HI PRECISION LEVELER
1.9375" ROLL DIAMETER
76" WIDTH
AC MOTOR - 250 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

LOOPING PIT #1 & INSPECTION TABLE

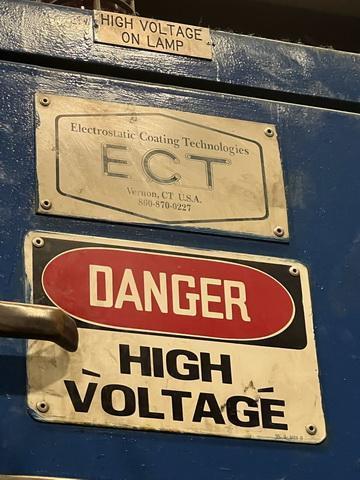

ECT STRIP OILER

PINCH ROLL ASSEMBLY

LOOPING PIT #2

THREADING TABLE

DIGITAL CONTROLLED ROLL FEED
AC MOTOR - 100 HP, 1000 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

UPCUT SHEAR
AC MOTOR - 30 HP, 0-1750 RPM

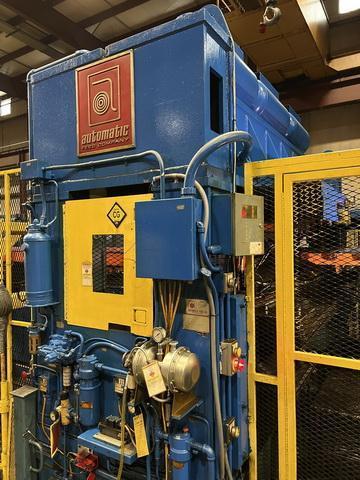

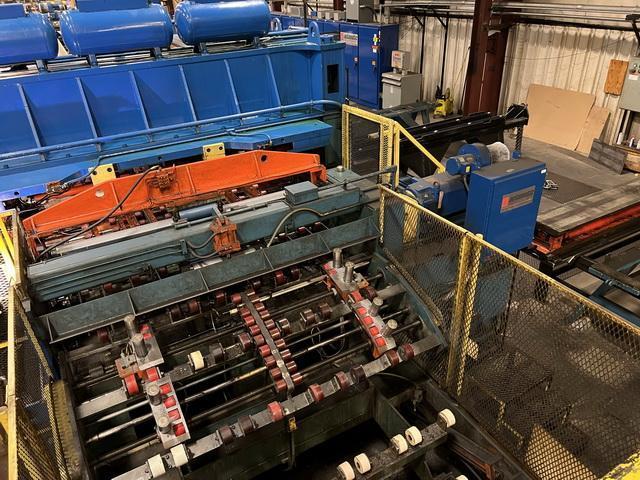

OSCILLATING/TRAPEZOID SHEAR ASSMEBLY
DIES STYLE - CASSSETE TYPE - MULTIPLE DIES AVAILABLE
AC MOTOR - 75 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

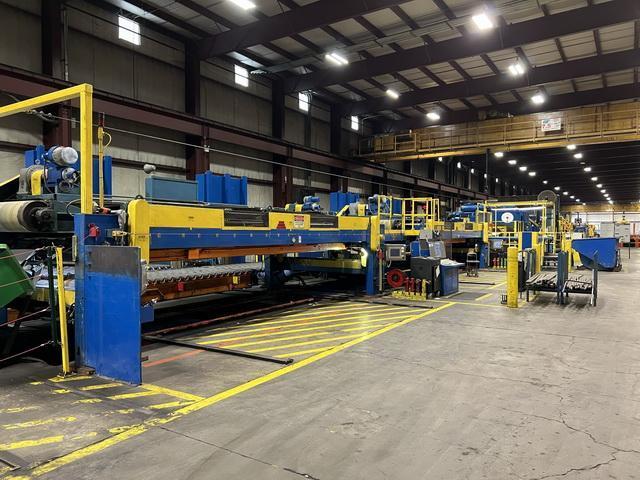

BELT RUNOUT CONVEYOR
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR
EACH STACKER

MAGNETIC BELT CONVEYOR & TWO STATION MAGNETIC STACKER
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR
EACH STACKER
NEW MAGNET SYSTEM INSTALLED IN 2020 WITH FUTURE AREAS FOR VACCUUM CHAMBERS

REJECT PILER

LEFT AND RIGHT DISCHARGE TRANSFER CONVEYOR
AC MOTOR - 15 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

100' + RUNOUT OUT CONVEYOR ON RIGHTHAND (R-L DIRECTION) OF STACKER WITH SCALES

EXTENSIVE ELECTRICAL AND CONTROLS UPGRADE IN 2020 INCLUDING:

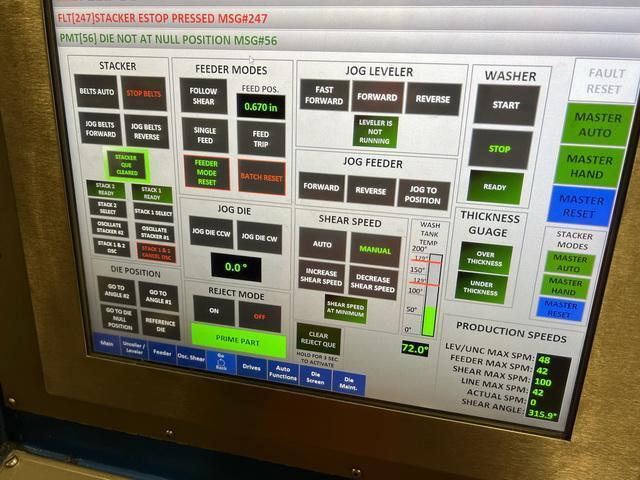

NEW ALLEN BRADLEY PLC UPGRADE FOR LINE AND STACKER WITH CONTROLOGIX WITH

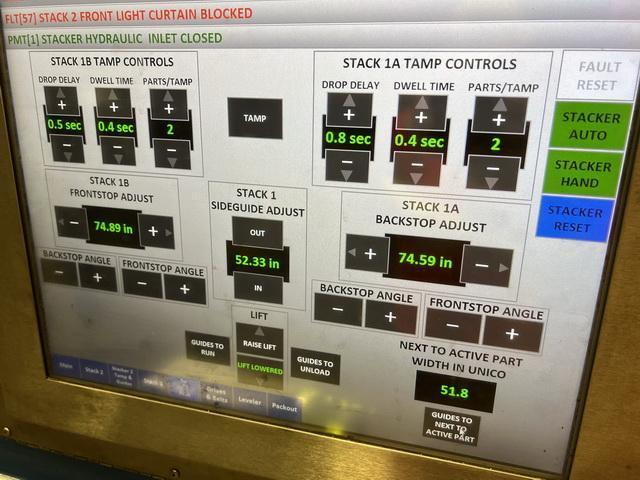

GUARDLOGIX PROCESSORS & DYNICS TOUCHSCREENS
NEW COIL LINE & STACKER ADJUSTMENT FEEDBACK DEVICES
AUTOMATIC FEED COMPANY'S AUTOMATION INTEGRATION MANAGER (AIM) VISUAL BASIC
OPERATOR INTERFACE
NEW SAFETY DEVICES ON COIL LINE AND STACKER
108 NEW MAGNET ASSEMBLIES FOR THE STACKER AND ALLOW ROOM FOR VACCUUM CHAMBERS
IN THE FUTURE
UNICO AC SERVER DRIVES INTEGRATED TRHOUGHOUT THE LINE
UNICO SERIES 4000 SERVO DRIVE CONTROLLERS THROUGHOUT THE LINE
PROVIDE AUTOTHREAD CAPABILITY STARTING AFTER THE CROP SHEAR
