60" x 0.064" x 20,000# Iowa Precision Slear Line

Iowa Precision Slear 1

Stock #



Width 60 inches
Coil Weight 20000 pounds

Equipped With

-Model Number: Iowa Precision Slear 1
-Materials:CRS, Alum, Galv, Pre-Paint
-Min./Max. Coil Width: 6" - 60"
-Thickness Range: 0.015" - 0.064"
-Maximum Shear: 45,000 PSI
-Maximum Yield: 45,000 PSI
-Maximum Coil Weight: 20,000#
-Coil I.D.: 20" - 24" (Nominal)
-Maximum Coil O.D.: 64"
-Slitting Capacity: Five (5) Cuts of 0.060"/Six (6) Cuts of 0.045"
-Minimum Slit Width: 3"
-Line Direction: Right to Left
-Stacker Length: 1 - 12'
-Maximum Bundle: 18" x 10,000# @ 12'
-Mode of Operation: Front Loop
-Line Speed: 20 - 200 FPM / 20-150 FPM (using Scrap Winders)
-Required Area: 20' x 70'
-Required Power: 160 Amps
Consisting of the following:
 -Entry Turnstile:
  Four (4) Arms x 20,000# per arm
  Powered Rotation
  Slotted for C-Hook

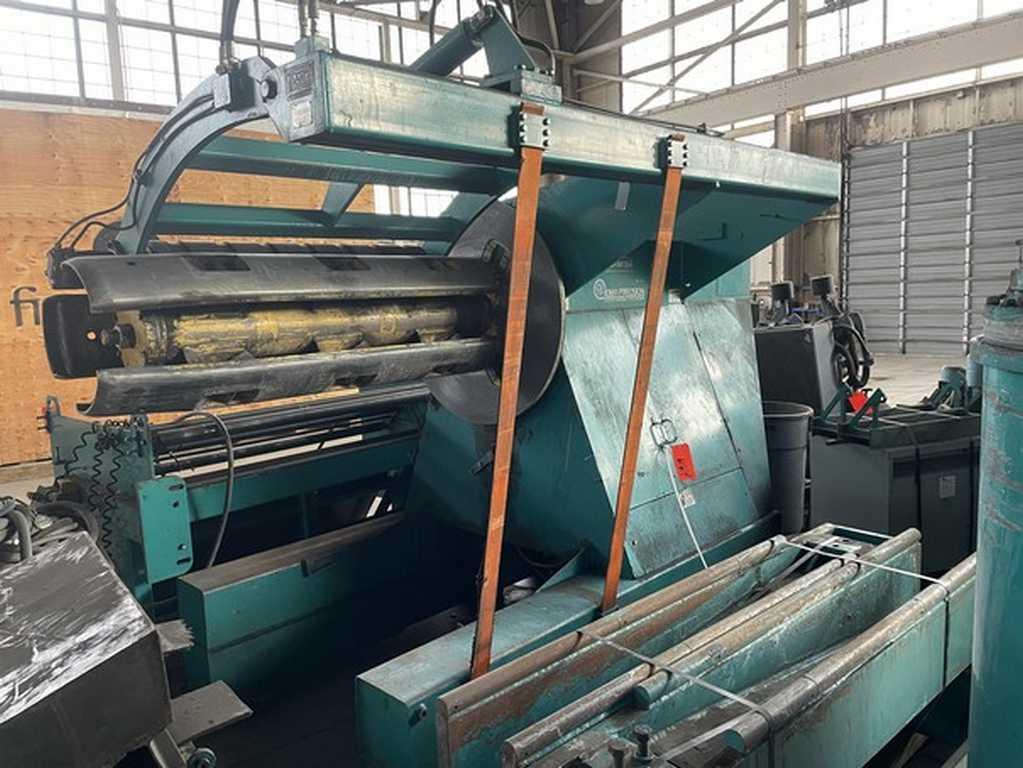

-Entry Coil Car:
  Low Boy Type
  Floor Mounted
  Powered Lift and Traverse
  Mandrel Type
  Powered Expansion
  Feedup Drive
  Holddown with Powered Snubber
  Loop Control with Dancer Arm
  Self Contained Hydraulic Unit
 -Entry Unit:
  Extending Blade Peeler
  Powered Entry Pinch Roll
  Manual Side Guides
-Pit Section:
  Entry/Exit Cascade Rolls with Cross Over Tables
  Sonic Loop Control
  Manual Side Guides

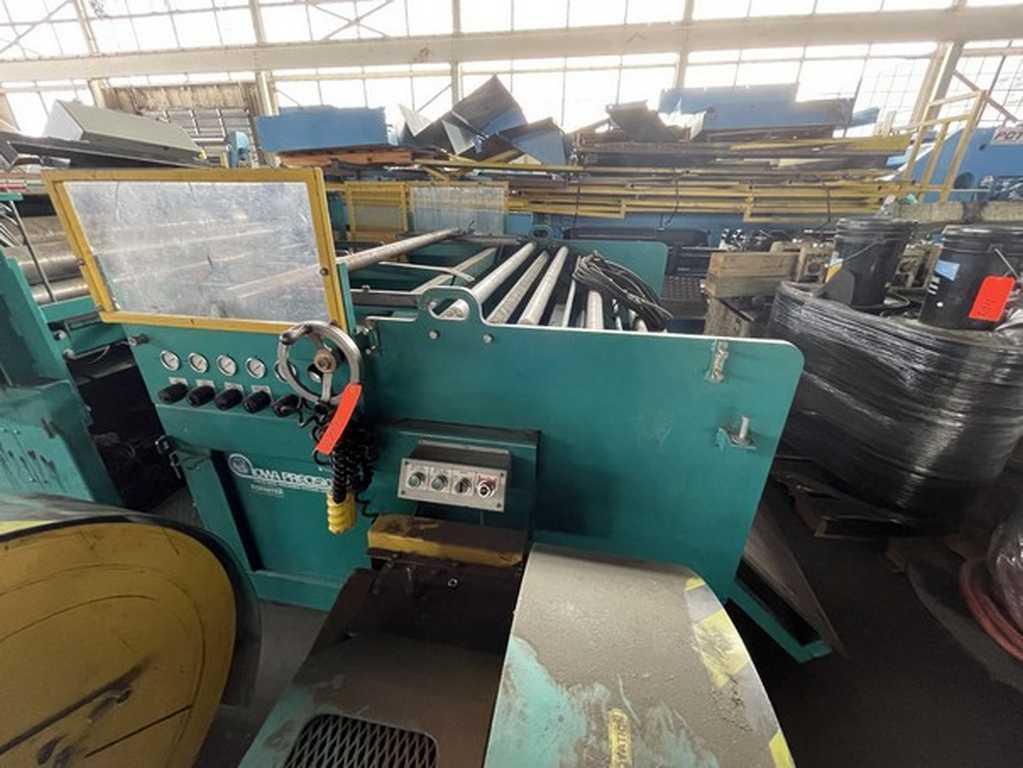

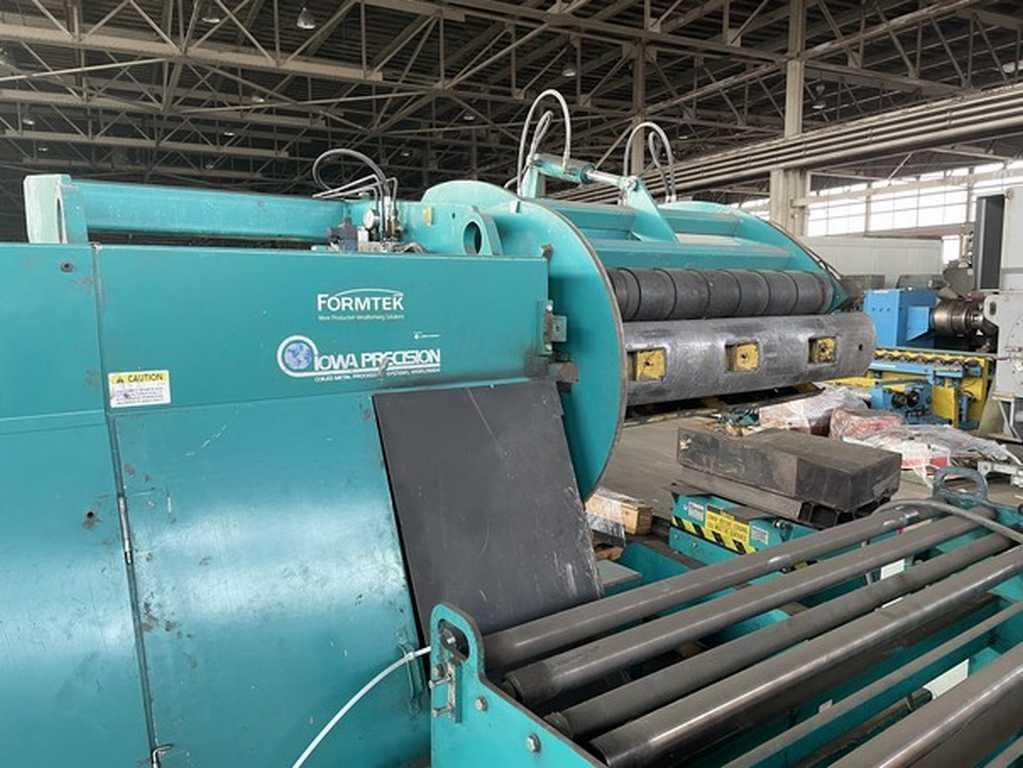

-Slear Unit:
  Powered Entry Pinch Rolls
  Slitter Head with Hub Type Tooling (5" Diameter Arbor)
  Fifteen (15) Slitter Knives
  Powered Pinch Rolls #2
  Flattener with Six (6) Work Rolls in a 3/3 Configuration
  Powered Exit Pinch Rolls
  Down Cut Shear on Traversing Track (Single Rake Blade)
  One (1) Spare Set of Shear Blades

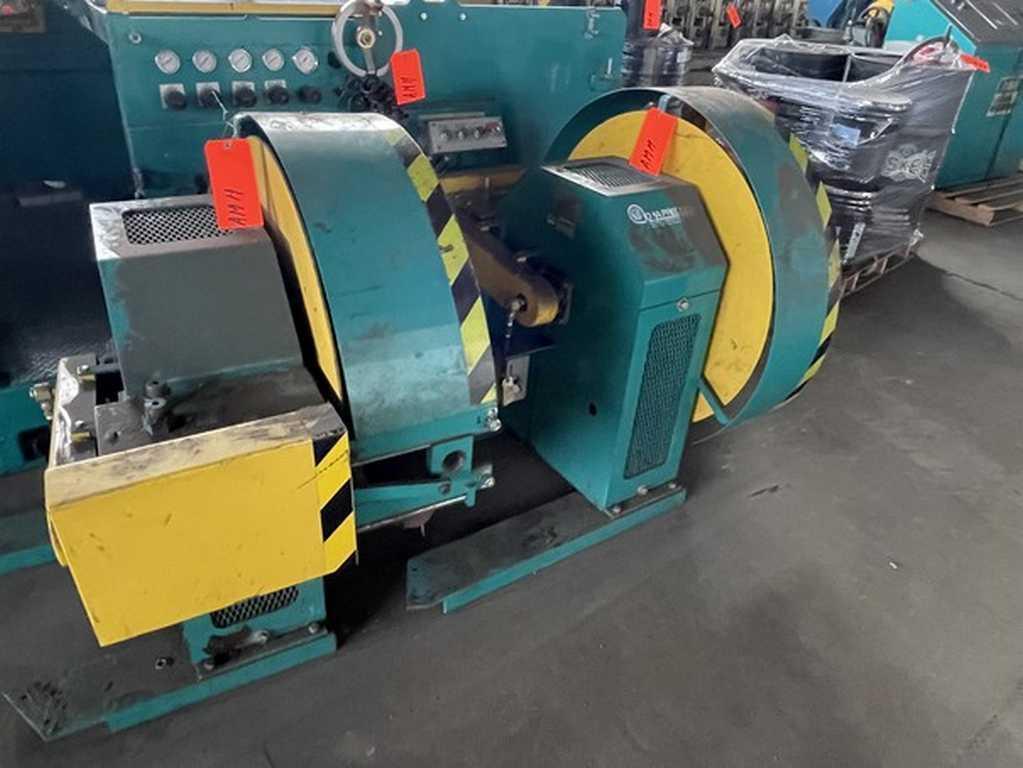

 -Two (2) Scrap Winders:
  Minimum/Maximum Scrap Width:  0.250" - 1"
  Level Wind
  Automatic Scrap Dump
-Stacker (New in 2013):
  Manual Adjustable End Stop
  Manual Adjustable Side Tampers
  Avon Scissor Lift Table with Powered Roller Conveyor Top
  Three (3) Sheet Tampers
  Five (5) Blank Dividers
  Lift Table with Powered Conveyor Top
-Powered Side Discharge Conveyor (New in 2013):
  12' Length
  20,000# Capacity
  Twin Powered Rubber Belts

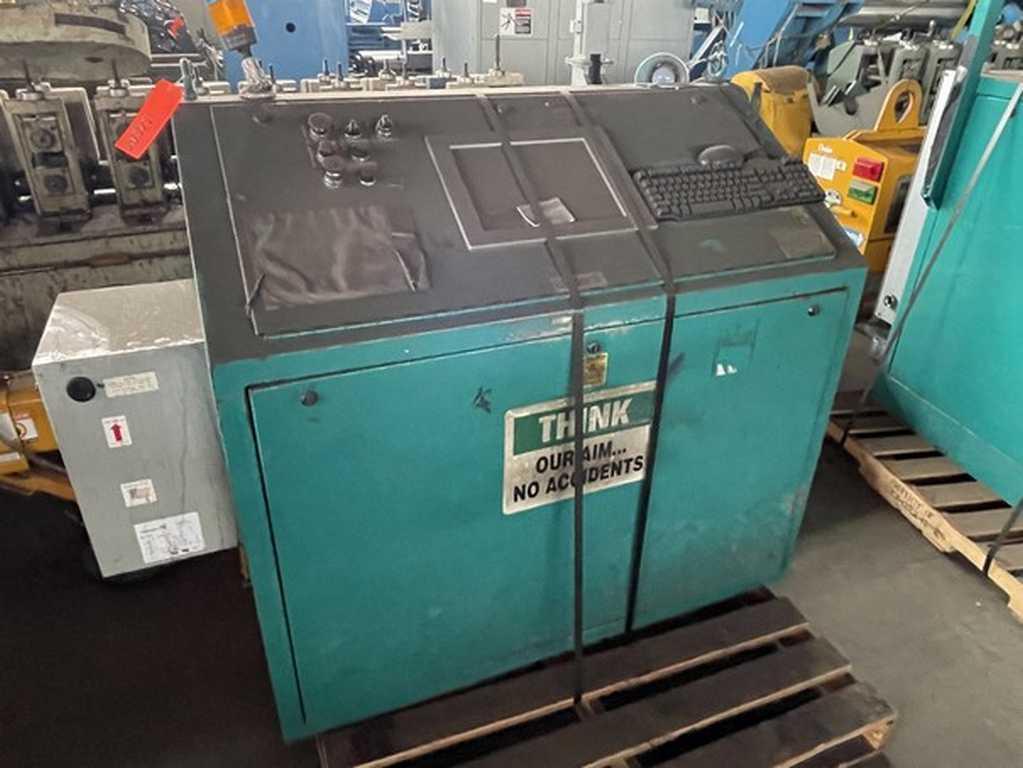

  Main Operators Console with Allen Bradley Touch Screen and PLC
  Aux. Control Consoles
  AC/DC Cabinet
-Misc. Transformers
-Removed and in storage.
