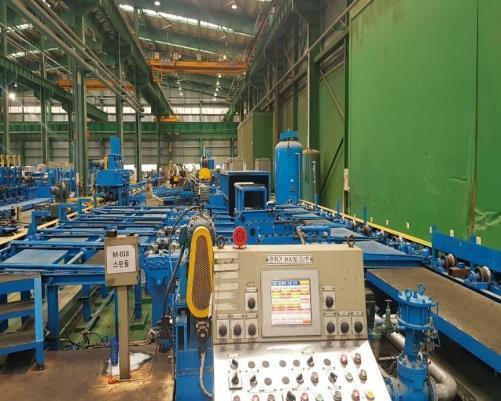

2” Pipe Production Line:
Production Pipe SPEC(KS Standards): SPHT1~3,API-B,SS275,SS400
Thickness(round pipe): 2.0T~5.5T
Material: Hot Rolled Steel
Outer diameter(round pipe): Φ21.7,Φ27.2,Φ34.0,Φ42.7,Φ48.6,
Φ60.5
Skelp width: 63.0~180.5mm
Production volume: 36,000tons(basedon24-hour
day/night operation)
Line Speed: 20~45MPM
Line Direction: Left to Right
Uncoiler:
Facility operation type: Double drum rotary type
Drum type: Hydraulic Cylinder (DOUBLE SWIVEL TYPE)
Coil I.D: Φ680
Coil width: 65mm~240mm
Pinch Roll:
Facility Operation Type: Double Swivel Type
Pinch Roll AC motor output: 37KW 4P 380V 200L HS205SR207
Shear and Welder:
Facility Operation Type: Rotary Shear, TIG Welder type
Torch Voltage: DC 100V
Welding Thickness: 2.8~5.5
Welder type: CO2 Welder(350A)

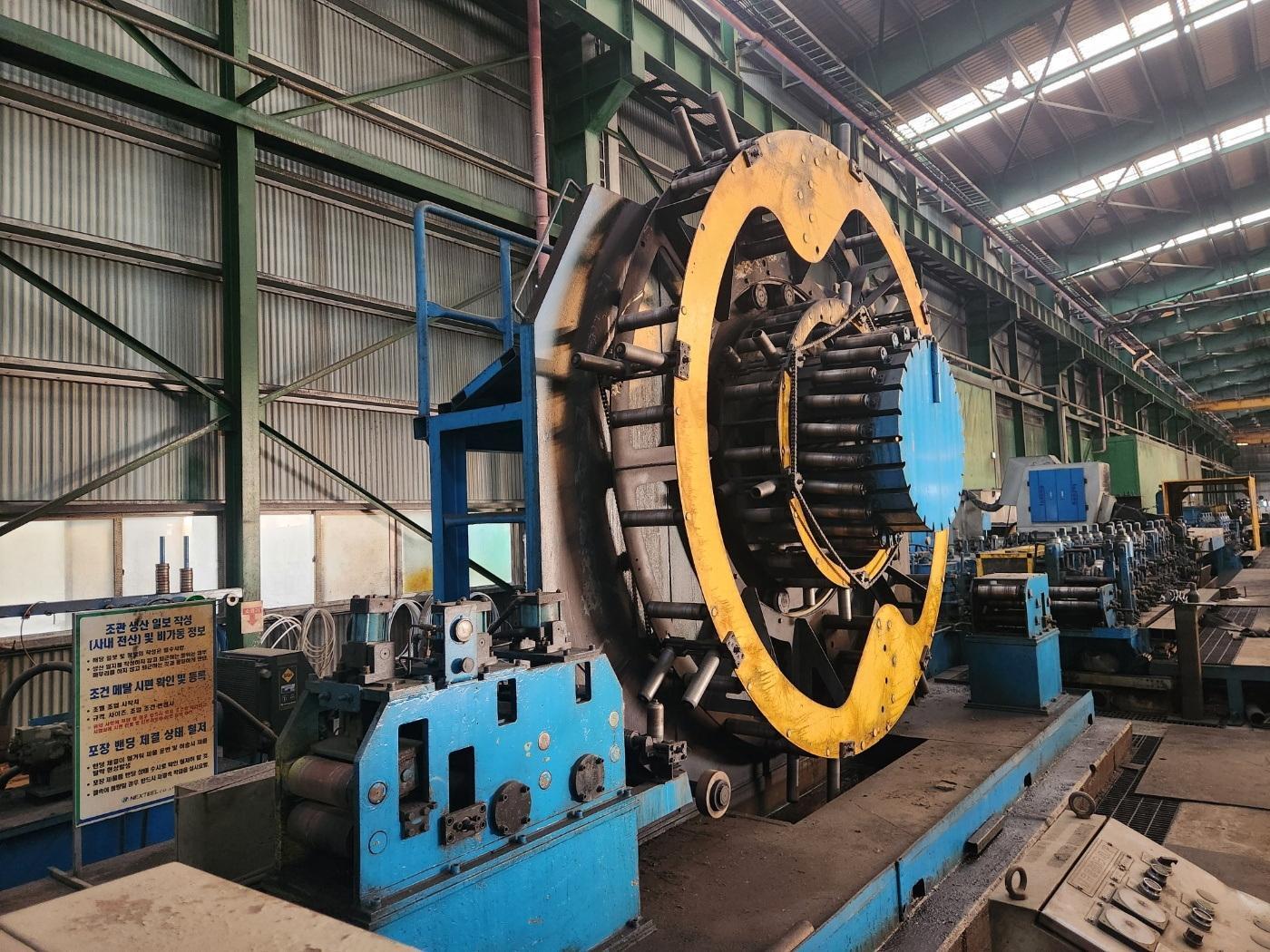

Accumulator:
Facility Operation Type: Spiral Looper
Strip Thickness: 2.8~5.5
Motor type: Hydraulic Motor
Brake type: Power brake DSB-10Kg 2EA
Facility dimensions: L(mm)*W(mm)*H(mm)
5,590*1,820*2,600
Accumulator AC motor output: 18.5KW 4P 220/380V HS183SR202

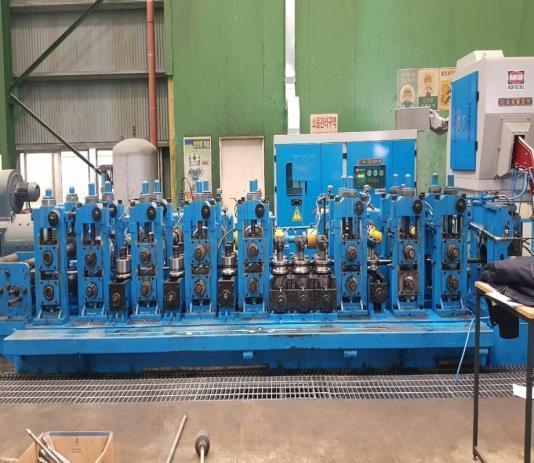

Forming (Breakdown & Finpass):
Facility Operation Type: Roll Stand
Forming Roll DC motor output: 90KW 380V/264A 850/2000 RPM
H.F WELDER:
Manufacturer: Insung Heavy Industries
Facility Operation Type: Solid State, High Frequency Welder
Output power: 400KW
Output Frequency: 300Khz
Input Voltage: 440V
Rapid Cooling Zone:
Facility Operation Type: Pipe rapid cooling(water cooling)
Pump motor output(1): 11KW 4P 380V 23.3A 160M 1760RPM
HSX1604262
5.5KW 4P 220/380V 132S
Pump motor output(2): TEFC 21.3/12.3A 1775RPM
Sizing:
Facility Operation Type: Pipe Sizing
Sizing DC motor output: 90KW 380V 264A 850/2000RPM

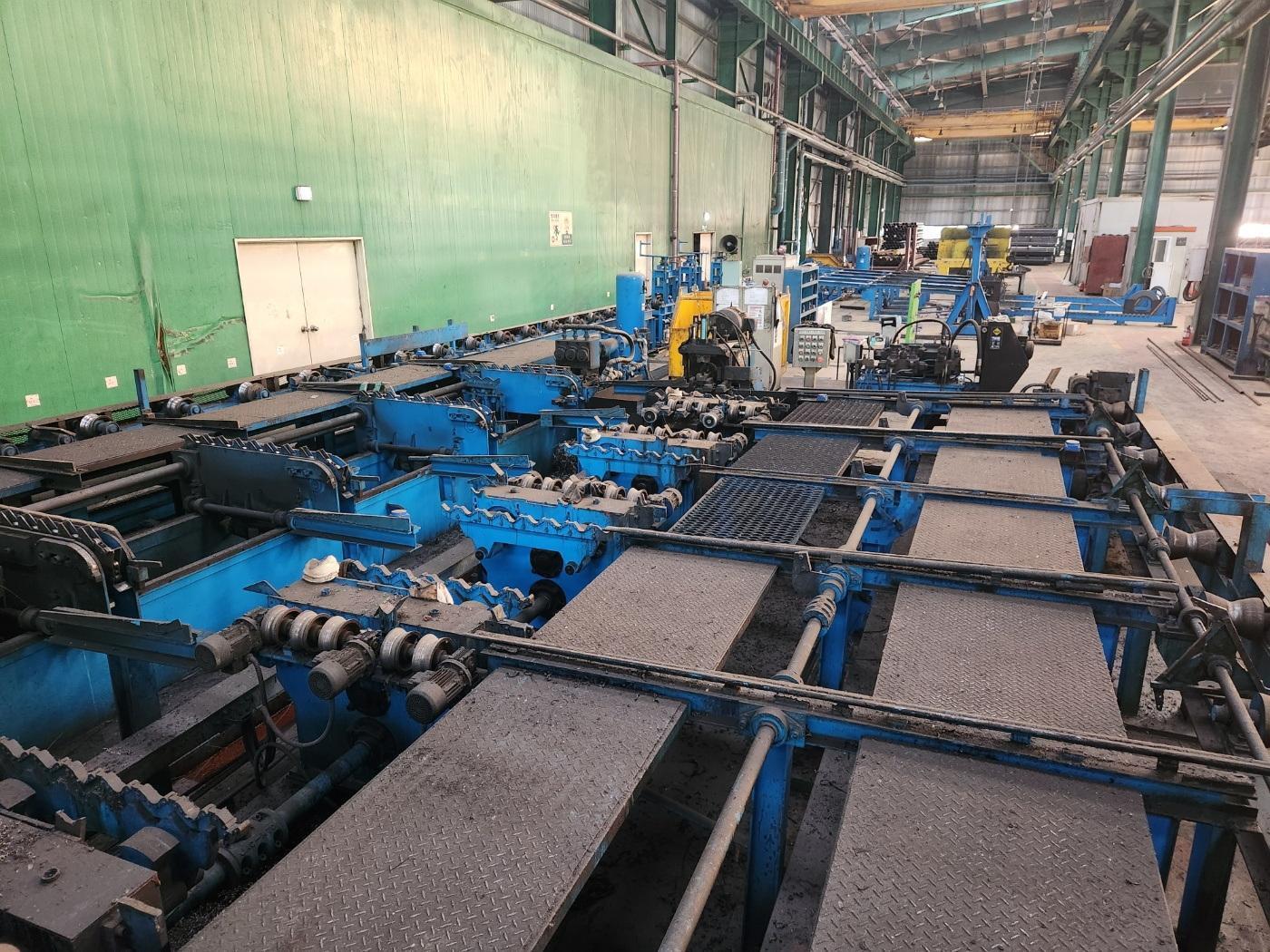

Flying cut-off machine:
Runout Roller Table motor output: 32.2kw 380V 104A TEFC 225S
3550RPM
Saw motor output: 55KW 380V 104A TEFC 225S 3550RPM
END FACING M/C:
End facing spindle motor output: 15KW 4P 220/380V 54/31A
160L 1740RPM TTH-1504
End facing spindle motor reducer: NMRV030 1/10
HYD' unit motor output: 22KW 380V 4P 42.5A 1780RPM
No. 1,2 Head Upper/Lower Clamp
Cylinder Spec: D140H-FA40B-N135 70-140 Kgf/㎠

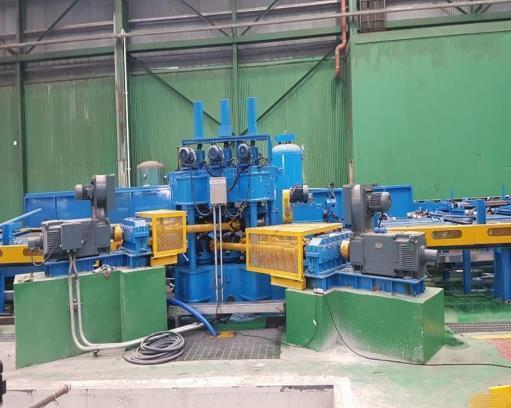

STRAIGHTENING M/C:
Upper Roll DC motor output: LAR-200-LD 34KW 440V 93A 430/1200 RPM
Lower Roll DC motor output: LAR-200-LD 34KW 440V 93A 430/1200 RPM
ECT:
Facility Operation Type: EDDY CURRENT TEST
Demagnetizer Spec: MD-0140T 5KVA 220V 1P 22.7A
PACKING M/C:
Packing Solenoid Valve output: 4F510-15 220V(CKD)
