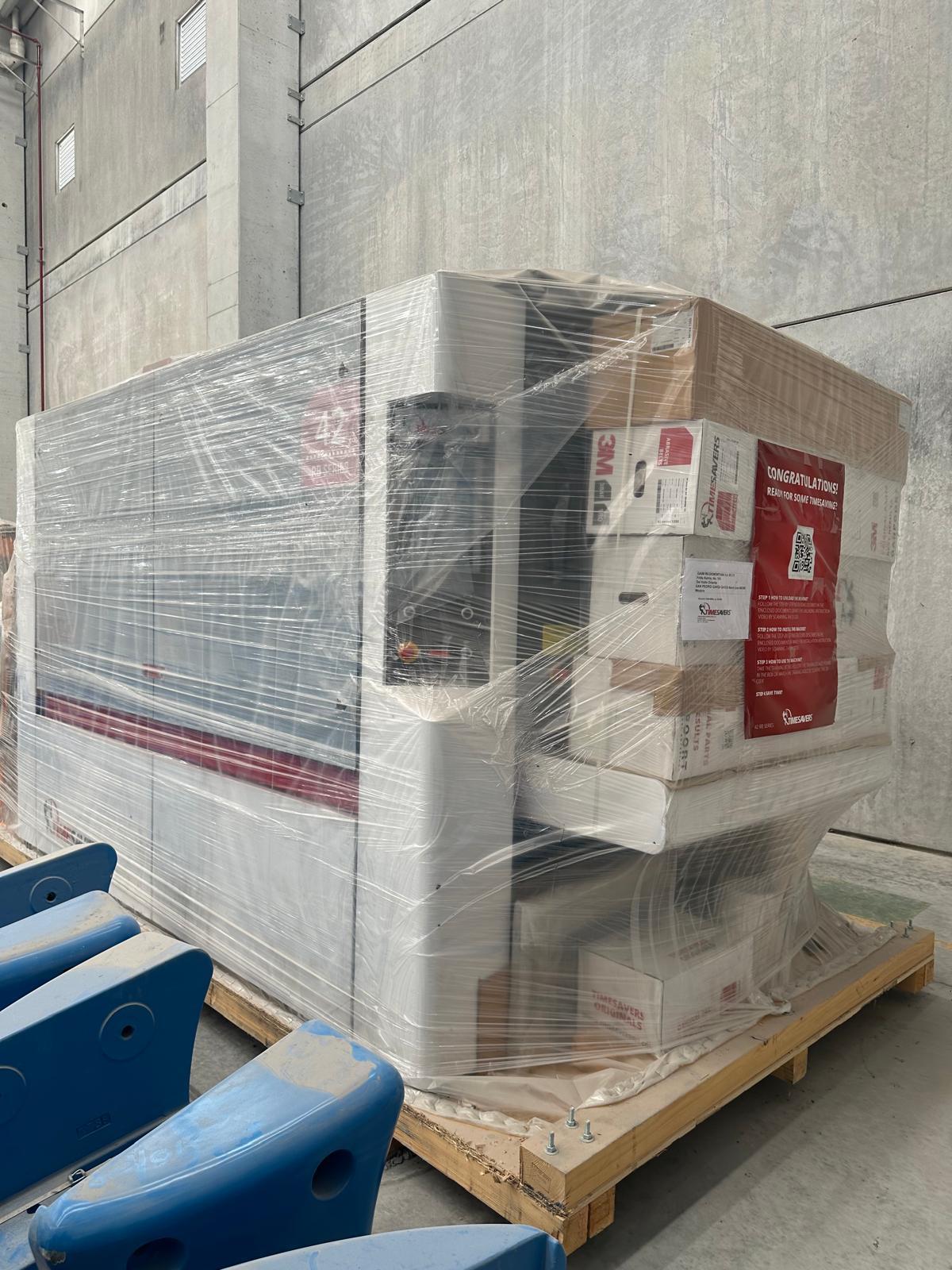

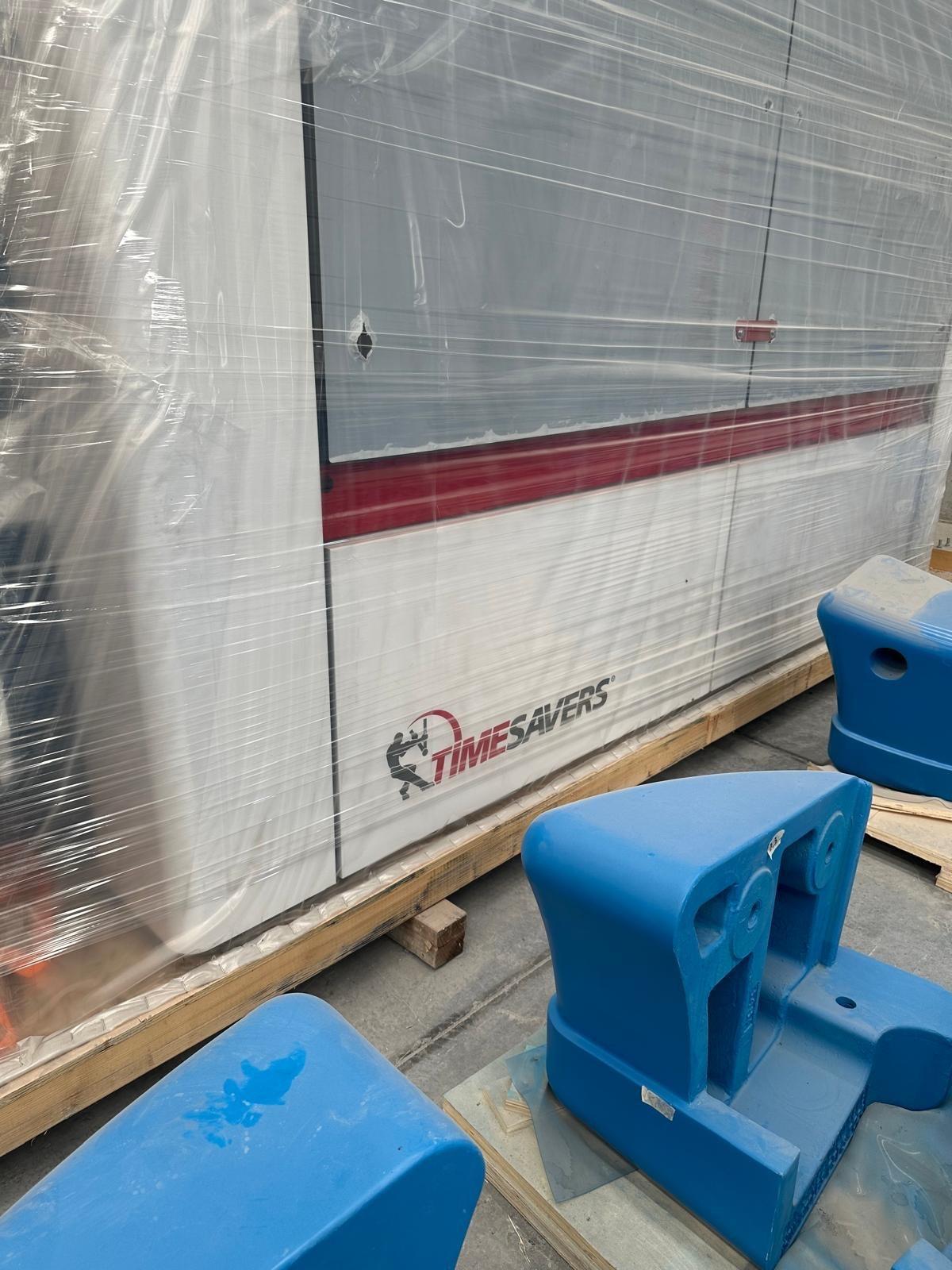

53" (1350mm) Timesavers Wet Roll Brush Deburring Machine (2023)

Brand
TIMESAVERS

Model
Not Specified

Type
Deburring Machines

Stock #
605408A

Condition
Like New

Year
2024

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Equipped With

Manufacturer: Timesavers (Netherlands)

Year: 2023
Model 42 Series 1350WRB

- Max working width: 1,350 mm

- Opening: 0.8-100 mm

- Feed speed: 0.2-8 m/min

- Vacuum pump: 15 kW

- Conveyor motor: 2.6 kW

- Motor (table height adjustment): 0.37 kW

- Electrical: 460V, 60 Hz

- Control voltage: 24 V

- Total power: 37 kW

- Required air pressure: 6 bar

- Total air consumption: 25 l/min

- Dust extraction required: 5,500 m3/h

Machine comes with the Following:

- Set of abrasive belts (384F, 784F, 461F, Scotch Brite VFN)
- Frequency controller on carousel RB head (5-9 rpm)
- Steel wire brushes
- Aluminum oxide brush (#180, 3 & 5 mm)
- Conveyor cleaning brush
- Magnetic track for small parts
- Extended rear table
- Prep outfeed table w/ conveyor cleaning brush)
- 90 degree outfeed table
- Spare parts (brushes, roller, cylinder, valve, electrical eyes, shafts, bearings)

Machine Weight: 13,699lbs
Machine Dimensions: 200.79" W x 88.58" D x 102.36" H

No Files or Attachments
