MANUFACTURER: HAVEN
PRELIMINARY SPECIFICATIONS:
Haven Cutting Capacity:
Round: 1" - 5" (25 - 127 mm)
Square: 3-3/4" (95 mm)
Rectangle: 2" x 4" (50 x 115 mm)
Maximum Wall: .165" (4.2 mm)
Cut Tube Lengths: 4" - 120" (100 - 3000 mm)
Cut Tolerance: +/- .015"
Maximum Cycle Rate: 2200 per Hour
Line Direction: Left to Right
EQUIPPED WITH:
Push Button Controls

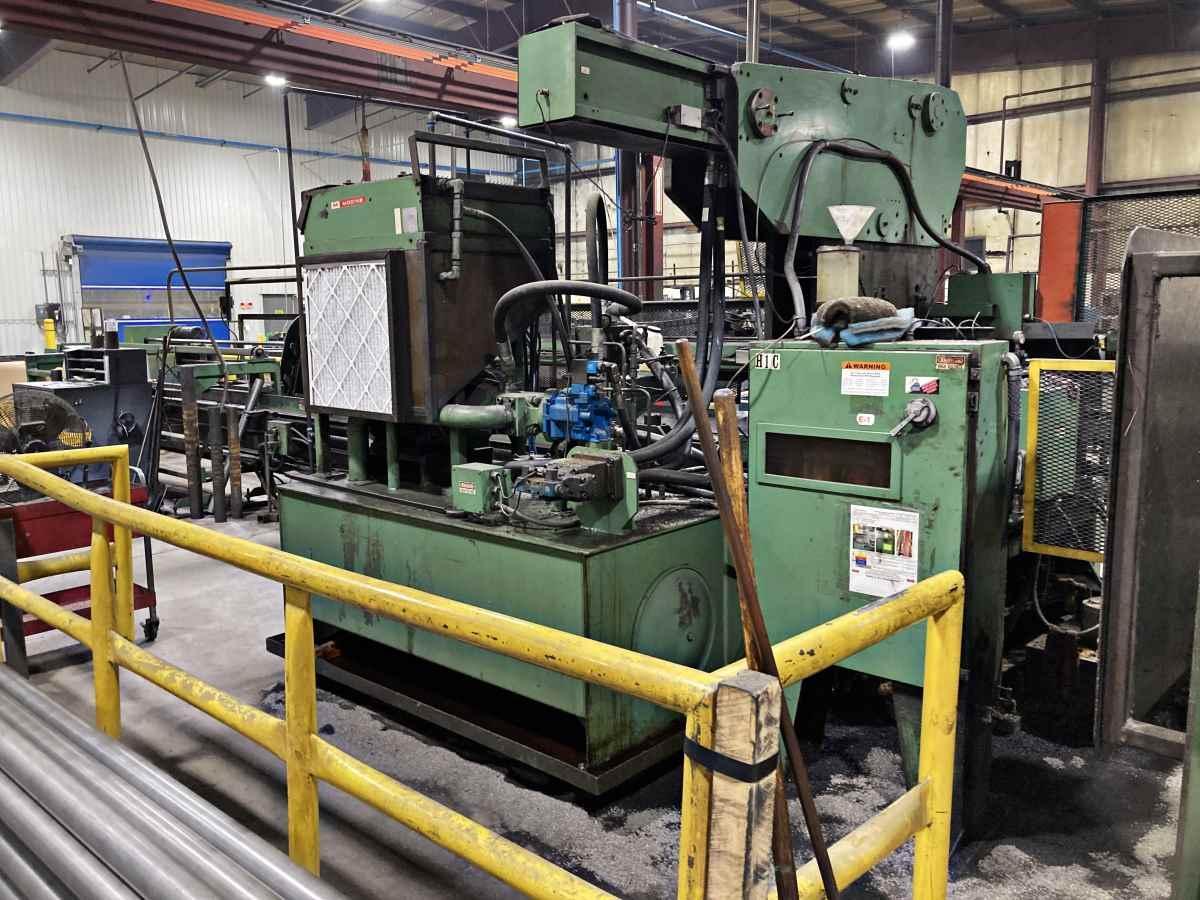

Hydraulic Unit
VICKERS Hydraulic Pump
BIJUR Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
Target Assembly
20' Bundle Loader
Conveyor Table
(2) Runout Tables

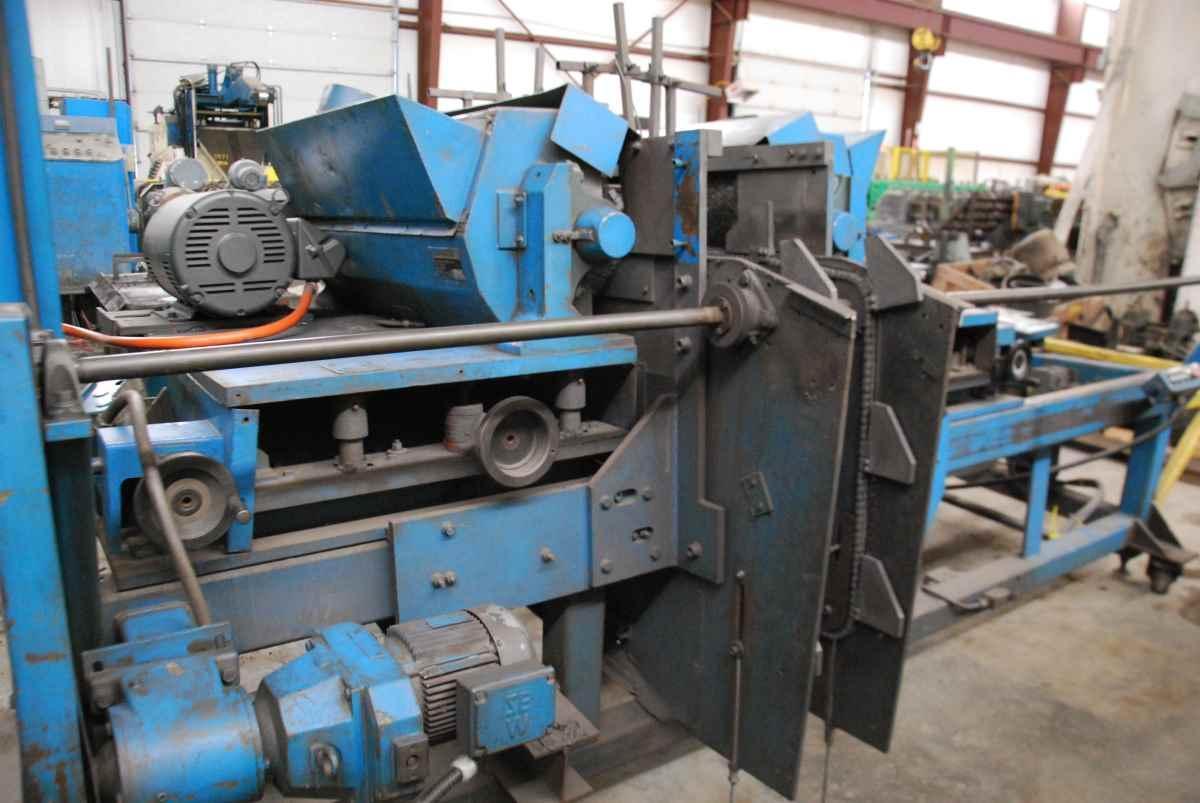

BURRMASTER Debur
